Sack Truck
P Handle
| High Back
✓ Overnight or Worldwide Delivery Available on Request
✓ Fully Assembled and Ready To Use at No Extra Cost!
✓ 12 Month Warranty
✓ For Multi-Buy Discount or Custom Modifications, Call the Team Today!
Product Details
Description
This Sack Truck is a brilliant all purpose sack truck, and is easy to operate even with one hand. This truck is remarkably strong, constructed from 30mm angle iron which coupled with the powder coated frame, gives you a very durable piece of equipment.
Designed for Industrial Use
With a sturdy 20mm solid bar axle, and supplied as standard with pneumatic tires on heavy duty steel centres which make it easy to change and replace wheels and tyres. The wheel is mounted on a fully cased ball bearing to give a smooth ride, long life, and reduces the inertia needed to move the load. Upgrade the tyres from our air filled pneumatic wheel to polyurethane foam tyres which will never puncture.
Heavy Duty Construction
As a part of our Heavy Duty Truck-iT Sack Truck Range, the sack truck frame consists of three main parts, and any part of the sack truck can be swapped out and replaced if your requirements change. This saves you from buying a whole new sack truck, and meaning you can build the perfect truck to suit your needs.
Buying multiple Sack Trucks? Use the code DOCBAG at checkout when you order 6 or more sack trucks from our 1890 or Magliner ranges and receive a free document holder (RRP £19.99) for EACH SACK TRUCK!
Product Videos

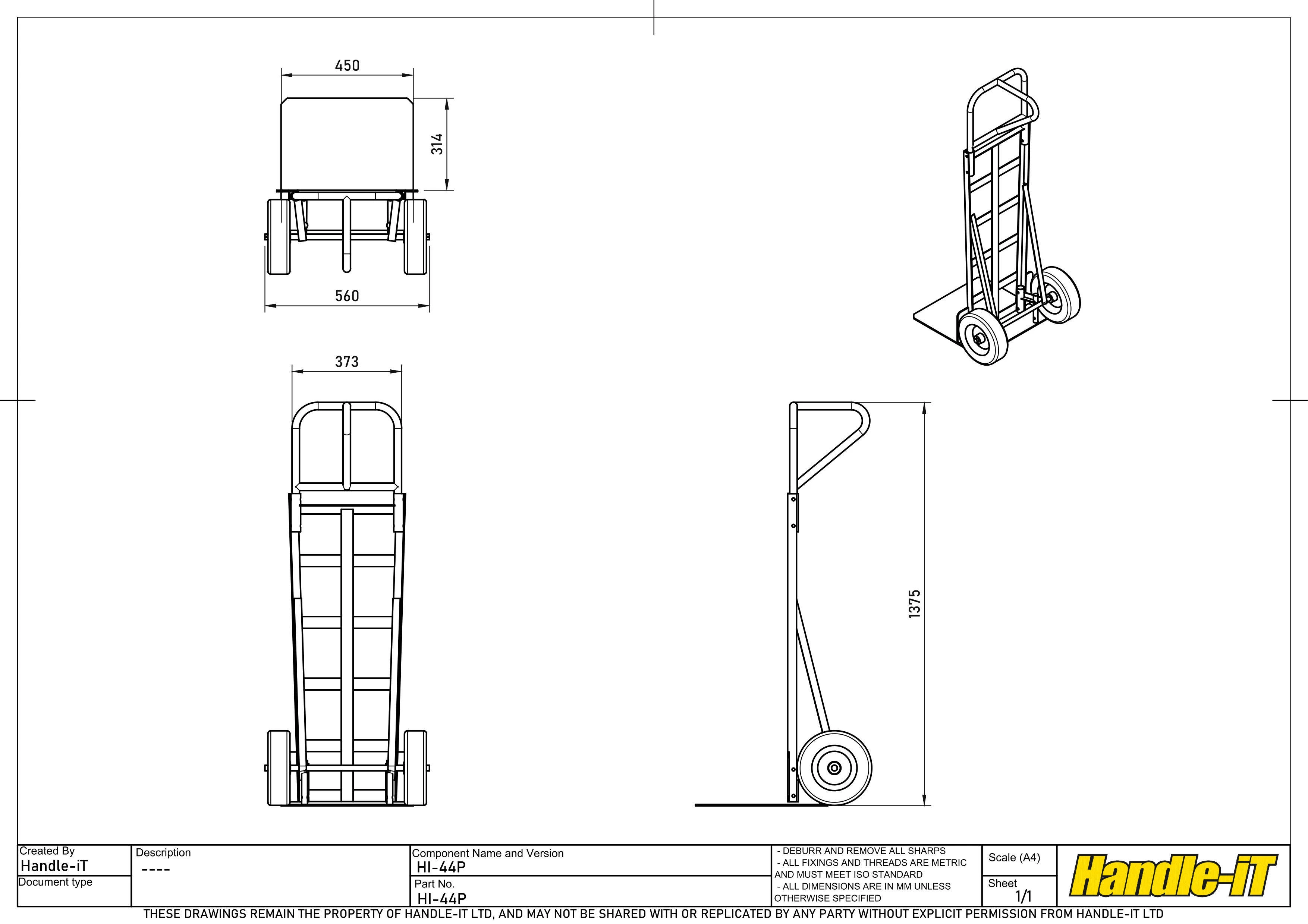

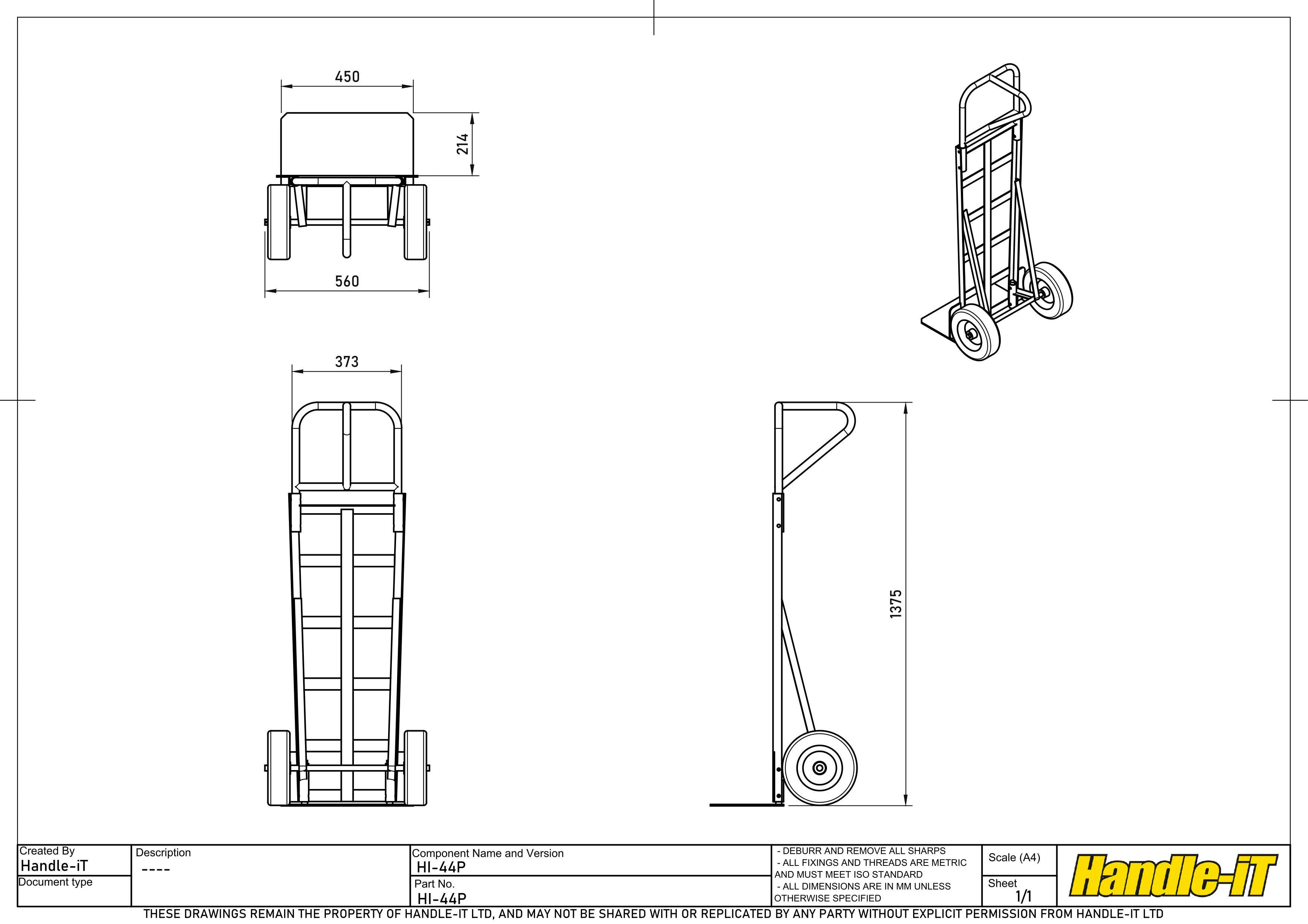

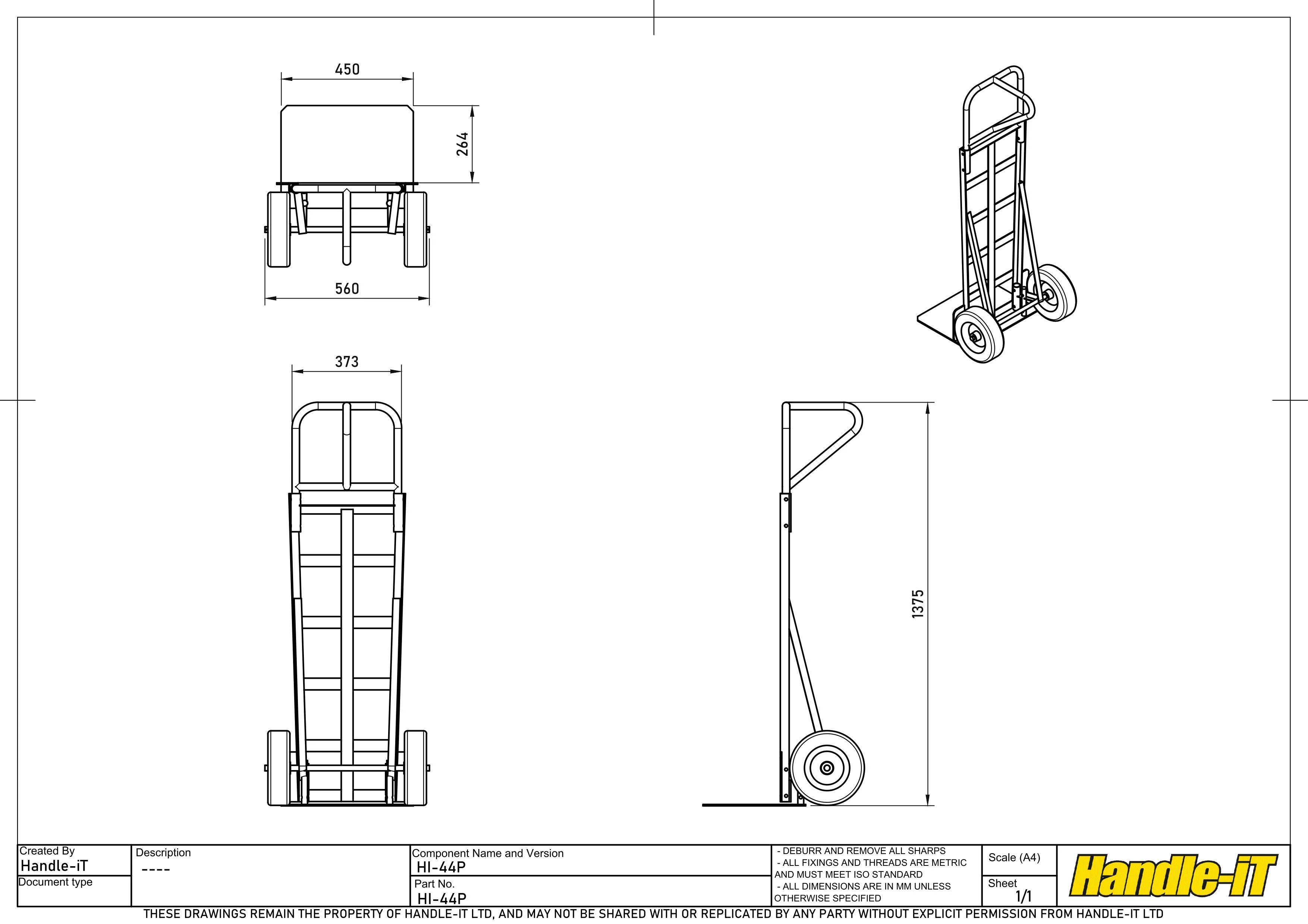

Specification
| Item | Measurement |
|---|---|
| Capacity | 270 kg |
| Overall Height | 1355 mm |
| Overall Width | 560 mm |
| Footplate Size Options | 250mm, 350mm, 450mm |
| Footplate Width | 450 mm |
| Wheel Diameter | 254 mm |
| Wheel Type | Pneumatic or Polyurethane |
Ask A Question
Reviews
We love your feedback!
Options
| Product Code | Wheel Option | Plate Size | Cost Price Ex VAT |
|---|---|---|---|
| HI-42P-PN | Standard - Air Filled Wheels | 250mm | £109.00 |
| HI-43P-PN | Standard - Air Filled Wheels | 350mm | £119.00 |
| HI-44P-PN | Standard - Air Filled Wheels | 450mm | £124.00 |
| HI-42P-PU | Puncture Proof Wheels | 250mm | £144.00 |
| HI-43P-PU | Puncture Proof Wheels | 350mm | £149.00 |
| HI-44P-PU | Puncture Proof Wheels | 450mm | £154.00 |
Product Maintenance
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
| Check |
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Pneumatic Tyres | ||
| Are the tyres fully all inflated equally and at the recommended tyre pressure? | ||
| Is there any wear on valves? | ||
| Are all valve caps in place? | ||
| Are there any bulges? | ||
| Axle Mounted | ||
| Are all end caps and split pins in place? | ||
| Is there lateral play on the wheels? | ||
| Are all foreign bodies removed from the axle? | ||
| Are there are any fractures on the axles? | ||
| Check there are any fractures on the axles supports? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? | ||
| Grips | ||
| Are the grips fixed or tightly on the truck? | ||
| Is the any damage to the grips, splits or crack that may worsen over time? | ||
| If the grips have knuckle guards are they intact? | ||
| Fixings | ||
| Are all the correct fixing all in place? | ||
| Are all the fixings rust free? | ||
| Is there any wear on the fixing holes? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Toe Plate | ||
| Are there any fracture welds on the Foot Plate Or Toe Plate? | ||
| Are there any bends in the toe plate? | ||
| Are the welds where the toe plate meet the frame free from rust? | ||
| Are there any fractures of the welds where the toe plate meets the frame? | ||
| Is there excessive wear on the toe plate? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
Warranty
Product Warranty
Handle-iT's Sack Truck | P Handle | High Back is supplied with a
12 Month Warranty
For more information on warranties at Handle-iT,
Click Here
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Sack Truck
P Handle
| High Back
✓ Overnight or Worldwide Delivery Available on Request
✓ Fully Assembled and Ready To Use at No Extra Cost!
✓ 12 Month Warranty
✓ For Multi-Buy Discount or Custom Modifications, Call the Team Today!
Specification
| Item | Measurement |
|---|---|
| Capacity | 270 kg |
| Overall Height | 1355 mm |
| Overall Width | 560 mm |
| Footplate Size Options | 250mm, 350mm, 450mm |
| Footplate Width | 450 mm |
| Wheel Diameter | 254 mm |
| Wheel Type | Pneumatic or Polyurethane |
Product Details
This Sack Truck is a brilliant all purpose sack truck, and is easy to operate even with one hand. This truck is remarkably strong, constructed from 30mm angle iron which coupled with the powder coated frame, gives you a very durable piece of equipment.
Designed for Industrial Use
With a sturdy 20mm solid bar axle, and supplied as standard with pneumatic tires on heavy duty steel centres which make it easy to change and replace wheels and tyres. The wheel is mounted on a fully cased ball bearing to give a smooth ride, long life, and reduces the inertia needed to move the load. Upgrade the tyres from our air filled pneumatic wheel to polyurethane foam tyres which will never puncture.
Heavy Duty Construction
As a part of our Heavy Duty Truck-iT Sack Truck Range, the sack truck frame consists of three main parts, and any part of the sack truck can be swapped out and replaced if your requirements change. This saves you from buying a whole new sack truck, and meaning you can build the perfect truck to suit your needs.
Buying multiple Sack Trucks? Use the code DOCBAG at checkout when you order 6 or more sack trucks from our 1890 or Magliner ranges and receive a free document holder (RRP £19.99) for EACH SACK TRUCK!
| Product Code | Wheel Option | Plate Size | Cost Price Ex VAT |
|---|---|---|---|
| HI-42P-PN | Standard - Air Filled Wheels | 250mm | £109.00 |
| HI-43P-PN | Standard - Air Filled Wheels | 350mm | £119.00 |
| HI-44P-PN | Standard - Air Filled Wheels | 450mm | £124.00 |
| HI-42P-PU | Puncture Proof Wheels | 250mm | £144.00 |
| HI-43P-PU | Puncture Proof Wheels | 350mm | £149.00 |
| HI-44P-PU | Puncture Proof Wheels | 450mm | £154.00 |
