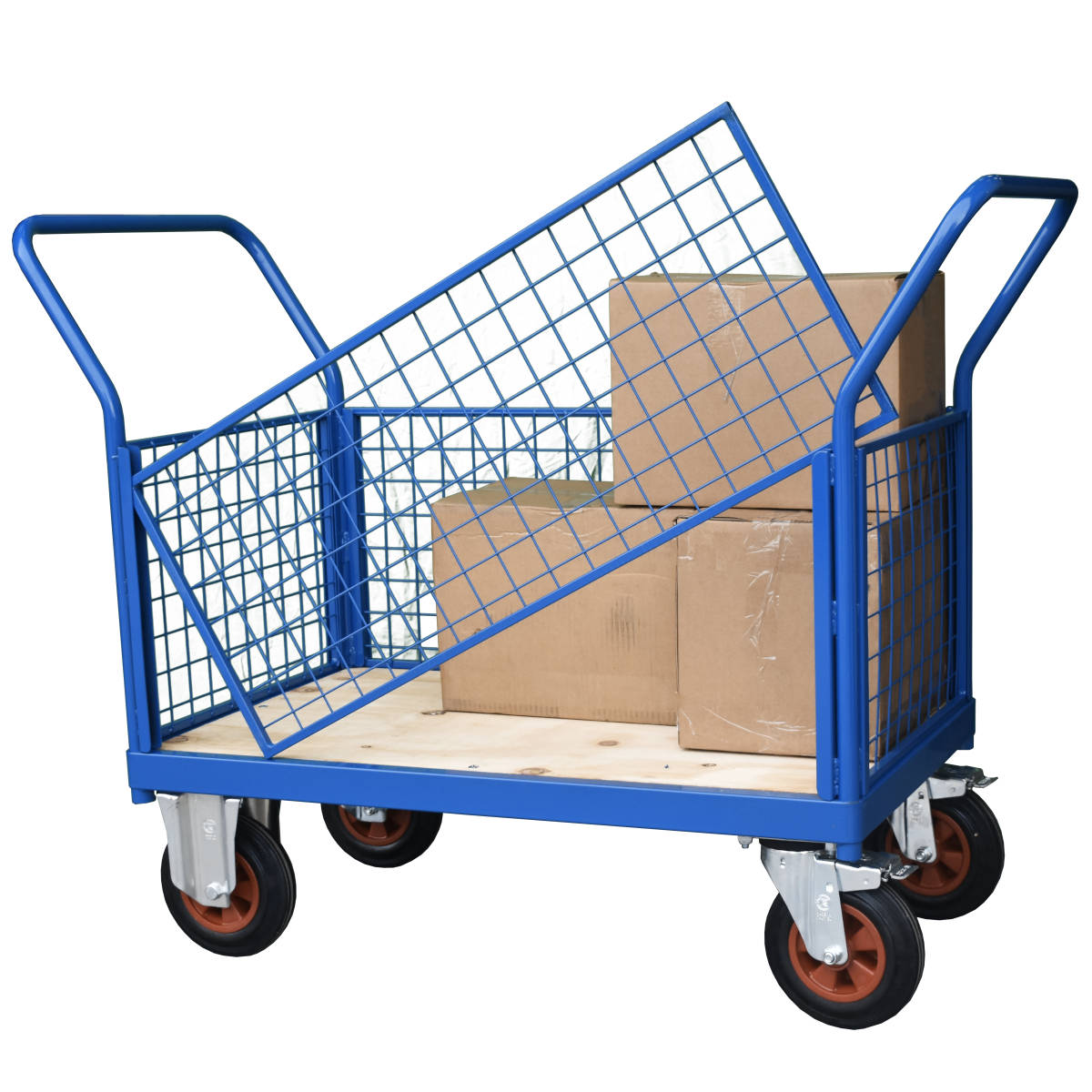

The Mesh Sided Platform Truck or Cage Trolley with 4 Sides is a part of our HI-MT Mesh sided platform truck range and can be made to any size you want. This is a modular design so sides can easily be inserted or removed to make multiple configurations. Designed using state of the art single face laser cutting technology and the highest quality steel. We can also apply plastic, wood or sheet steel for the sides. If there is something that you think we should be offering, make the suggestion to your accounts manager; I am sure we can help you.
This trolley is also available with the specialised Deadman Brake upgrade.The Deadman Brake prevents the trolley from moving when not in use by utilising a simple yet effective breaking rod built into the handle.
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com

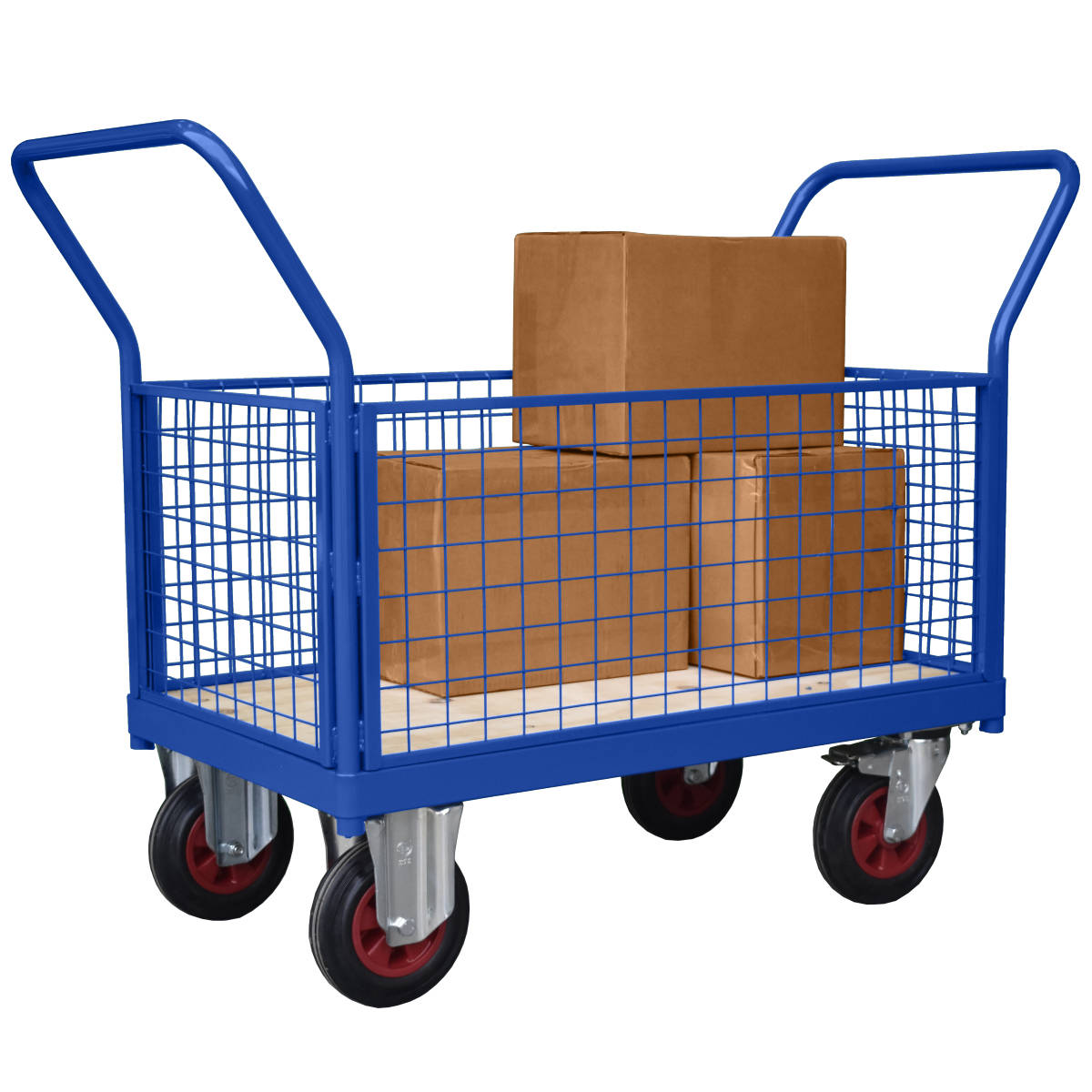

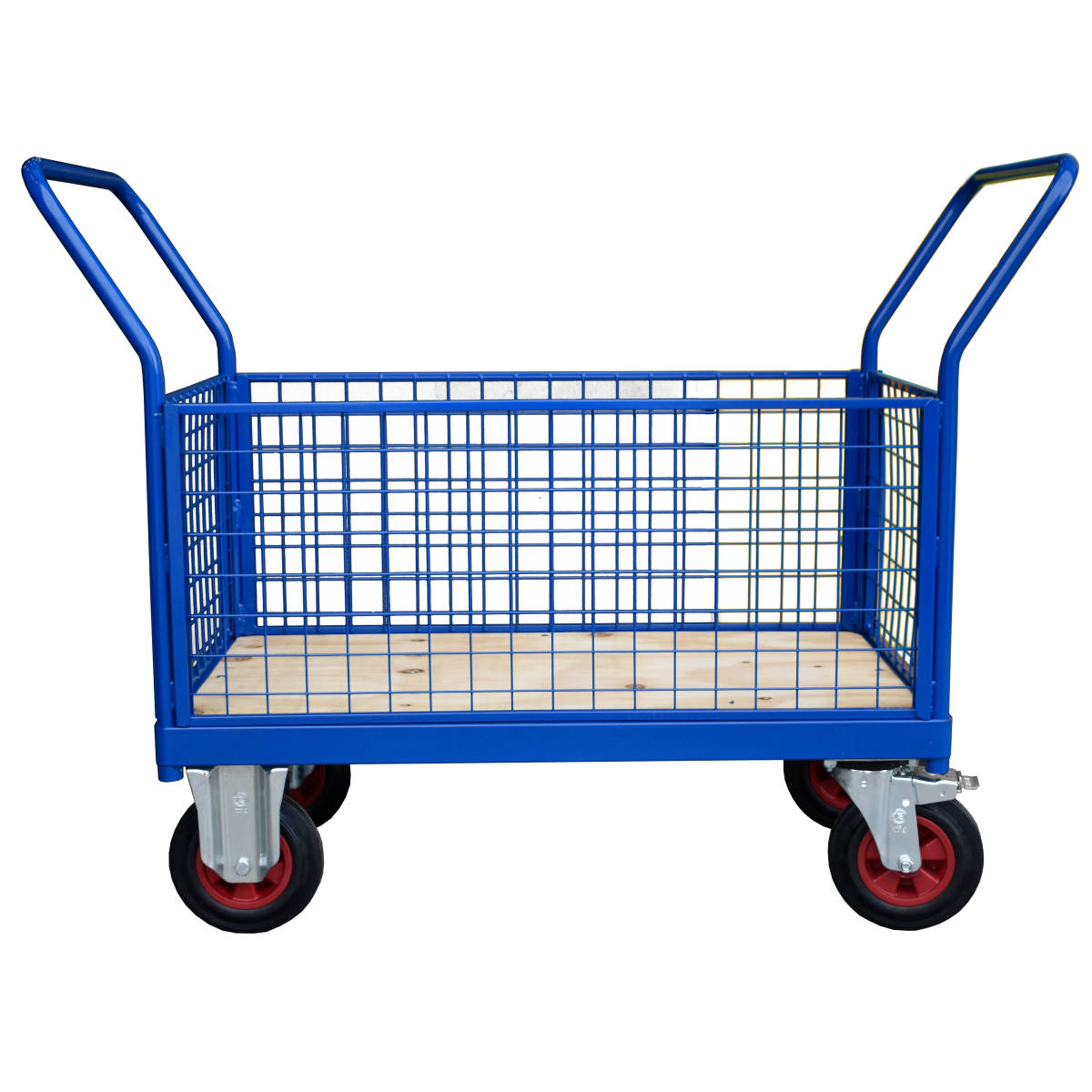

Mesh Sided Platform Truck or Cage Trolley with 4 Sides
Availability:: Next Day Delivery Available
Specification
| Wheel Diameter | 200mm |
| Capacity | 500kg |
| Capacity - Pneumatic Castors | 300kg UDL |
| Finish | Industrial Blue (RAL 5010) |
| Chassis Material | Steel |
| Base Height | 296mm |
| Overall Height | 999mm |
| Side Panel Height | 400mm |
| Side Panel Material | Steel Mesh |
| Item Weight | Up To 50.3KG |
Product Details
The Mesh Sided Platform Truck or Cage Trolley with 4 Sides is a part of our HI-MT Mesh sided platform truck range and can be made to any size you want. This is a modular design so sides can easily be inserted or removed to make multiple configurations. Designed using state of the art single face laser cutting technology and the highest quality steel. We can also apply plastic, wood or sheet steel for the sides. If there is something that you think we should be offering, make the suggestion to your accounts manager; I am sure we can help you.
This trolley is also available with the specialised Deadman Brake upgrade.The Deadman Brake prevents the trolley from moving when not in use by utilising a simple yet effective breaking rod built into the handle.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Bed Size | Wheel Type | Wheel Configuration | Stock | Price (Ex. VAT) |
|---|---|---|---|---|---|
| HI-FBT-1260-4MS400-BCR-2FX2SW | 1200mm x 600mm | Black Rubber Tyre | 2x Fixed, 2x Swivel | In Stock | |
| HI-FBT-1260-4MS400-BCR-2FX2SWB | 1200mm x 600mm | Black Rubber Tyre | 2x Fixed, 2x Swivel with Brake | In Stock | |
| HI-FBT-1260-4MS400-BCR-4SW | 1200mm x 600mm | Black Rubber Tyre | 4x Swivel | In Stock | |
| HI-FBT-1260-4MS400-BCR-4SWB | 1200mm x 600mm | Black Rubber Tyre | 4x Swivel with Brake | In Stock | |
| HI-FBT-1260-4MS400-NYL-2FX2SW | 1200mm x 600mm | 2x Fixed, 2x Swivel | Nylon Wheel Castor | In Stock | |
| HI-FBT-1260-4MS400-NYL-2FX2SWB | 1200mm x 600mm | Nylon Wheel Castor | 2x Fixed, 2x Swivel with Brake | In Stock | |
| HI-FBT-1260-4MS400-NYL-4SW | 1200mm x 600mm | Nylon Wheel Castor | 4x Swivel | In Stock | |
| HI-FBT-1260-4MS400-NYL-4SWB | 1200mm x 600mm | Nylon Wheel Castor | 4x Swivel with Brake | In Stock | |
| HI-FBT-1260-4MS400-GNM-2FX2SW | 1200mm x 600mm | 2x Fixed, 2x Swivel | Castor with Grey Non-Marking Tyres | In Stock | |
| HI-FBT-1260-4MS400-GNM-2FX2SWB | 1200mm x 600mm | 2x Fixed, 2x Swivel with Brake | Castor with Grey Non-Marking Tyres | In Stock | |
| HI-FBT-1260-4MS400-GNM-4SW | 1200mm x 600mm | Castor with Grey Non-Marking Tyres | 4x Swivel | In Stock | |
| HI-FBT-1260-4MS400-GNM-4SWB | 1200mm x 600mm | Castor with Grey Non-Marking Tyres | 4x Swivel with Brake | In Stock | |
| HI-FBT-1260-4MS400-SCR-2FX2SW | 1200mm x 600mm | 2x Fixed, 2x Swivel | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-1260-4MS400-SCR-2FX2SWB | 1200mm x 600mm | 2x Fixed, 2x Swivel with Brake | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-1260-4MS400-SCR-4SW | 1200mm x 600mm | 4x Swivel | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-1260-4MS400-SCR-4SWB | 1200mm x 600mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel with Brake | In Stock | |
| HI-FBT-1260-4MS400-PNC-2FX2SW | 1200mm x 600mm | 2x Fixed, 2x Swivel | Pneumatic Castor | In Stock | |
| HI-FBT-1260-4MS400-PNC-2FX2SWB | 1200mm x 600mm | 2x Fixed, 2x Swivel with Brake | Pneumatic Castor | Currently Unavailable | |
| HI-FBT-1260-4MS400-PNC-4SW | 1200mm x 600mm | 4x Swivel | Pneumatic Castor | In Stock | |
| HI-FBT-1260-4MS400-PNC-4SWB | 1200mm x 600mm | 4x Swivel with Brake | Pneumatic Castor | Currently Unavailable | |
| HI-FBT-1575-4MS400-BCR-2FX2SW | Black Rubber Tyre | 2x Fixed, 2x Swivel | 1500mm x 750mm | In Stock | |
| HI-FBT-1575-4MS400-BCR-2FX2SWB | Black Rubber Tyre | 1500mm x 750mm | 2x Fixed, 2x Swivel with Brake | In Stock | |
| HI-FBT-1575-4MS400-BCR-4SW | Black Rubber Tyre | 1500mm x 750mm | 4x Swivel | In Stock | |
| HI-FBT-1575-4MS400-BCR-4SWB | Black Rubber Tyre | 1500mm x 750mm | 4x Swivel with Brake | In Stock | |
| HI-FBT-1575-4MS400-NYL-2FX2SW | 2x Fixed, 2x Swivel | 1500mm x 750mm | Nylon Wheel Castor | In Stock | |
| HI-FBT-1575-4MS400-NYL-2FX2SWB | 1500mm x 750mm | Nylon Wheel Castor | 2x Fixed, 2x Swivel with Brake | In Stock | |
| HI-FBT-1575-4MS400-NYL-4SW | 1500mm x 750mm | Nylon Wheel Castor | 4x Swivel | In Stock | |
| HI-FBT-1575-4MS400-NYL-4SWB | 1500mm x 750mm | Nylon Wheel Castor | 4x Swivel with Brake | In Stock | |
| HI-FBT-1575-4MS400-GNM-2FX2SW | 2x Fixed, 2x Swivel | 1500mm x 750mm | Castor with Grey Non-Marking Tyres | In Stock | |
| HI-FBT-1575-4MS400-GNM-2FX2SWB | 1500mm x 750mm | 2x Fixed, 2x Swivel with Brake | Castor with Grey Non-Marking Tyres | In Stock | |
| HI-FBT-1575-4MS400-GNM-4SW | 1500mm x 750mm | Castor with Grey Non-Marking Tyres | 4x Swivel | In Stock | |
| HI-FBT-1575-4MS400-GNM-4SWB | 1500mm x 750mm | Castor with Grey Non-Marking Tyres | 4x Swivel with Brake | In Stock | |
| HI-FBT-1575-4MS400-SCR-2FX2SW | 2x Fixed, 2x Swivel | 1500mm x 750mm | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-1575-4MS400-SCR-2FX2SWB | 1500mm x 750mm | 2x Fixed, 2x Swivel with Brake | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-1575-4MS400-SCR-4SW | 1500mm x 750mm | 4x Swivel | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-1575-4MS400-SCR-4SWB | 1500mm x 750mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel with Brake | In Stock | |
| HI-FBT-1575-4MS400-PNC-2FX2SW | 2x Fixed, 2x Swivel | 1500mm x 750mm | Pneumatic Castor | In Stock | |
| HI-FBT-1575-4MS400-PNC-2FX2SWB | 1500mm x 750mm | 2x Fixed, 2x Swivel with Brake | Pneumatic Castor | Currently Unavailable | |
| HI-FBT-1575-4MS400-PNC-4SW | 1500mm x 750mm | 4x Swivel | Pneumatic Castor | In Stock | |
| HI-FBT-1575-4MS400-PNC-4SWB | 1500mm x 750mm | 4x Swivel with Brake | Pneumatic Castor | Currently Unavailable | |
| HI-FBT-2010-4MS400-BCR-2FX2SW | Black Rubber Tyre | 2x Fixed, 2x Swivel | 2000mm x 1000mm | In Stock | |
| HI-FBT-2010-4MS400-BCR-2FX2SWB | Black Rubber Tyre | 2x Fixed, 2x Swivel with Brake | 2000mm x 1000mm | In Stock | |
| HI-FBT-2010-4MS400-BCR-4SW | Black Rubber Tyre | 2000mm x 1000mm | 4x Swivel | In Stock | |
| HI-FBT-2010-4MS400-BCR-4SWB | Black Rubber Tyre | 2000mm x 1000mm | 4x Swivel with Brake | In Stock | |
| HI-FBT-2010-4MS400-NYL-2FX2SW | 2x Fixed, 2x Swivel | Nylon Wheel Castor | 2000mm x 1000mm | In Stock | |
| HI-FBT-2010-4MS400-NYL-2FX2SWB | Nylon Wheel Castor | 2x Fixed, 2x Swivel with Brake | 2000mm x 1000mm | In Stock | |
| HI-FBT-2010-4MS400-NYL-4SW | Nylon Wheel Castor | 2000mm x 1000mm | 4x Swivel | In Stock | |
| HI-FBT-2010-4MS400-NYL-4SWB | Nylon Wheel Castor | 2000mm x 1000mm | 4x Swivel with Brake | In Stock | |
| HI-FBT-2010-4MS400-GNM-2FX2SW | 2x Fixed, 2x Swivel | 2000mm x 1000mm | Castor with Grey Non-Marking Tyres | In Stock | |
| HI-FBT-2010-4MS400-GNM-2FX2SWB | 2x Fixed, 2x Swivel with Brake | 2000mm x 1000mm | Castor with Grey Non-Marking Tyres | In Stock | |
| HI-FBT-2010-4MS400-GNM-4SW | 2000mm x 1000mm | Castor with Grey Non-Marking Tyres | 4x Swivel | In Stock | |
| HI-FBT-2010-4MS400-GNM-4SWB | 2000mm x 1000mm | Castor with Grey Non-Marking Tyres | 4x Swivel with Brake | In Stock | |
| HI-FBT-2010-4MS400-SCR-2FX2SW | 2x Fixed, 2x Swivel | 2000mm x 1000mm | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-2010-4MS400-SCR-2FX2SWB | 2x Fixed, 2x Swivel with Brake | 2000mm x 1000mm | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-2010-4MS400-SCR-4SW | 2000mm x 1000mm | 4x Swivel | Steel Centre Castor with Black Rubber Tyre | In Stock | |
| HI-FBT-2010-4MS400-SCR-4SWB | 2000mm x 1000mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel with Brake | In Stock | |
| HI-FBT-2010-4MS400-PNC-2FX2SW | 2x Fixed, 2x Swivel | 2000mm x 1000mm | Pneumatic Castor | In Stock | |
| HI-FBT-2010-4MS400-PNC-2FX2SWB | 2x Fixed, 2x Swivel with Brake | 2000mm x 1000mm | Pneumatic Castor | Currently Unavailable | |
| HI-FBT-2010-4MS400-PNC-4SW | 2000mm x 1000mm | 4x Swivel | Pneumatic Castor | In Stock | |
| HI-FBT-2010-4MS400-PNC-4SWB | 2000mm x 1000mm | 4x Swivel with Brake | Pneumatic Castor | Currently Unavailable |
- Wheel Diameter:
- 200mm
- Capacity:
- 500kg
- Capacity - Pneumatic Castors:
- 300kg UDL
- Finish:
- Industrial Blue (RAL 5010)
- Chassis Material:
- Steel
- Base Height:
- 296mm
- Overall Height:
- 999mm
- Side Panel Height:
- 400mm
- Side Panel Material:
- Steel Mesh
- Item Weight:
- Up To 50.3KG
There is no maintenance checklist for this product.
If you have any questions regarding care, please contact us.
