The Chair Moving Trolley HI-FBT-RTC platform truck is a specialised version of our Rough Terrain Flatbed Trolley, designed specifically for moving chairs. Mounted on pneumatic swivel castors at the rear and has a fixed axle with 10 inch (254mm) wheels at the front. the larger wheels give the trolley far more versatility when traversing uneven ground, and also raises the level of the base off the ground. 25mm angle steel cross braces are welded on the underside for increased strength. The truck is then epoxy powder coated in Blue RAL5010 and stove baked for a clean, long lasting finish. You can even choose an alternative colour if you wish. We have shown some of the our standard sizes below; however if the sizes don't suit please speak to your account manager for more details. (Please note that this will mean that the frames will not be laser cut.)
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com
Chair Moving Trolley
Availability:: Made to Order. Contact the team for lead time.
Specification
Capacity | 500kg |
Overall Height | 1042mm |
Wheel Configuration | 2x Axle Mounted, 2x Swivel |
Wheel Size | 200mm / 254mm |
Base Size Options | 1200mm X 600mm, 1500mm X 750mm |
Finish | Industrial Blue RAL 5010 |
Product Details
The Chair Moving Trolley HI-FBT-RTC platform truck is a specialised version of our Rough Terrain Flatbed Trolley, designed specifically for moving chairs. Mounted on pneumatic swivel castors at the rear and has a fixed axle with 10 inch (254mm) wheels at the front. the larger wheels give the trolley far more versatility when traversing uneven ground, and also raises the level of the base off the ground. 25mm angle steel cross braces are welded on the underside for increased strength. The truck is then epoxy powder coated in Blue RAL5010 and stove baked for a clean, long lasting finish. You can even choose an alternative colour if you wish. We have shown some of the our standard sizes below; however if the sizes don't suit please speak to your account manager for more details. (Please note that this will mean that the frames will not be laser cut.)
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
Product Code | Bed Size | Stock | Price (Ex. VAT) |
---|---|---|---|

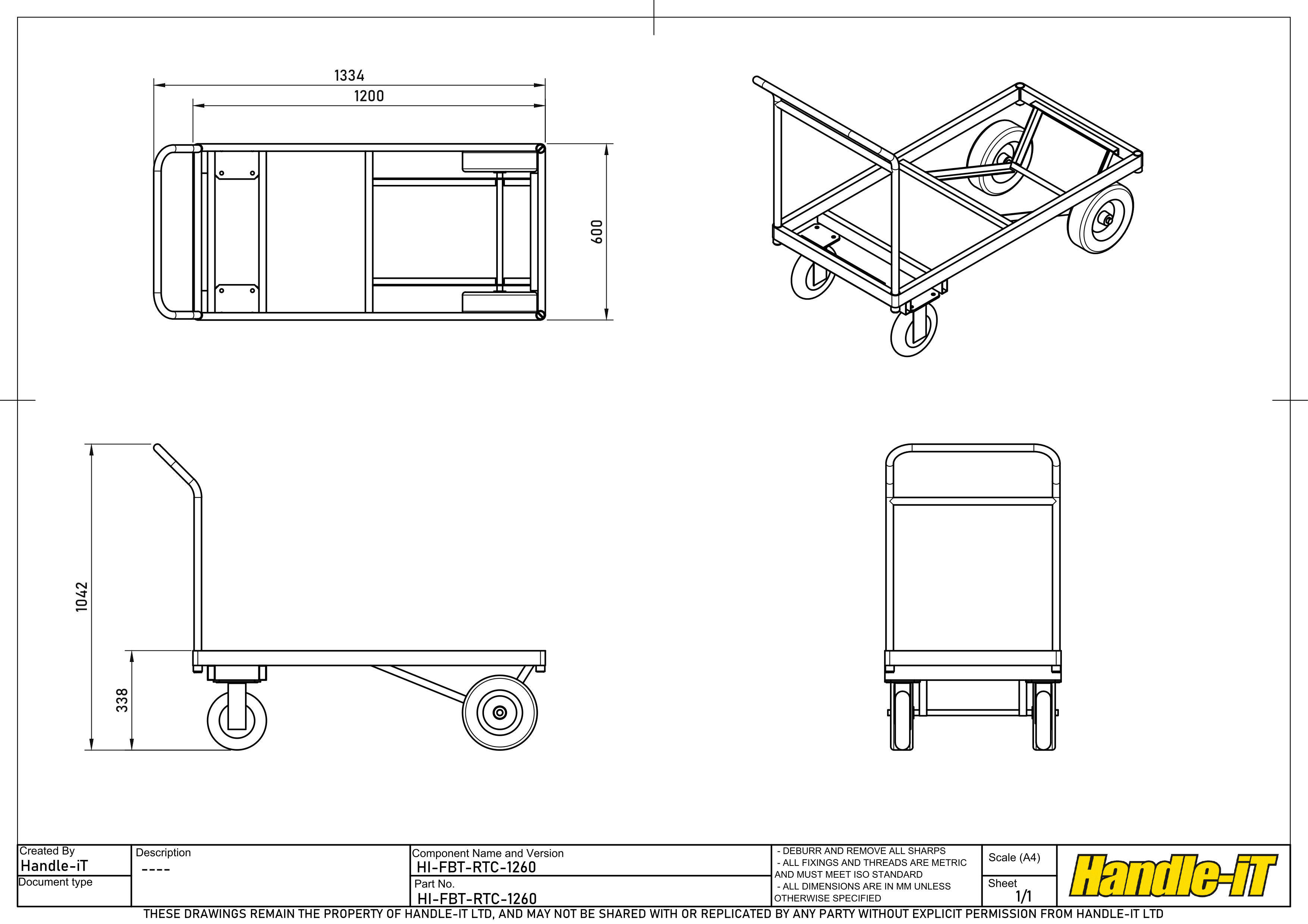

HI-FBT-RTC-1260 | 1200mm x 600mm | In Stock | |

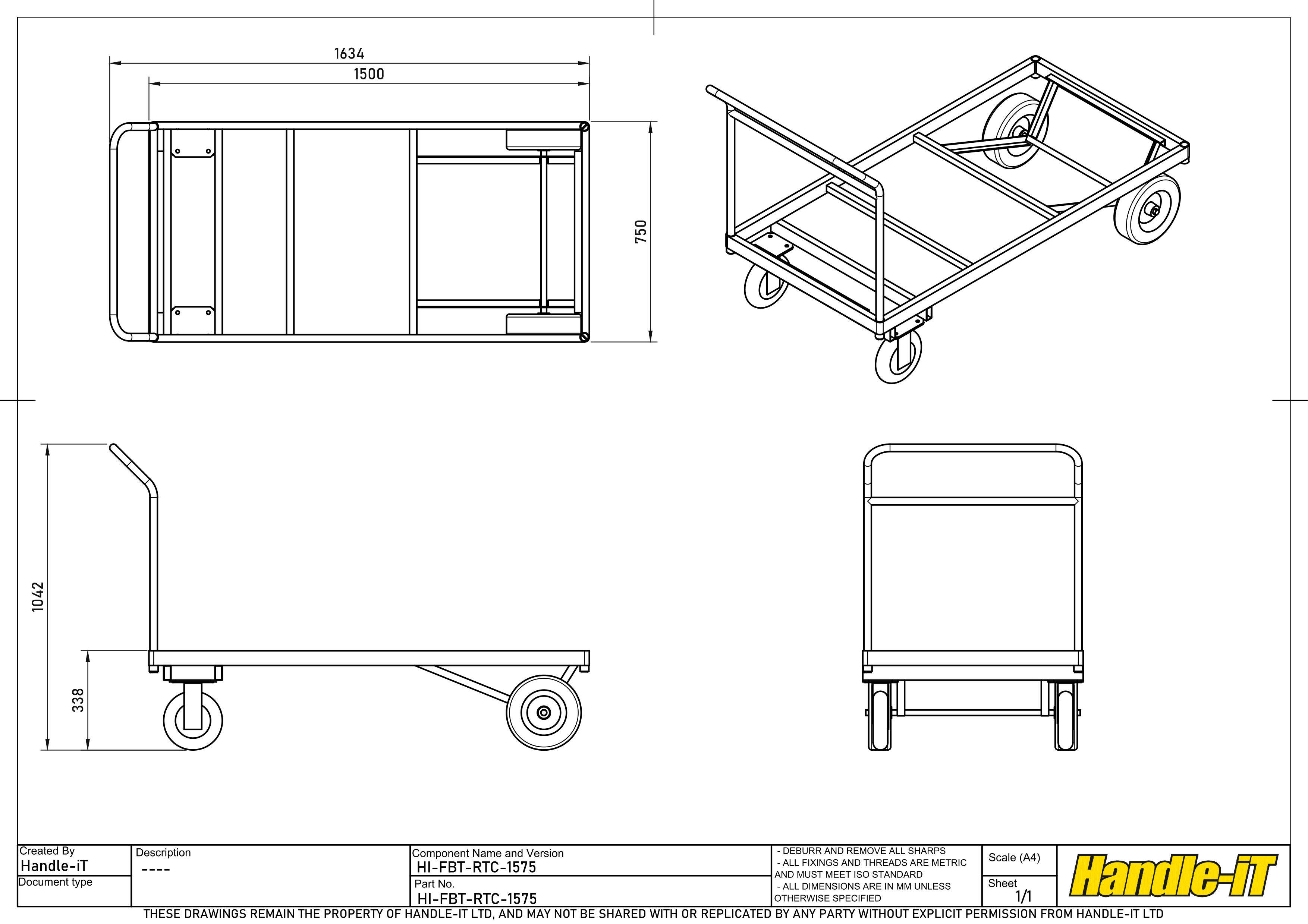

HI-FBT-RTC-1575 | 1500mm x 750mm | In Stock |
- Capacity:
- 500kg
- Overall Height:
- 1042mm
- Wheel Configuration:
- 2x Axle Mounted, 2x Swivel
- Wheel Size:
- 200mm / 254mm
- Finish:
- Industrial Blue RAL 5010
