Economy Flatbed Trolley
Availability:: Next Day Delivery Available
Specification
Capacity | 250kg |
Overall Height | 915mm |

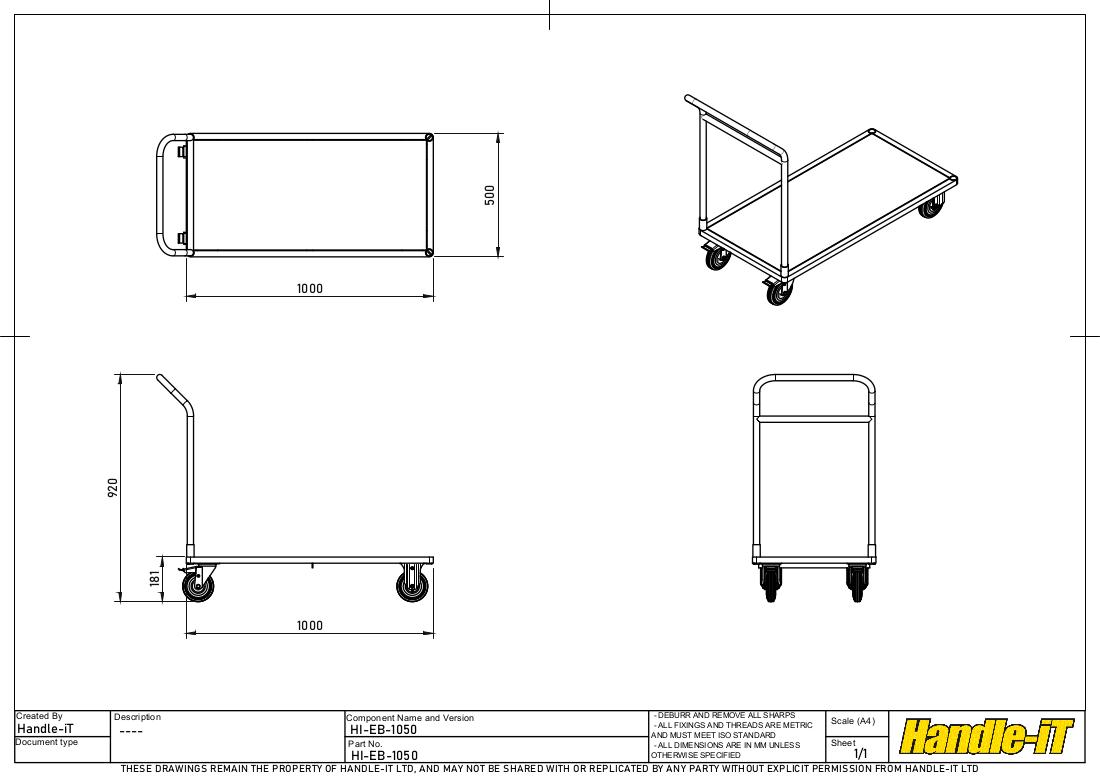

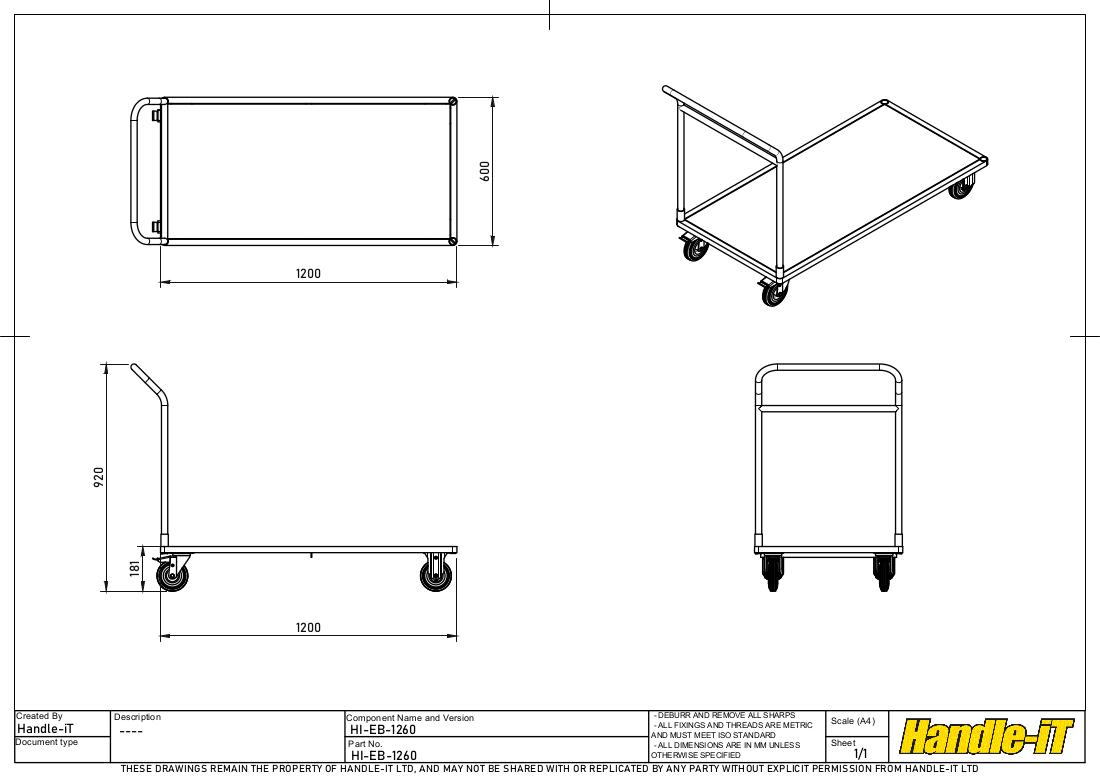

Base Size Options | 1000 x 500mm Or 1200 x 600mm |
Base Height | 165mm |
Wheel Diameter | 125mm |
Wheel Configuration | 2 Fixed, 2 Swivel with Brake |
Wheel Type | Grey Non-Marking |
Chassis Material | Steel |
Finish | Industrial Blue (RAL 5010) |
Item Weight | 18.59 - 22.6KG |
Product Details

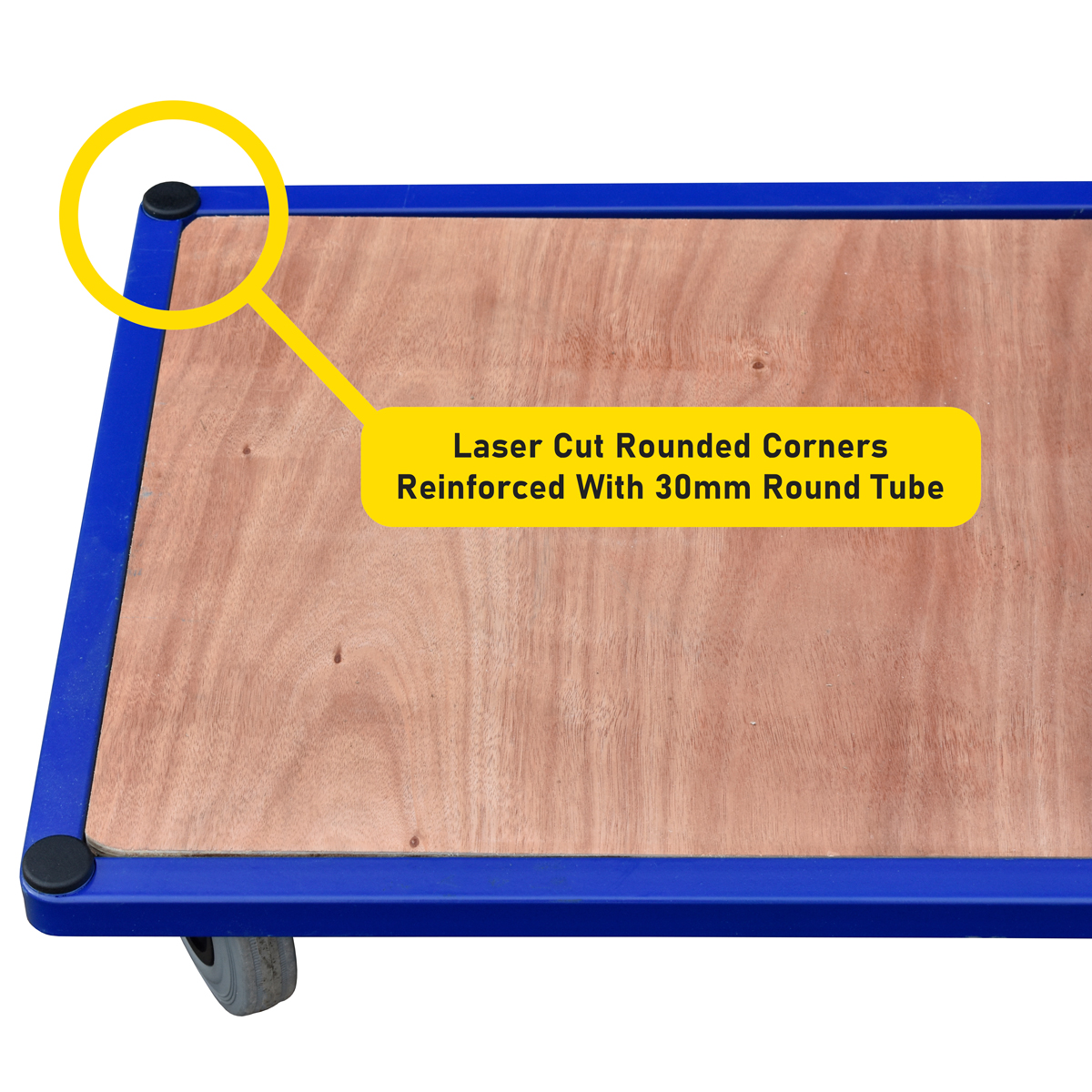

Economy Flatbed Trolley is perfect if you're looking for a low-cost solution to transport goods with ease. With 25 years experience in designing and manufacturing industrial trolleys for some of the biggest companies on the planet, so when it comes to making things to compete with the floods of cheap imported trolleys, we were please to rise to that occasion. Our team of designer got on the case, with the remit of quality, and add some quality….. and this was the outcome. An absolutely bullet-proof basic flatbed trolley, using the same cutting edge manufacturing technique that we use on our premium and premium plus range of heavy-duty platform trucks and trolleys, that produces the main base from a single piece of laser scalloped box section steel, which provides the same beautifully rounded corners that you get on our premium ranges, that provide significantly more strength than a basic mitred corner, with the additional safety benefits that this bring, moreover it safer for your facility as the rounded corners don’t gouge holes in your walls, or ankles, and inlaid with a high quality 18mm WBP Ply wood base. The handle slings back from the truck the expected 120mm as stipulated in BS/EN specifications and sits at a perfect operating height, the handle slots into our standard tried and trusted spigot system, meaning that the handle can be removed when you want to without the use of any tools, and no folding mechanisms, that fail after a couple of months. Mounted on high quality 125mm diameter grey non marking wheels, as standard, with two fixed castors at the front end and two swivel under the handle, the swivel castors are also fitted with brakes, as standard for further safety. All finished in a polyester based epoxy powder coated finish which is baked, for a scratch resistant beautiful finish. Bringing our levels of quality and safety right down to the very start of our range, we are so confident that this will be the best low cost economy trolley you buy, that we even have the confidence to add a THREE YEAR WARRANTY, What do you have to lose?
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
Product Code | Bed Size | Wheel Configuration | Stock | Price (Ex. VAT) |
---|---|---|---|---|
HI-EB-10-2F2SWB | 1000mm x 500mm | 2 Fixed 2 Swivel with Brake | In Stock | |
HI-EB-10-2S2SWB | 1000mm x 500mm | 2 Swivel 2 Swivel with Brake | In Stock | |
HI-EB-12-2F2SWB | 1200mm x 600mm | 2 Fixed 2 Swivel with Brake | In Stock | |
HI-EB-12-2S2SWB | 1200mm x 600mm | 2 Swivel 2 Swivel with Brake | In Stock |
- Capacity:
- 250kg
- Overall Height:
- 915mm
- Base Height:
- 165mm
- Wheel Diameter:
- 125mm
- Wheel Configuration:
- 2 Fixed, 2 Swivel with Brake
- Wheel Type:
- Grey Non-Marking
- Chassis Material:
- Steel
- Finish:
- Industrial Blue (RAL 5010)
- Item Weight:
- 18.59 - 22.6KG
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-EB
Economy Flatbed Trolley
Wheels and Castors | PASS | FAIL |
Tyres | ||
Is the tyre tread condition good? | ||
Are there any tears or cracks in the surface of the tyre? | ||
Wheel Hub/Core | ||
Are nuts & bolts on cores tight? | ||
Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
If steel, is there any rust or corrosion? | ||
Wheel Bearing | ||
Is there any sign of rust on bearings? | ||
Are the bearings straight into the hub? | ||
Is there excess play in the bearing? | ||
Do the wheels roll smoothly? | ||
Are all foreign bodies removed from the bearings? | ||
Castor Mounted | ||
Are the castor forks straight? | ||
Are there any scratches or dents in the metal? | ||
Is there any rust or corrosion? | ||
Is the main axle bolt secure and free of rust? | ||
Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
Are the nuts on any bolts secure and free of rust? |
Grips and Handles | PASS | FAIL |
General | ||
Is the handle rust fee? | ||
Are there any cracks or visible damage to any welds? | ||
Is there excessive play in the handle? | ||
Is the handle free from any significant dents, or deep scratches? | ||
Are there any bends in the handle not present at point of manufacture? |
Frame and Chassis | PASS | FAIL |
General | ||
Is the frame and chassis free from rust and excessive imperfections? | ||
Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
Is the frame and chassis free from buckles? | ||
Are there any dents, chips or tears in the frame? | ||
Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
Base Platform | ||
Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
Are the corner spigots present, and firmly secured? | ||
Do the corner spigots still have the retaining tabs on the bottom? | ||
Where fitted, are endcaps still present and undamaged? |
Misc | PASS | FAIL |
Corner Bumpers | ||
Are corner bumpers mounted securely? | ||
Are mounting rivets still intact and without sharps? | ||
Are mounting rivets free of rust? |
If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
Please make note of any other issues in the space below: |
Date of Inspection | Operator Signature |
-
