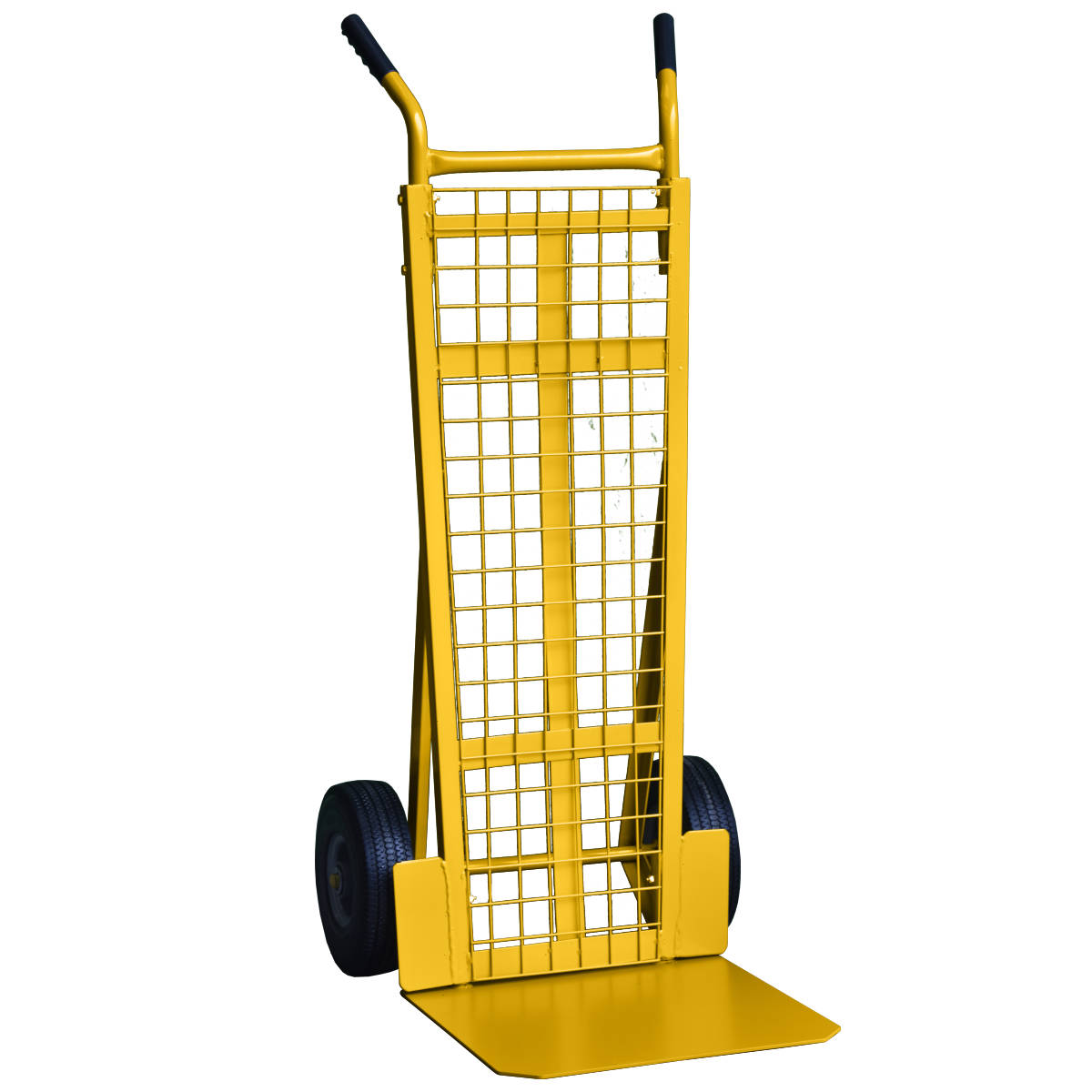

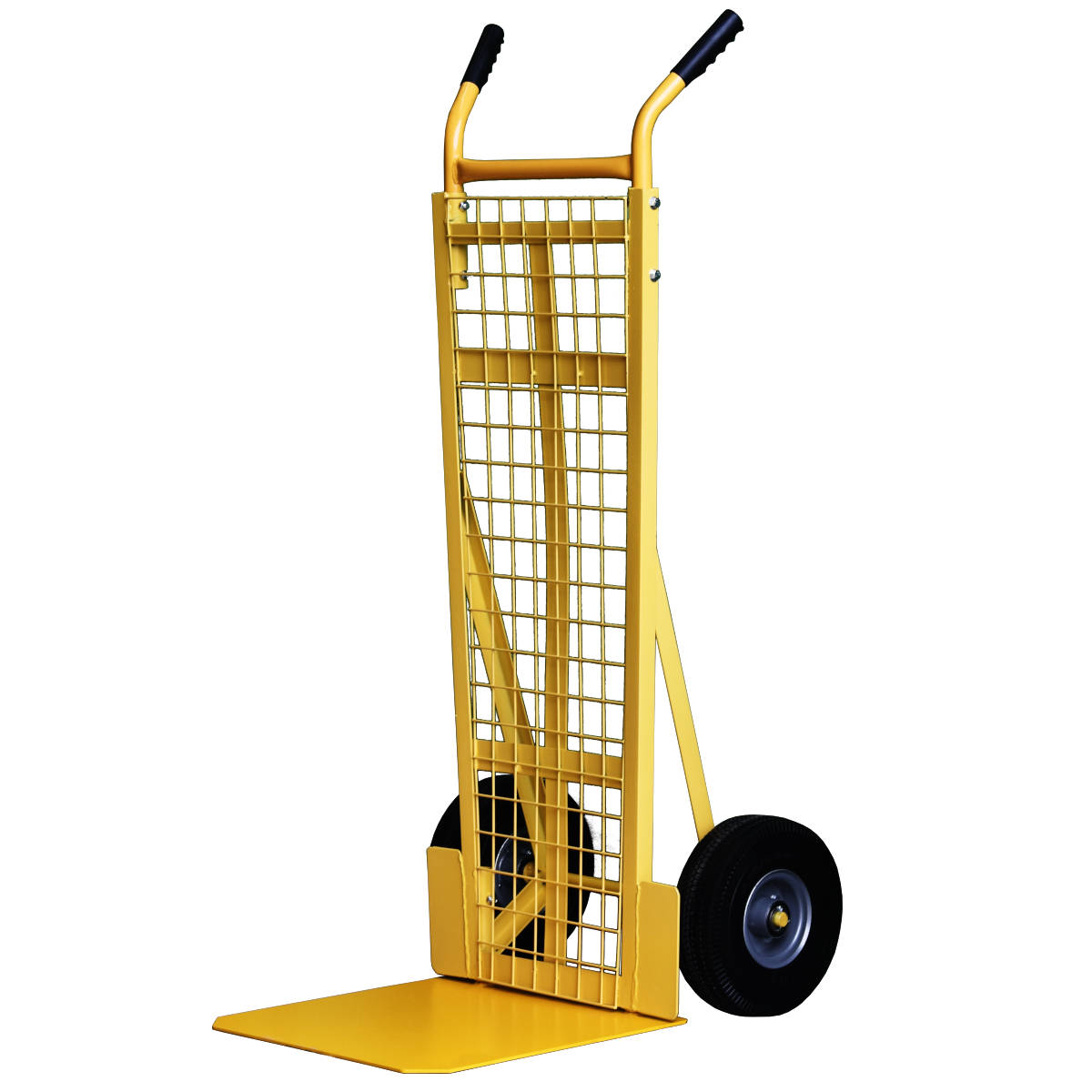

Hand Truck With Mesh Back | Truck-iT | Heavy Duty
Availability:: Available with Next Day Delivery
Specification
| Capacity | 270kg |
| Overall Width | 560mm |
| Overall Height | 1220mm |
| Wheel Diameter | 254mm |
| Wheel Type | Pneumatic / Polyurethane |
| Item Weight | 20.15KG - 24.3KG |
Product Details
The Hand Truck With Mesh Back is fitted with traditional style cow horn handles mounted on a frame with a mesh back and is part of our Heavy Duty "Truck-iT" Sack Truck Range.
Heavy Duty Hand Truck Frame
These hand trucks are constructed from heavy duty 30mm angle iron, which gives a remarkably rigid frame for a long life without the risk of bend, buckles and breaks. Fitted with a 20mm solid axle and supplied as standard with pneumatic tyres on a bolted steel center to enable the changing of tyres to be a simple job. Topped off with a fully cased ball bearing to reduce effort. You can swap the tyres to polyurethane foam which will never puncture and not only will last until you wear them to the rims, but also offer the additional safety benefits of ensuring that your staff are not responsible for keeping the air pressure correct, thus ensuring that the load doesn't lean. The mesh back is great for moving both very large or very small loads.
The hand truck frame consists of three main parts, and any part of the sack truck can be swapped out and replaced if your requirements change, saving you from buying a whole new hand truck, and meaning you can build the perfect truck for your needs.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Wheel Type | Footplate | Stock | Price (Ex. VAT) |
|---|---|---|---|---|
| HI-31H-PN | Air-Filled Pneumatic Wheel | 220mm x 350mm Open Footplate | Currently Unavailable | |

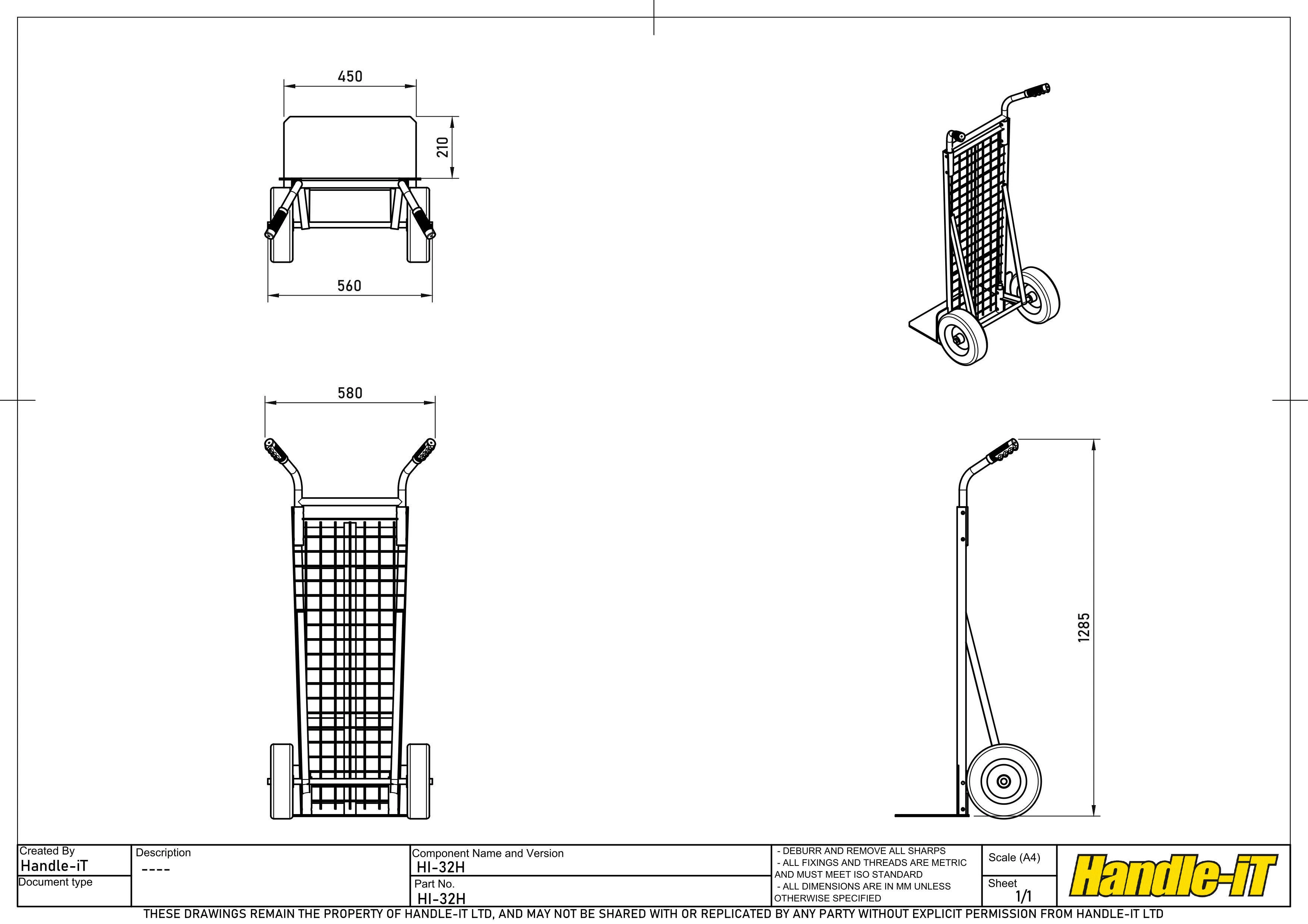

| HI-32H-PN | Air-Filled Pneumatic Wheel | 250mm x 450mm Footplate | In Stock | |

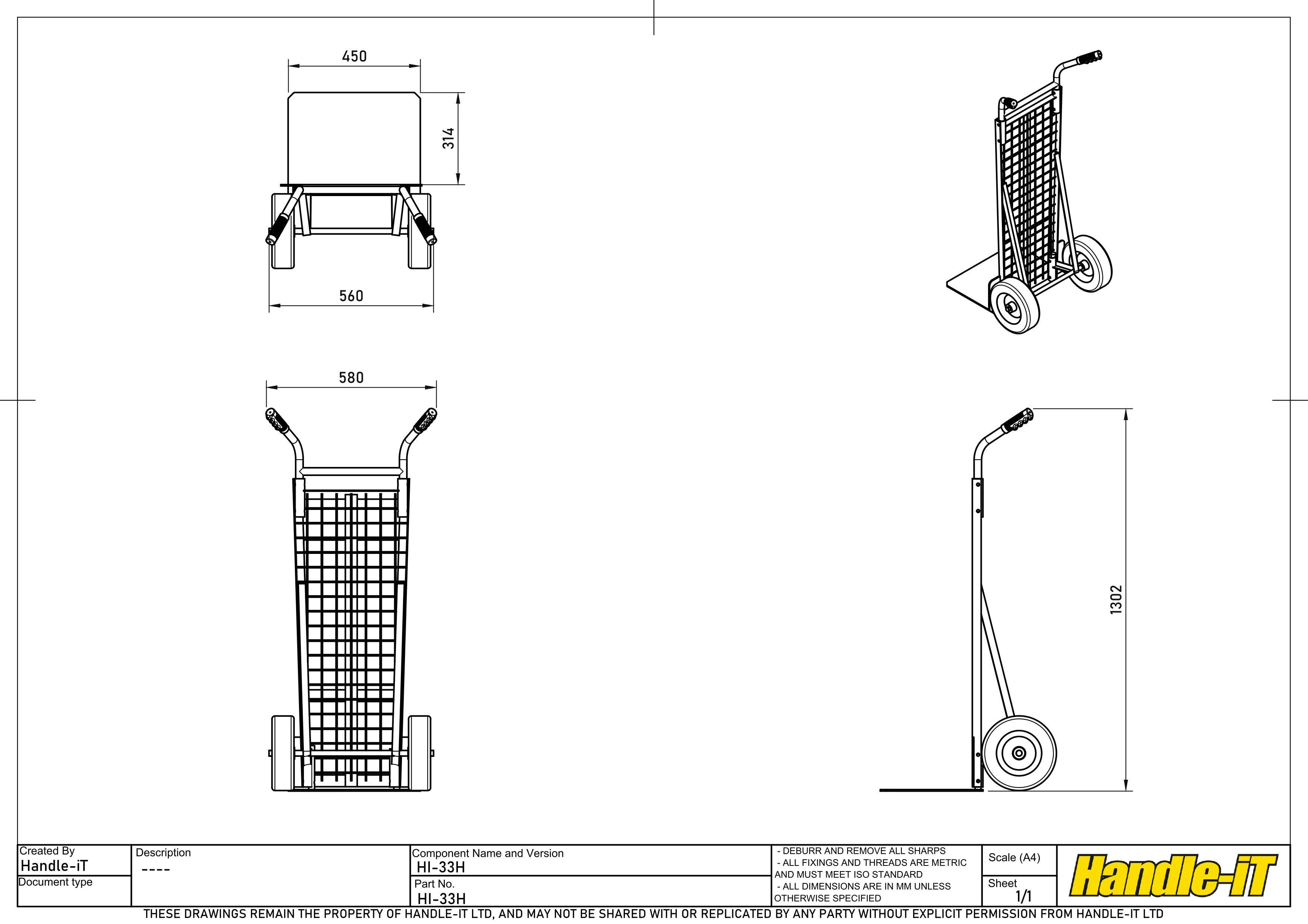

| HI-33H-PN | Air-Filled Pneumatic Wheel | 350mm x 450mm Footplate | In Stock | |

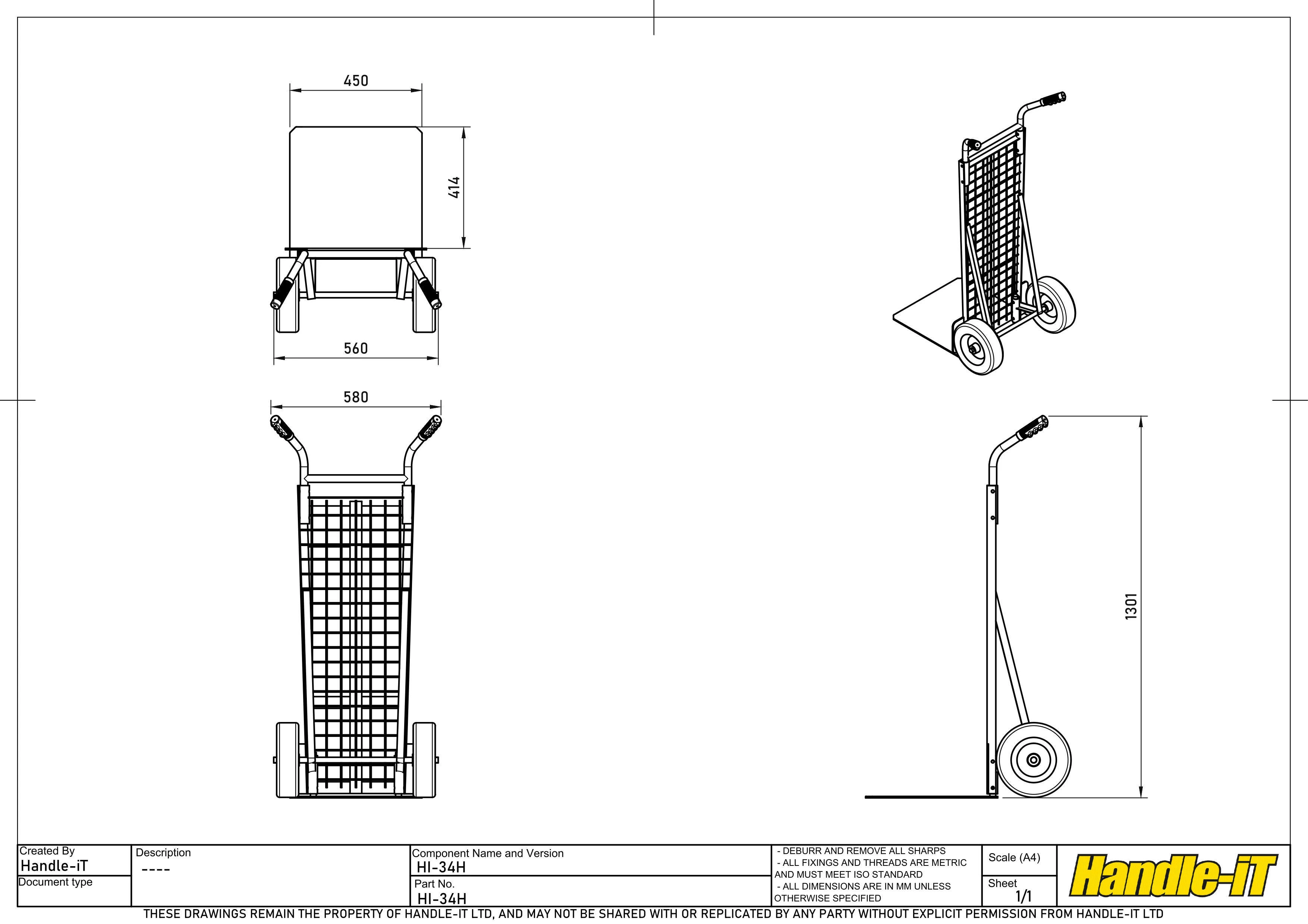

| HI-34H-PN | Air-Filled Pneumatic Wheel | 450mm x 450mm Footplate | In Stock | |
| HI-31H-PU | Polyurethane Puncture Proof Wheel | 220mm x 350mm Open Footplate | Currently Unavailable | |
| HI-32H-PU | Polyurethane Puncture Proof Wheel | 250mm x 450mm Footplate | In Stock | |
| HI-33H-PU | Polyurethane Puncture Proof Wheel | 350mm x 450mm Footplate | In Stock | |
| HI-34H-PU | Polyurethane Puncture Proof Wheel | 450mm x 450mm Footplate | In Stock |
- Capacity:
- 270kg
- Overall Width:
- 560mm
- Overall Height:
- 1220mm
- Wheel Diameter:
- 254mm
- Wheel Type:
- Pneumatic / Polyurethane
- Item Weight:
- 20.15KG - 24.3KG
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-32H-PN
Hand Truck With Mesh Back | Truck-iT | Heavy Duty
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
