The Platform Truck with Single Ply End is part of the Premium Platform Truck Range of Mesh Sided Platform Trucks and Trolleys. They are a modular design trolley that allow multiple configurations. Each trolley can carry one, two or three panels at any one time depending on the load you are carrying. The range can be made to whatever size you require. With handles set at the perfect working height and angled away from the base to eliminate trip hazards with the statutory 120mm clearance. With side panels that are removable in seconds without the need for any tools, nuts or bolts, just great engineering. The laser cut base manufactured from a single piece of 50mm x 25mm box sections formed around the corner post location spigots, creates a beautifully rounded corner rather than a sharp and aggressive mitred corner that will make holes in walls and ankles in the unfortunate event of a collision. Mounted on high quality 200mm diameter wheels as standard, with 2 fixed castors for direction and 2 swivel with brake for manoeuvrability and safety, which will cope with any firm ground. Finished with a hardwearing, scratch resistant, industrial epoxy powder coated finish. Our Premium and Premium Plus Ranges of Platform Trucks all conform to BS-EN1757-1, giving you the confidence the Handle-iT is your safer choice.
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com

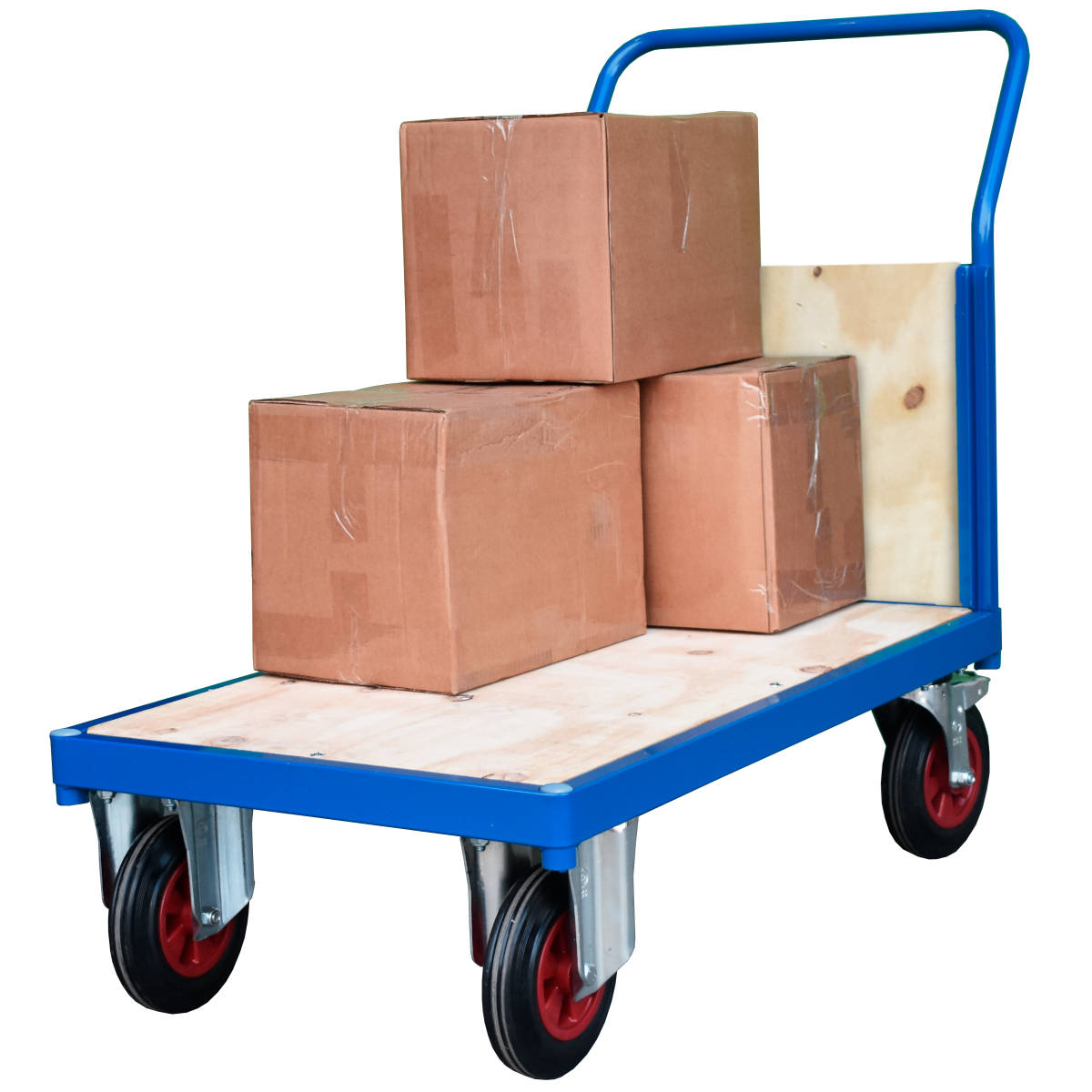

Heavy Duty Flatbed Trolley With Ply Wood End
Availability:: Available with Next Day Delivery
Specification
| Capacity | 500kg |
| Finish | Industrial Blue (RAL 5010) |
| Chassis Material | Steel |
| Overall Height | 990mm |
| Wheel Diameter | 200mm |
| Base Height | 296mm |
| Panel Height | 400mm |
| Panel Material | 18mm Weather & Boil Proof Ply |
| Base Size Options | 1000mm X 600mm, 1200mm X 600mm, 1500mm X 750mm, 2000mm X 1000mm |
Product Details
The Platform Truck with Single Ply End is part of the Premium Platform Truck Range of Mesh Sided Platform Trucks and Trolleys. They are a modular design trolley that allow multiple configurations. Each trolley can carry one, two or three panels at any one time depending on the load you are carrying. The range can be made to whatever size you require. With handles set at the perfect working height and angled away from the base to eliminate trip hazards with the statutory 120mm clearance. With side panels that are removable in seconds without the need for any tools, nuts or bolts, just great engineering. The laser cut base manufactured from a single piece of 50mm x 25mm box sections formed around the corner post location spigots, creates a beautifully rounded corner rather than a sharp and aggressive mitred corner that will make holes in walls and ankles in the unfortunate event of a collision. Mounted on high quality 200mm diameter wheels as standard, with 2 fixed castors for direction and 2 swivel with brake for manoeuvrability and safety, which will cope with any firm ground. Finished with a hardwearing, scratch resistant, industrial epoxy powder coated finish. Our Premium and Premium Plus Ranges of Platform Trucks all conform to BS-EN1757-1, giving you the confidence the Handle-iT is your safer choice.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Bed Size | Stock | Price (Ex. VAT) |
|---|---|---|---|
| HI-FBT-B1060 | 1000mm x 600mm | In Stock | |

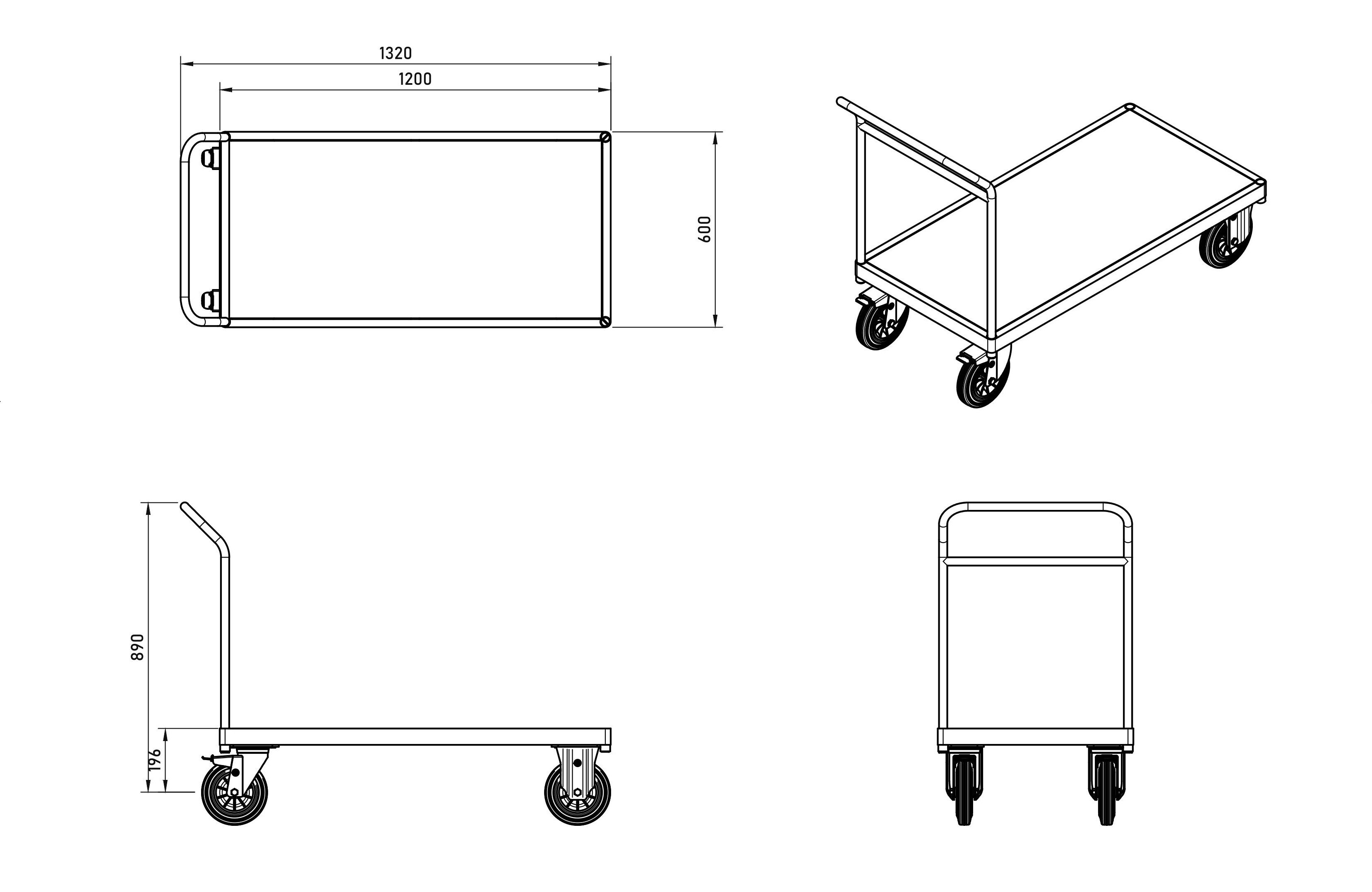

| HI-FBT-B1260 | 1200mm x 600mm | In Stock | |
| HI-FBT-B1575 | 1500mm x 750mm | In Stock | |

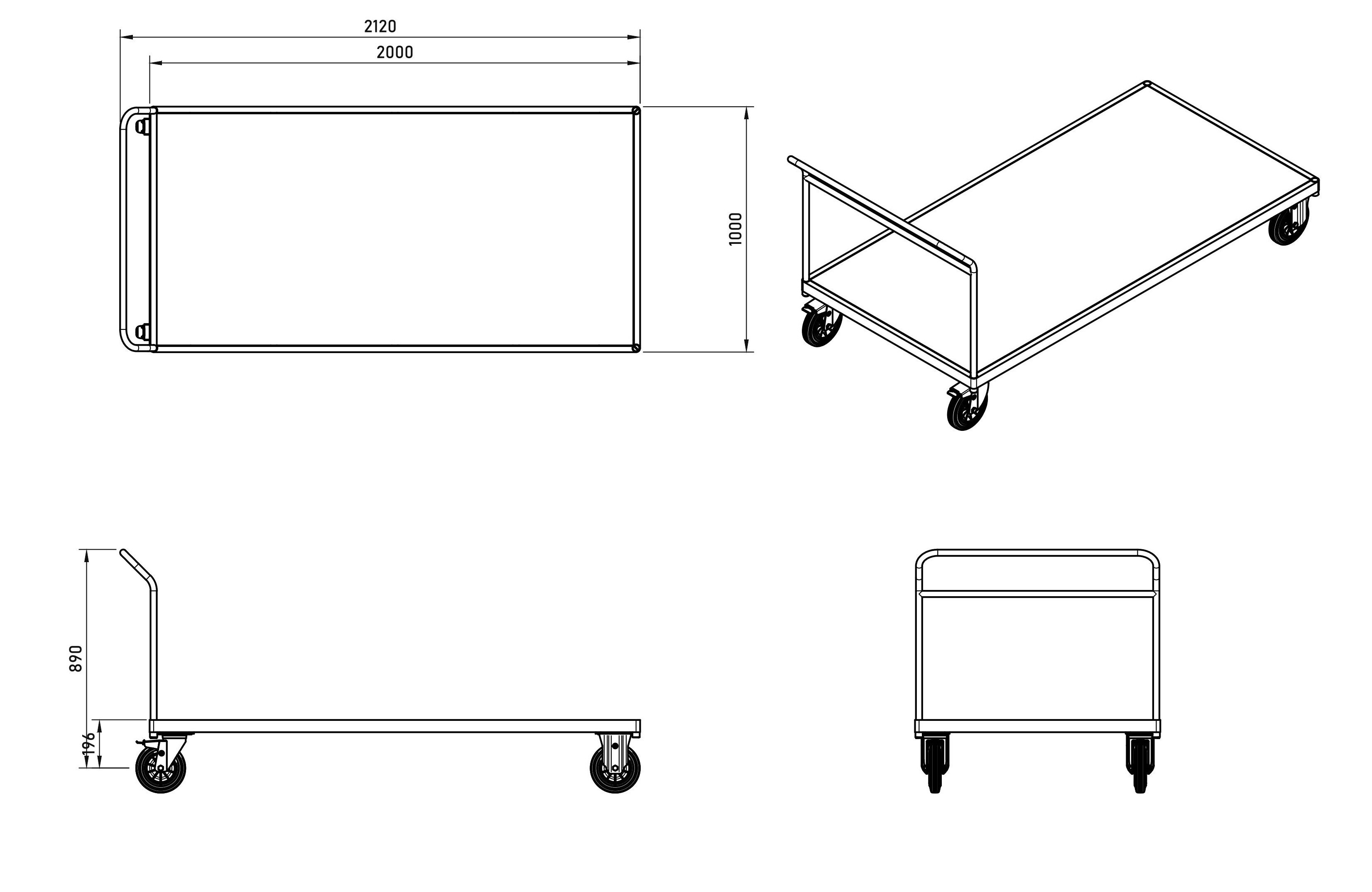

| HI-FBT-B2010 | 2000mm x 1000mm | In Stock |
- Capacity:
- 500kg
- Finish:
- Industrial Blue (RAL 5010)
- Chassis Material:
- Steel
- Overall Height:
- 990mm
- Wheel Diameter:
- 200mm
- Base Height:
- 296mm
- Panel Height:
- 400mm
- Panel Material:
- 18mm Weather & Boil Proof Ply
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-FBT-B
Heavy Duty Flatbed Trolley With Ply Wood End
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Castor Mounted | ||
| Are the castor forks straight? | ||
| Are there any scratches or dents in the metal? | ||
| Is there any rust or corrosion? | ||
| Is the main axle bolt secure and free of rust? | ||
| Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
| Are the nuts on any bolts secure and free of rust? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
