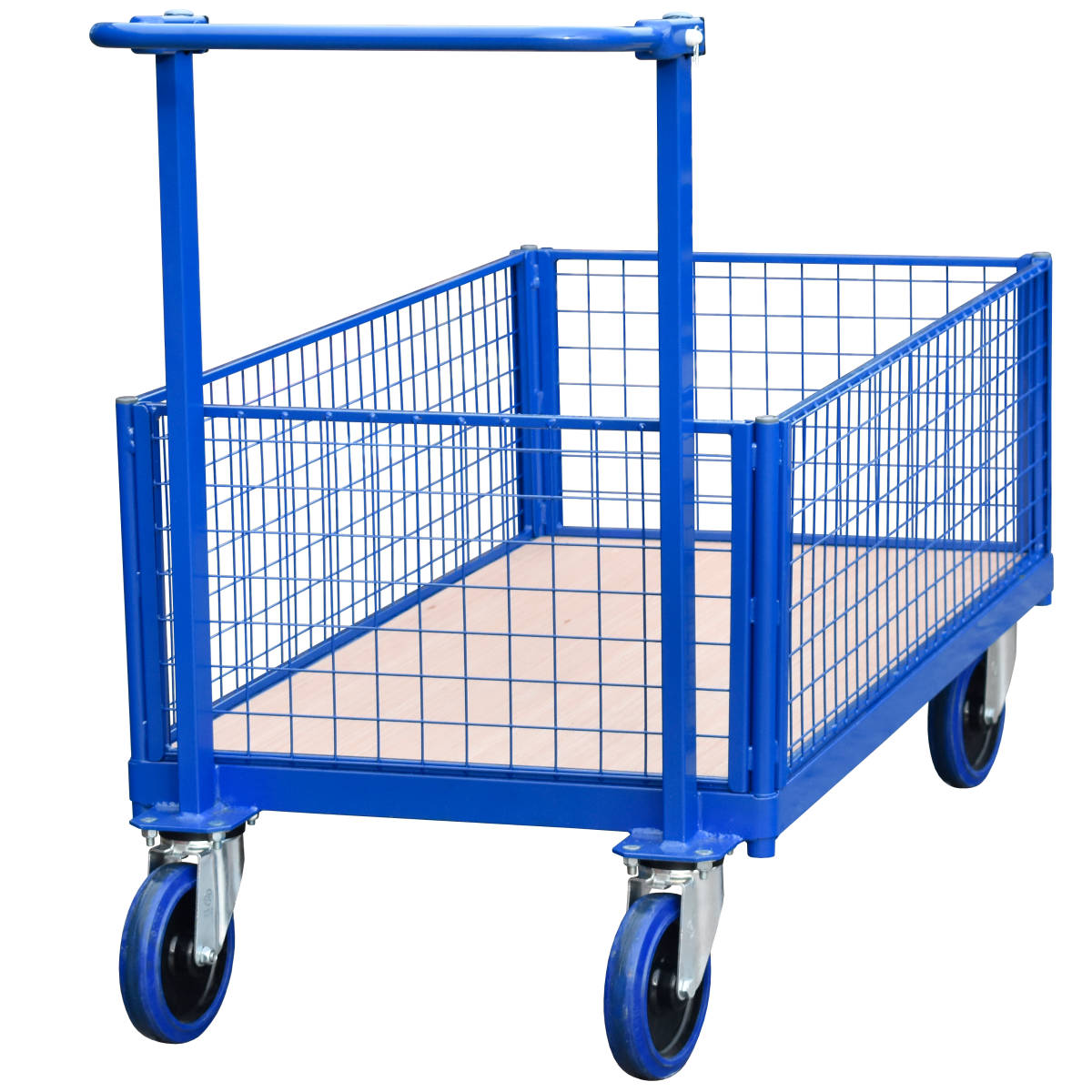

Platform Truck or Cage Trolley with Deadman Brake and 4 Sides
Product Details
Description
Platform Truck or Cage Trolley with Deadman Brake and 4 Sides. Part of the HI-MT Mesh sided platform truck range, it can be made to any size you want. This is a modular design so sides can easily be inserted or removed to make multiple configurations. Designed using state of the art single face laser cutting technology and the highest quality steel. We can also apply plastic, wood or sheet steel for the sides. If there is something that you think we should be offering, make the suggestion to your accounts manager; I am sure we can help you.
Deadman Brake System
This trolley is also supplied with the specialised Deadman Brake upgrade. The Deadman Brake prevents the trolley from moving when not in use by utilising a simple yet effective breaking rod built into the handle. The braking rod clamps down on the wheel while the handle is released, locking the trolley in position. Pressing down the handle releases the clamp and allows the wheels to move freely until the handle is released once again. In the event of an accident, the wheels lock the moment the operator releases the handle, meaning no more runaway trolleys.
Safety Information
DOWNLOAD FREE RISK ASSESSMENT
HSE Guide to Manual Handling at Work
Specification
| Item | Measurement |
|---|---|
| Capacity | 500 kg |
| Base Size Options | Multiple Options |
| Wheel Diameter | 200 mm |
| Wheel Wheel Type | You Choose |
| Wheel Configuration | You Choose |
| Colour | You Choose |
Product Videos
Ask A Question
Reviews
Options
| Product Code | Bed Size | Wheel Type | Wheel Configuration | Cost Price Ex VAT |
|---|---|---|---|---|
| HI-FBT-1060-4MS400-BCR-4SW-DMB | 1000mm x 600mm | Standard Black Rubber Tyre | 4x Swivel Deadman Brake | £754.00 |
| HI-FBT-1060-4MS400-BCR-2FX2SW-DMB | 1000mm x 600mm | Standard Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £754.00 |
| HI-FBT-1060-4MS400-GNM-4SW-DMB | 1000mm x 600mm | Castor with Grey Non Marking Tyre | 4x Swivel Deadman Brake | £819.00 |
| HI-FBT-1060-4MS400-GNM-2FX2SW-DMB | 1000mm x 600mm | Castor with Grey Non Marking Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £819.00 |
| HI-FBT-1060-4MS400-SCR-4SW-DMB | 1000mm x 600mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel Deadman Brake | £799.00 |
| HI-FBT-1060-4MS400-SCR-2FX2SW-DMB | 1000mm x 600mm | Steel Centre Castor with Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £799.00 |
| HI-FBT-1260-4MS400-BCR-4SW-DMB | 1200mm x 600mm | Standard Black Rubber Tyre | 4x Swivel Deadman Brake | £779.00 |
| HI-FBT-1260-4MS400-BCR-2FX2SW-DMB | 1200mm x 600mm | Standard Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £779.00 |
| HI-FBT-1260-4MS400-GNM-4SW-DMB | 1200mm x 600mm | Castor with Grey Non Marking Tyre | 4x Swivel Deadman Brake | £844.00 |
| HI-FBT-1260-4MS400-GNM-2FX2SW-DMB | 1200mm x 600mm | Castor with Grey Non Marking Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £844.00 |
| HI-FBT-1260-4MS400-SCR-4SW-DMB | 1200mm x 600mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel Deadman Brake | £819.00 |
| HI-FBT-1260-4MS400-SCR-2FX2SW-DMB | 1200mm x 600mm | Steel Centre Castor with Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £819.00 |
| HI-FBT-1575-4MS400-BCR-4SW-DMB | 1500mm x 750mm | Standard Black Rubber Tyre | 4x Swivel Deadman Brake | £854.00 |
| HI-FBT-1575-4MS400-BCR-2FX2SW-DMB | 1500mm x 750mm | Standard Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £854.00 |
| HI-FBT-1575-4MS400-GNM-4SW-DMB | 1500mm x 750mm | Castor with Grey Non Marking Tyre | 4x Swivel Deadman Brake | £919.00 |
| HI-FBT-1575-4MS400-GNM-2FX2SW-DMB | 1500mm x 750mm | Castor with Grey Non Marking Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £919.00 |
| HI-FBT-1575-4MS400-SCR-4SW-DMB | 1500mm x 750mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel Deadman Brake | £899.00 |
| HI-FBT-1575-4MS400-SCR-2FX2SW-DMB | 1500mm x 750mm | Steel Centre Castor with Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £899.00 |
| HI-FBT-2010-4MS400-BCR-4SW-DMB | 2000mm x 1000mm | Standard Black Rubber Tyre | 4x Swivel Deadman Brake | £954.00 |
| HI-FBT-2010-4MS400-BCR-2FX2SW-DMB | 2000mm x 1000mm | Standard Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £954.00 |
| HI-FBT-2010-4MS400-GNM-4SW-DMB | 2000mm x 1000mm | Castor with Grey Non Marking Tyre | 4x Swivel Deadman Brake | £1,019.00 |
| HI-FBT-2010-4MS400-GNM-2FX2SW-DMB | 2000mm x 1000mm | Castor with Grey Non Marking Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £1,019.00 |
| HI-FBT-2010-4MS400-SCR-4SW-DMB | 2000mm x 1000mm | Steel Centre Castor with Black Rubber Tyre | 4x Swivel Deadman Brake | £999.00 |
| HI-FBT-2010-4MS400-SCR-2FX2SW-DMB | 2000mm x 1000mm | Steel Centre Castor with Black Rubber Tyre | 2x Fixed, 2x Swivel w/Deadman Brake | £999.00 |
Product Maintenance
+44 (01803) 875 222
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
| Check |
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Castor Mounted | ||
| Are the castor forks straight? | ||
| Are there any scratches or dents in the metal? | ||
| Is there any rust or corrosion? | ||
| Is the main axle bolt secure and free of rust? | ||
| Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
| Are the nuts on any bolts secure and free of rust? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Removable Parts | PASS | FAIL |
| Corner Posts | ||
| Where fitted, are the corner posts secure without excessive wear? | ||
| Are the corner posts free from rust, dents or deep scratches? | ||
| Are the corner post channels straight, free from rust and free from damage? | ||
| Side Panels | ||
| Are the side panels still straight? | ||
| Is there excessive play in the side panels when fitted? | ||
| Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
| If using mesh side panels, are there any signs or rust or corrosion? | ||
| If using mesh side panels, are there any breaks or damage to the welds? | ||
| If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
| If using plastic side panels, are all rivets still present and free from rust or damage? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
Date of Download: 27-11-22
