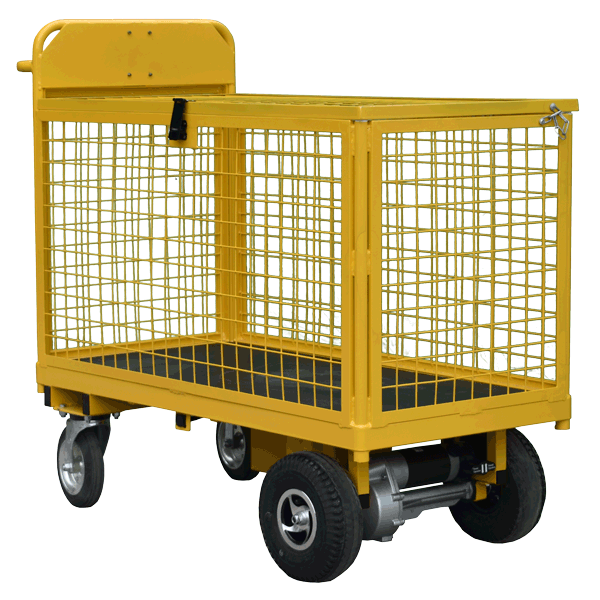

Power-Assisted Locking Cage Trolley
✓ Free Delivery to UK Mainland
✓ Fully Assembled and Ready To Use at No Extra Cost!
✓ Made to Order. Please Contact for Current Lead Time.
✓ 12 Month Warranty for Electronics
✓ 5 Year Warranty for Chassis
✓ European Conformity Standard Certified
✓ Conforms to BS/EN1757-3
✓ For Multi-Buy Discount or Custom Modifications, Call the Team Today!
Product Details
Description
This power assisted cage trolley has an in-built HIPOW motor system, giving you the power to push up to 500kg with the flick of a switch. The load platform is encased in a fully welded security cage with a lockable lid, making it great for storage of high value goods or sensitive documents.
Electric Motor System
The electronic motor system uses a powered drive motor linked to an advanced CURTIS control unit. Using the Thyristor control unit at the handle, the operator has total control of the load at all times. A variable throttle and adjustable speed control means the trolley drives at a speed that's right for the operator, and the advanced system features a deadman brake lock, which locks the moment the throttle is released and brings the trolley to a safe but swift stop. This control unit is key operated, so the trolley cannot be driven away without the keys for added security.
High Quality Construction
As all our Powered Trolleys are made right here in the UK, they are built to the highest quality standards and are put through rigorous quality assurance testing to make sure you get the absolute best. The base chassis of the trolley uses our classic flatbed trolley design, being fabricated using a single piece of box section for increased rigidity and far better structural strength when compared to angle iron equivalent. The rounded corners also give a sleeker look and a softer edge in the event of knocks.
Bespoke Fabrication
This trolley can also be modified to meet your exact needs. For more information and details on additional extras, take the link to our Powered Trolleys info page. Or Call Our Experienced Helpful Sales Team on 01803 875222
Powered Trolley Training
We are now offering on-site powered trolley operation training for anywhere in the UK. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
Product Videos
Powered Trolleys
Specification
| Item | Measurement |
|---|---|
| Capacity | 500 kg |
| Base Size Options | 1200mm x 600mm, 1500mm x 750mm |
| Wheel Configuration | 2 x Solid Swivel, 2 x 254mm Pneumatic Wheels |
| Colour | Yellow as standard or your choice |
| Chassis Warranty | 5 Years |
| Electronics Warranty | 12 Months |
Ask A Question
Reviews
Options
| Product Code | Bed Size | Safety Beacons | Battery | Cost Price Ex VAT |
|---|---|---|---|---|
| HI-POW-1260-FSC-MS | 1200mm x 600mm | - | Standard 24V Lead Acid Battery | £3,954.00 |
| HI-POW-1575-FSC-MS | 1500mm x 750mm | - | Standard 24V Lead Acid Battery | £4,944.00 |
| HI-POW-1260-FSC-MS-FAB2 | 1200mm x 600mm | Safety Beacons, Front Facing (2 front) | Standard 24V Lead Acid Battery | £4,264.00 |
| HI-POW-1575-FSC-MS-FAB2 | 1500mm x 750mm | Safety Beacons, Front Facing (2 front) | Standard 24V Lead Acid Battery | £5,254.00 |
| HI-POW-1260-FSC-MS-FAB4 | 1200mm x 600mm | Safety Beacons, Full Surround (2 on front, left, and right) | Standard 24V Lead Acid Battery | £4,394.00 |
| HI-POW-1575-FSC-MS-FAB4 | 1500mm x 750mm | Safety Beacons, Full Surround (2 on front, left, and right) | Standard 24V Lead Acid Battery | £5,384.00 |
| HI-POW-1260-FSC-MS-LiON | 1200mm x 600mm | - | 24V Lithium Ion (LiON) Battery | £4,939.00 |
| HI-POW-1575-FSC-MS-LiON | 1500mm x 750mm | - | 24V Lithium Ion (LiON) Battery | £5,929.00 |
| HI-POW-1260-FSC-MS-FAB2-LiON | 1200mm x 600mm | Safety Beacons, Front Facing (2 front) | 24V Lithium Ion (LiON) Battery | £5,249.00 |
| HI-POW-1575-FSC-MS-FAB2-LiON | 1500mm x 750mm | Safety Beacons, Front Facing (2 front) | 24V Lithium Ion (LiON) Battery | £6,239.00 |
| HI-POW-1260-FSC-MS-FAB4-LiON | 1200mm x 600mm | Safety Beacons, Full Surround (2 on front, left, and right) | 24V Lithium Ion (LiON) Battery | £5,379.00 |
| HI-POW-1575-FSC-MS-FAB4-LiON | 1500mm x 750mm | Safety Beacons, Full Surround (2 on front, left, and right) | 24V Lithium Ion (LiON) Battery | £6,369.00 |
Product Maintenance
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
| Check |
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Pneumatic Tyres | ||
| Are the tyres fully all inflated equally and at the recommended tyre pressure? | ||
| Is there any wear on valves? | ||
| Are all valve caps in place? | ||
| Are there any bulges? | ||
| Castor Mounted | ||
| Are the castor forks straight? | ||
| Are there any scratches or dents in the metal? | ||
| Is there any rust or corrosion? | ||
| Is the main axle bolt secure and free of rust? | ||
| Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
| Are the nuts on any bolts secure and free of rust? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? | ||
| Grips | ||
| Are the grips fixed or tightly on the truck? | ||
| Is the any damage to the grips, splits or crack that may worsen over time? | ||
| If the grips have knuckle guards are they intact? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Removable Parts | PASS | FAIL |
| Corner Posts | ||
| Where fitted, are the corner posts secure without excessive wear? | ||
| Are the corner posts free from rust, dents or deep scratches? | ||
| Are the corner post channels straight, free from rust and free from damage? | ||
| Side Panels | ||
| Are the side panels still straight? | ||
| Is there excessive play in the side panels when fitted? | ||
| Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
| If using mesh side panels, are there any signs or rust or corrosion? | ||
| If using mesh side panels, are there any breaks or damage to the welds? | ||
| If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
| If using plastic side panels, are all rivets still present and free from rust or damage? |
| Powered Components | PASS | FAIL |
| General Operation | ||
| Is the warning beep correctly sounding while in reverse? | ||
| Is the emergancy stop functioning correctly? | ||
| Is the speed control functioning correctly? | ||
| Is the trolley moving smoothly, both forward and in reverse? | ||
| Electrical Fault Indicator | ||
| Is the LED on the control unit steady? If not, this may indicate an electrical fault. Check the HI-POW operation manual for more information. | ||
| Powered Trolley Battery | ||
| Is the unit charging correctly? | ||
| Is the battery correctly secured? | ||
| Is there any sign of battery leaks? | ||
| Powered Trolley Optional Extras | ||
| Are the beacons functioning correctly? | ||
| Does the warning bell/buzzer function correctly? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
Warranty
Product Warranty
Handle-iT's Power-Assisted Locking Cage Trolley is supplied with a
12 Month Warranty
for the electronics
5 Year Warranty
for the chassis
For more information on warranties at Handle-iT,
Click Here
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Power-Assisted Locking Cage Trolley
✓ Free Delivery to UK Mainland
✓ Fully Assembled and Ready To Use at No Extra Cost!
✓ Made to Order. Please Contact for Current Lead Time.
✓ 12 Month Warranty for Electronics
✓ 5 Year Warranty for Chassis
✓ European Conformity Standard Certified
✓ Conforms to BS/EN1757-3
✓ For Multi-Buy Discount or Custom Modifications, Call the Team Today!
Specification
| Item | Measurement |
|---|---|
| Capacity | 500 kg |
| Base Size Options | 1200mm x 600mm, 1500mm x 750mm |
| Wheel Configuration | 2 x Solid Swivel, 2 x 254mm Pneumatic Wheels |
| Colour | Yellow as standard or your choice |
| Chassis Warranty | 5 Years |
| Electronics Warranty | 12 Months |
Product Details
This power assisted cage trolley has an in-built HIPOW motor system, giving you the power to push up to 500kg with the flick of a switch. The load platform is encased in a fully welded security cage with a lockable lid, making it great for storage of high value goods or sensitive documents.
Electric Motor System
The electronic motor system uses a powered drive motor linked to an advanced CURTIS control unit. Using the Thyristor control unit at the handle, the operator has total control of the load at all times. A variable throttle and adjustable speed control means the trolley drives at a speed that's right for the operator, and the advanced system features a deadman brake lock, which locks the moment the throttle is released and brings the trolley to a safe but swift stop. This control unit is key operated, so the trolley cannot be driven away without the keys for added security.
High Quality Construction
As all our Powered Trolleys are made right here in the UK, they are built to the highest quality standards and are put through rigorous quality assurance testing to make sure you get the absolute best. The base chassis of the trolley uses our classic flatbed trolley design, being fabricated using a single piece of box section for increased rigidity and far better structural strength when compared to angle iron equivalent. The rounded corners also give a sleeker look and a softer edge in the event of knocks.
Bespoke Fabrication
This trolley can also be modified to meet your exact needs. For more information and details on additional extras, take the link to our Powered Trolleys info page. Or Call Our Experienced Helpful Sales Team on 01803 875222
Powered Trolley Training
We are now offering on-site powered trolley operation training for anywhere in the UK. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
| Product Code | Bed Size | Safety Beacons | Battery | Cost Price Ex VAT |
|---|---|---|---|---|
| HI-POW-1260-FSC-MS | 1200mm x 600mm | - | Standard 24V Lead Acid Battery | £3,954.00 |
| HI-POW-1575-FSC-MS | 1500mm x 750mm | - | Standard 24V Lead Acid Battery | £4,944.00 |
| HI-POW-1260-FSC-MS-FAB2 | 1200mm x 600mm | Safety Beacons, Front Facing (2 front) | Standard 24V Lead Acid Battery | £4,264.00 |
| HI-POW-1575-FSC-MS-FAB2 | 1500mm x 750mm | Safety Beacons, Front Facing (2 front) | Standard 24V Lead Acid Battery | £5,254.00 |
| HI-POW-1260-FSC-MS-FAB4 | 1200mm x 600mm | Safety Beacons, Full Surround (2 on front, left, and right) | Standard 24V Lead Acid Battery | £4,394.00 |
| HI-POW-1575-FSC-MS-FAB4 | 1500mm x 750mm | Safety Beacons, Full Surround (2 on front, left, and right) | Standard 24V Lead Acid Battery | £5,384.00 |
| HI-POW-1260-FSC-MS-LiON | 1200mm x 600mm | - | 24V Lithium Ion (LiON) Battery | £4,939.00 |
| HI-POW-1575-FSC-MS-LiON | 1500mm x 750mm | - | 24V Lithium Ion (LiON) Battery | £5,929.00 |
| HI-POW-1260-FSC-MS-FAB2-LiON | 1200mm x 600mm | Safety Beacons, Front Facing (2 front) | 24V Lithium Ion (LiON) Battery | £5,249.00 |
| HI-POW-1575-FSC-MS-FAB2-LiON | 1500mm x 750mm | Safety Beacons, Front Facing (2 front) | 24V Lithium Ion (LiON) Battery | £6,239.00 |
| HI-POW-1260-FSC-MS-FAB4-LiON | 1200mm x 600mm | Safety Beacons, Full Surround (2 on front, left, and right) | 24V Lithium Ion (LiON) Battery | £5,379.00 |
| HI-POW-1575-FSC-MS-FAB4-LiON | 1500mm x 750mm | Safety Beacons, Full Surround (2 on front, left, and right) | 24V Lithium Ion (LiON) Battery | £6,369.00 |
