• Free Delivery on Orders Over £100.
  • Delivered Fully Assembled
  • Made to Order. Contact the team for lead time.
£2,394.00 (Inc. VAT)
£1,995.00 (Ex. VAT)
(No reviews yet)
Write a Review
Product Code:
HI-T500-SS-1260-PN
Availability:
Made to Order. Contact the team for lead time.
In Stock
Adding to cart… The item has been added

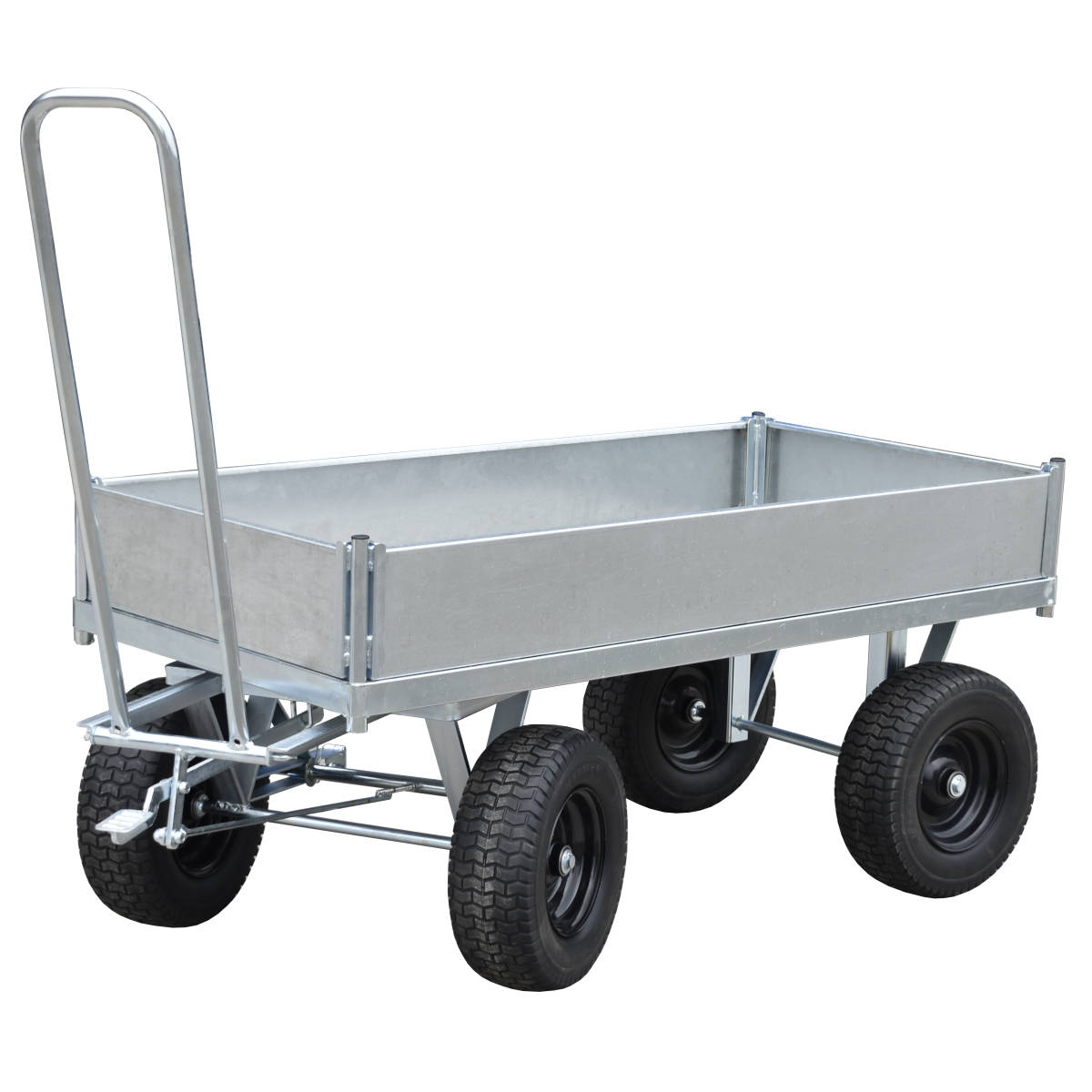

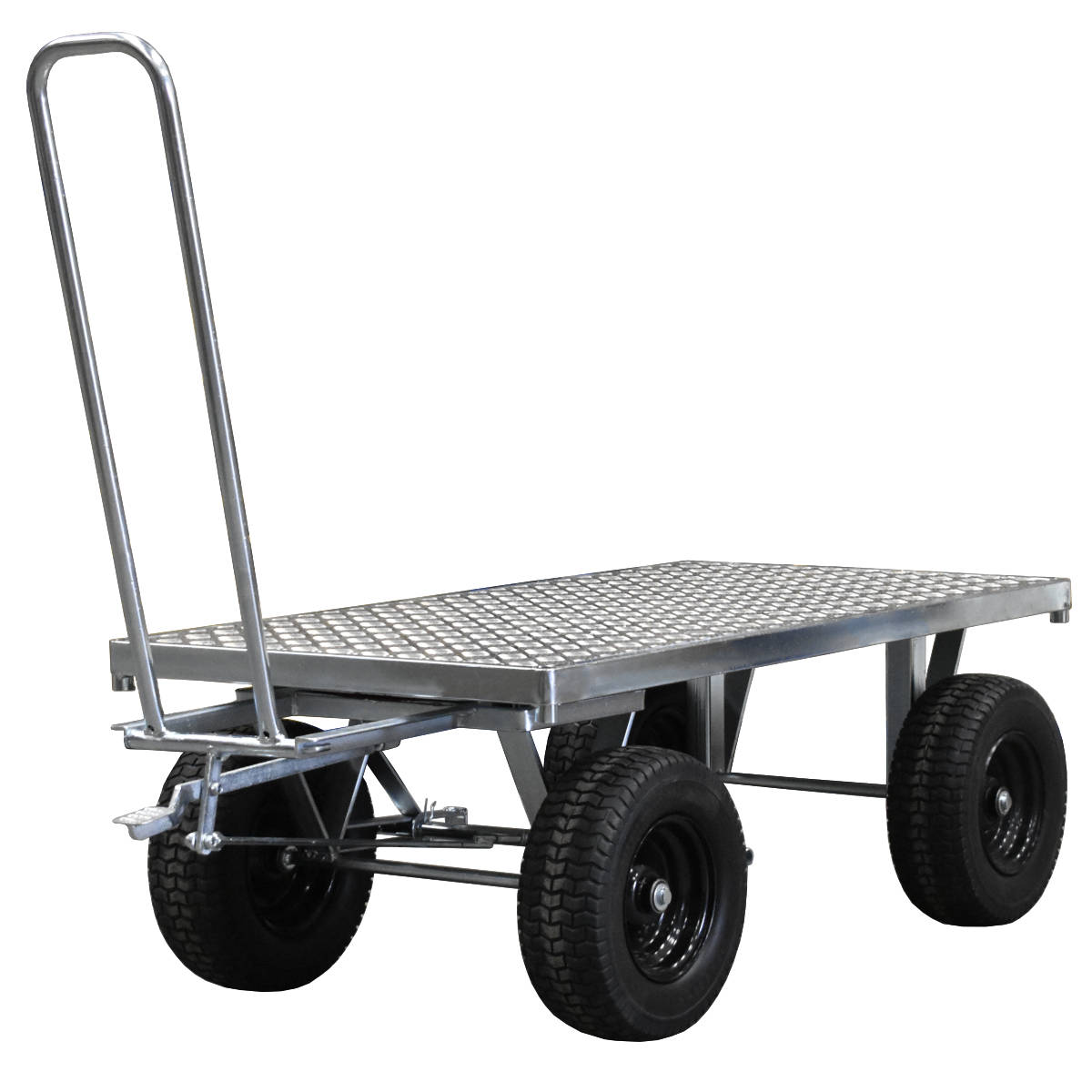

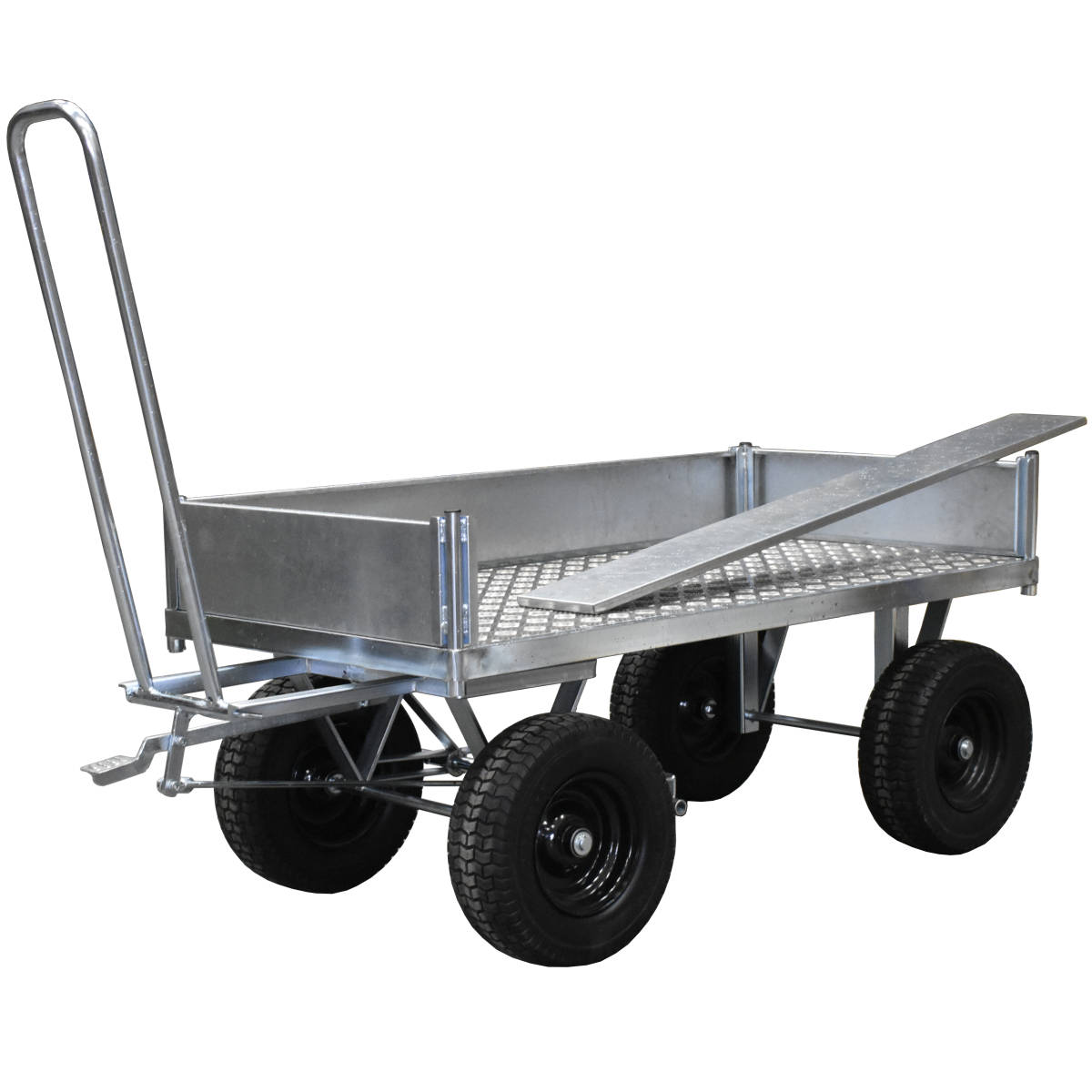

The Stainless Steel Turntable Trolley, manufactured from 304 Grade Stainless Steel, other materials are available for different applications, 316 grade for medical and marine for example. With the same high quality Turntable Trolleys and Hand Pulled Trailers, our classic Premium and Premium Plus Turntable Trolleys uses the same high tech laser cutting techniques as our platform trucks and flatbed trolleys.  The robust single piece box section design means just one weld creates the base frame, leaving less room for error, and a stronger frame. The scalloped, 90-degree bend provides a beautifully rounded corner and allows positioning of side panel kits, even as a very basic retro fit. The frame is inlaid with 6mm Stainless Steel Durbar that provide a rust free, impenetrable flush surface. 50mm box section stanchions mount a solid 20mm solid bar axle, where we mount 400mm high quality wheels, in either pneumatic or puncture proof polyurethane, with an RS6202 bearing that comes with a lifetime warranty. Giving you access to one of the safest Turntable Trolleys in Europe. Built to last, thanks to its tried and tested design that has been developed over years of careful consideration, and understanding of their use and the requirements under Health and Safety Legislation. Constructed in line with BSEN Standards using state of the art manufacturing techniques, alongside rigorous quality assurance testing, all topped off with 5-year warranties, it’s no wonder they're seen as the best on the market.

Capacity:
500kg / 1000kg
Chassis Material:
304 Grade Stainless Steel
Finish:
Polished 304 Grade Stainless Steel
Base Length:
1500mm
Base Width:
750mm
Base Height:
415mm or 485mm
Wheel Diameter:
254mm or 400mm
Side Panel Height:
200mm
Side Panel Material:
304 Grade Stainless Steel

Product Maintenance

Wheels and Castors PASS FAIL
Tyres
Is the tyre tread condition good?
Are there any tears or cracks in the surface of the tyre?
Wheel Hub/Core
Are nuts & bolts on cores tight?
Are wheel cores in good condition without chips, dents, cracks or buckles?
If steel, is there any rust or corrosion?
Wheel Bearing
Is there any sign of rust on bearings?
Are the bearings straight into the hub?
Is there excess play in the bearing?
Do the wheels roll smoothly?
Are all foreign bodies removed from the bearings?
Pneumatic Tyres
Are the tyres fully all inflated equally and at the recommended tyre pressure?
Is there any wear on valves?
Are all valve caps in place?
Are there any bulges?
Axle Mounted
Are all end caps and split pins in place?
Is there lateral play on the wheels?
Are all foreign bodies removed from the axle?
Are there are any fractures on the axles?
Check there are any fractures on the axles supports?
Grips and Handles PASS FAIL
General
Is the handle rust fee?
Are there any cracks or visible damage to any welds?
Is there excessive play in the handle?
Is the handle free from any significant dents, or deep scratches?
Are there any bends in the handle not present at point of manufacture?
Fixings
Are all the correct fixing all in place?
Are all the fixings rust free?
Is there any wear on the fixing holes?
Frame and Chassis PASS FAIL
General
Is the frame and chassis free from rust and excessive imperfections?
Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust?
Is the frame and chassis free from buckles?
Are there any dents, chips or tears in the frame?
Are all fixings, nuts, bolts, slit pins, washers, roll pins in place?
Base Platform
Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage?
Are the corner spigots present, and firmly secured?
Do the corner spigots still have the retaining tabs on the bottom?
Where fitted, are endcaps still present and undamaged?
Removable Parts PASS FAIL
Corner Posts
Where fitted, are the corner posts secure without excessive wear?
Are the corner posts free from rust, dents or deep scratches?
Are the corner post channels straight, free from rust and free from damage?
Side Panels
Are the side panels still straight?
Is there excessive play in the side panels when fitted?
Are there any dents, signs of rust or deep scratches present in the frame for the side panels?
If using mesh side panels, are there any signs or rust or corrosion?
If using mesh side panels, are there any breaks or damage to the welds?
If using plastic side panels, is the plastic still in good condition without cracks or breaks?
If using plastic side panels, are all rivets still present and free from rust or damage?
Misc PASS FAIL
Corner Bumpers
Are corner bumpers mounted securely?
Are mounting rivets still intact and without sharps?
Are mounting rivets free of rust?
/modify-this-product/
Product Code Wheel Option: Size: Weight: Current Stock: Price (Ex. VAT)
HI-T500-SS-1260-PN 500kg Air Filled 1200mm x 600mm 50kg In Stock £1,995.00
HI-T500-SS-1575-PN 500kg Air Filled 1500mm x 750mm 50kg In Stock £2,195.00
HI-T500-SS-2010-PN 500kg Air Filled 2000mm x 1000mm 50kg In Stock £2,395.00
HI-T1000-SS-1260-PN 1000kg Air Filled 1200mm x 600mm 50kg In Stock £2,195.00
HI-T1000-SS-1575-PN 1000kg Air Filled 1500mm x 750mm 50kg In Stock £2,395.00
HI-T1000-SS-2010-PN 1000kg Air Filled 2000mm x 1000mm 50kg In Stock £2,595.00
HI-T500-SS-1260-PU 500kg Puncture Proof 1200mm x 600mm 50kg In Stock £2,095.00
HI-T500-SS-1575-PU 500kg Puncture Proof 1500mm x 750mm 50kg In Stock £2,295.00
HI-T500-SS-2010-PU 500kg Puncture Proof 2000mm x 1000mm 50kg In Stock £2,395.00
HI-T1000-SS-1260-PU 1000kg Puncture Proof 1200mm x 600mm 50kg In Stock £2,195.00
HI-T1000-SS-1575-PU 1000kg Puncture Proof 1500mm x 750mm 50kg In Stock £2,395.00
HI-T1000-SS-2010-PU 1000kg Puncture Proof 2000mm x 1000mm 50kg In Stock £2,595.00
