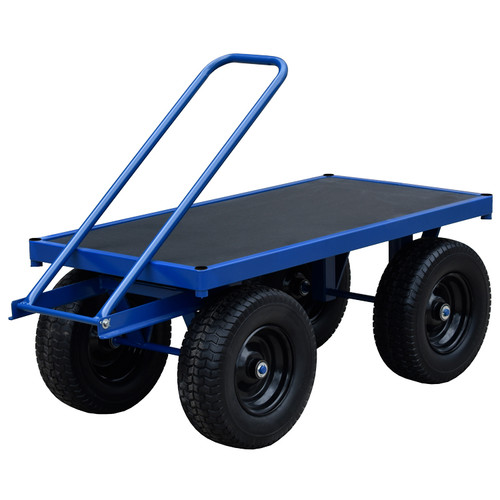

Our Industrial 1000kg Turntable Trolley has earned the nickname the 'BIG BOY' thanks to its heavy duty design, reinforced structural strength and high UDL capacity. Often also referred to as a tow trailer, these turntable platform trucks are designed to be pulled along behind the operator using the handle that steers the front two wheels.

Industrial 1000kg Capacity

This turntable trolley is designed to take heavy loads and is mounted on our own specially designed BIG MUMMA tyres. Each one of these 400mm tyres can safely take up to 330kg by themselves, providing a safe rating above and beyond 1000kg on 4 wheels. Mounted in fully welded and reinforced hubs, these wheels are fitted with a smooth rolling bearing and mounted on a solid steel 20mm axle. Both Axles are reinforced by a combination of different steel supports to provide even weight distribution over the chassis.

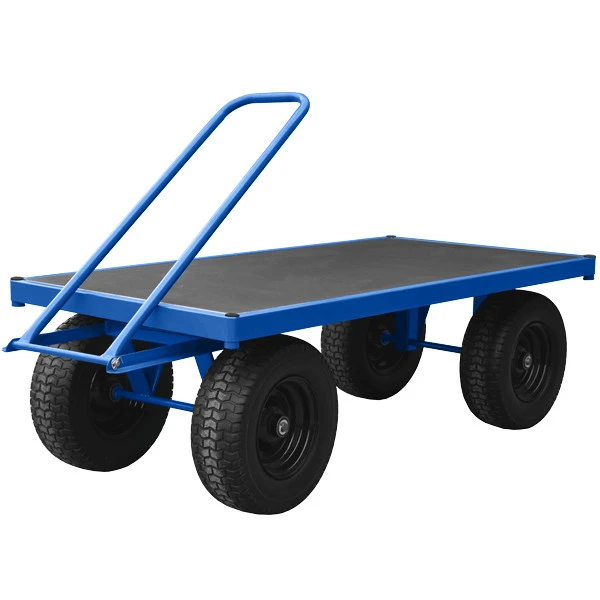

Heavy Duty Construction

This turntable trolley uses our tried and tested method of using a reinforced laser cut single piece box section for the exterior of the frame which gives far stronger structural support than just angle iron used by so many others on the market. The trolley is also given a premium quality powder coat finish, preventing rust and providing far greater resistance to impacts, scratches and marks. It's not only a work horse of a trolley but also a beautiful piece of equipment. Like all of our trolleys the Big Boy really is built to last, and so the trolley has a 5 year warranty.

Upgrading Our Traditional Design

The trolley uses our classic HIT1000 Turntable Trolley design but features a range of upgrades. The first of these upgrades is improving the base, replacing the standard weatherproof 18mm ply with a premium quality impact and weather resistant Non-Slip phenolic board. There are also vast improvements to the turntable head and the handle providing even greater stability and a reliable turntable-style steering mechanism.

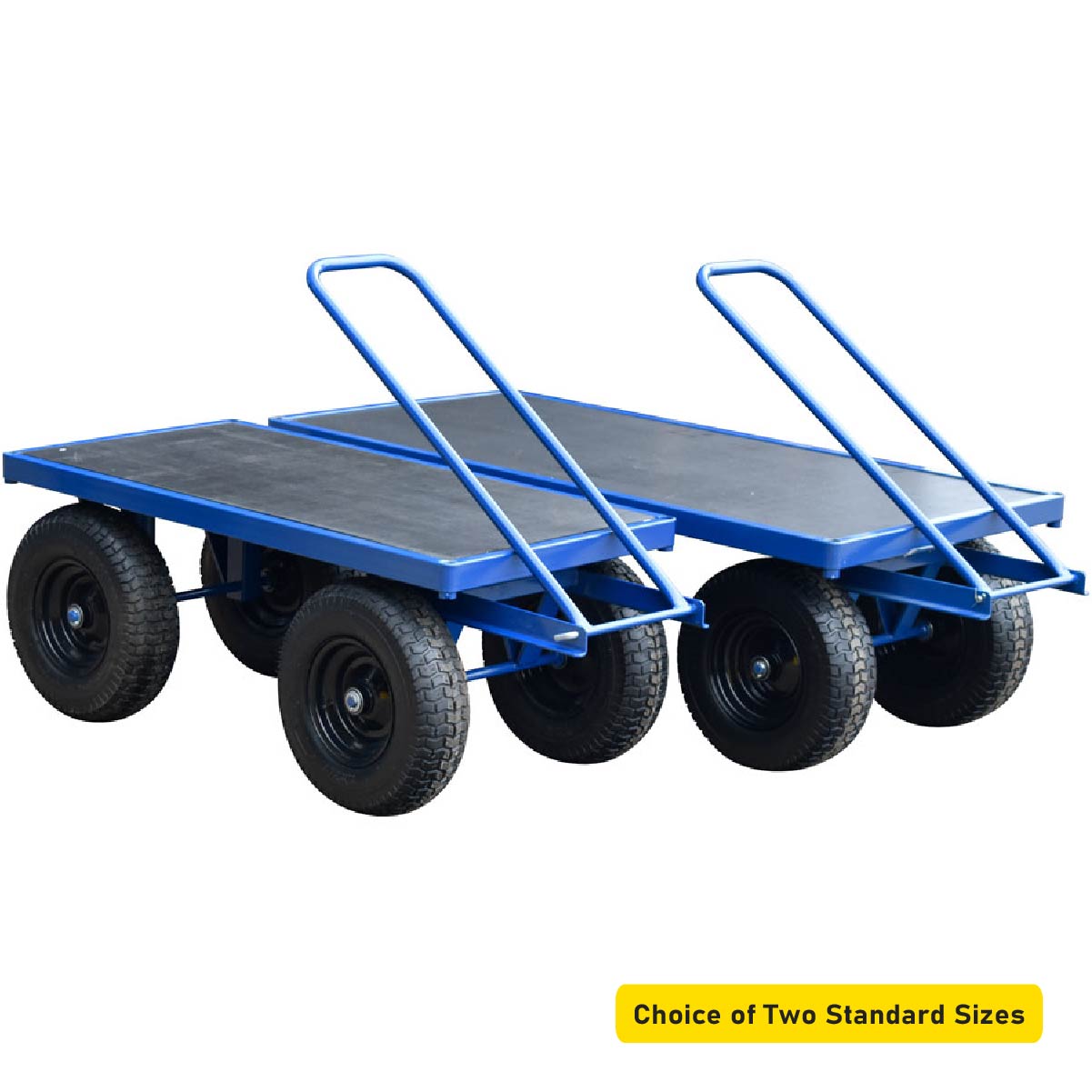

Size Options and Side Panel Kits

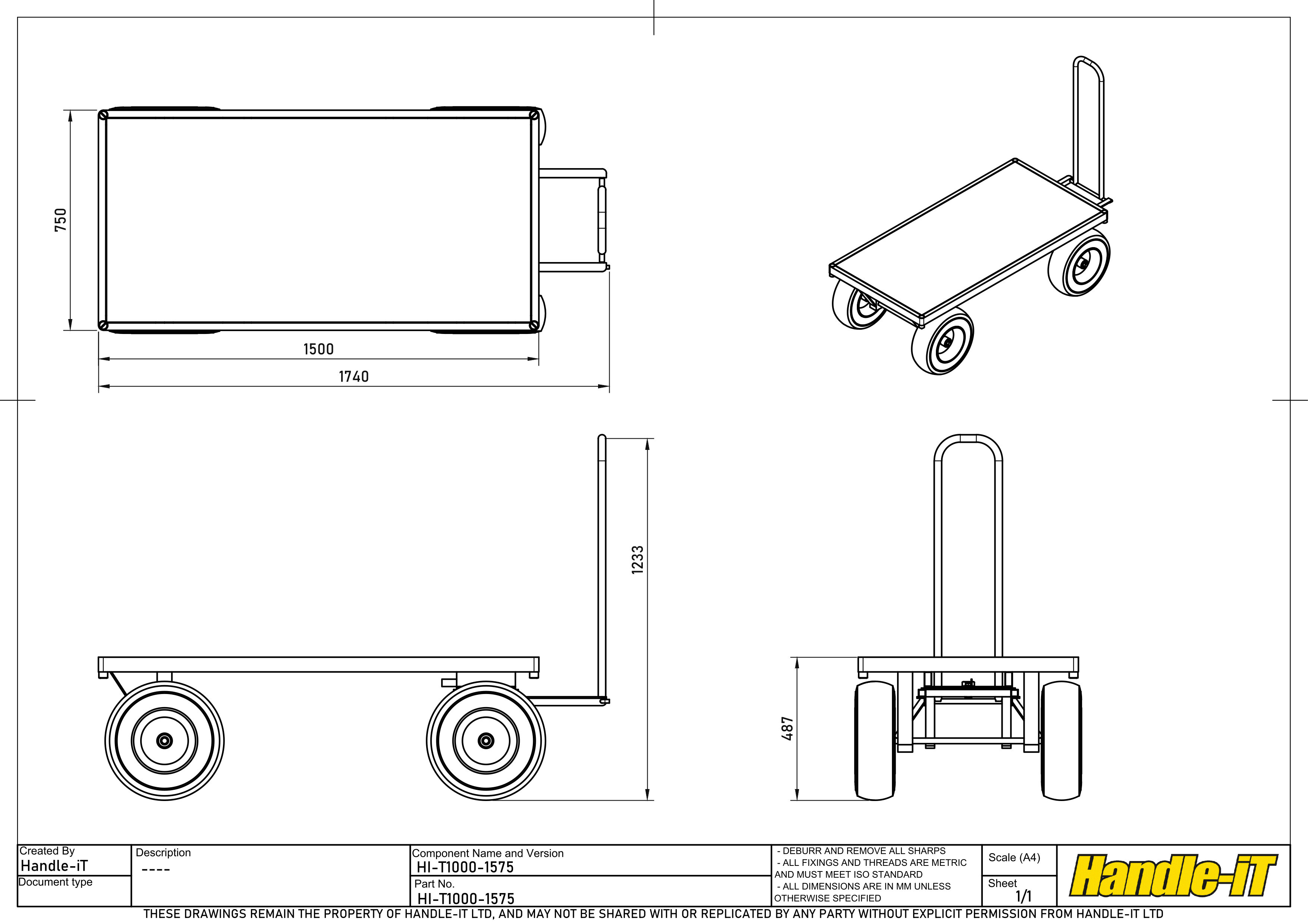

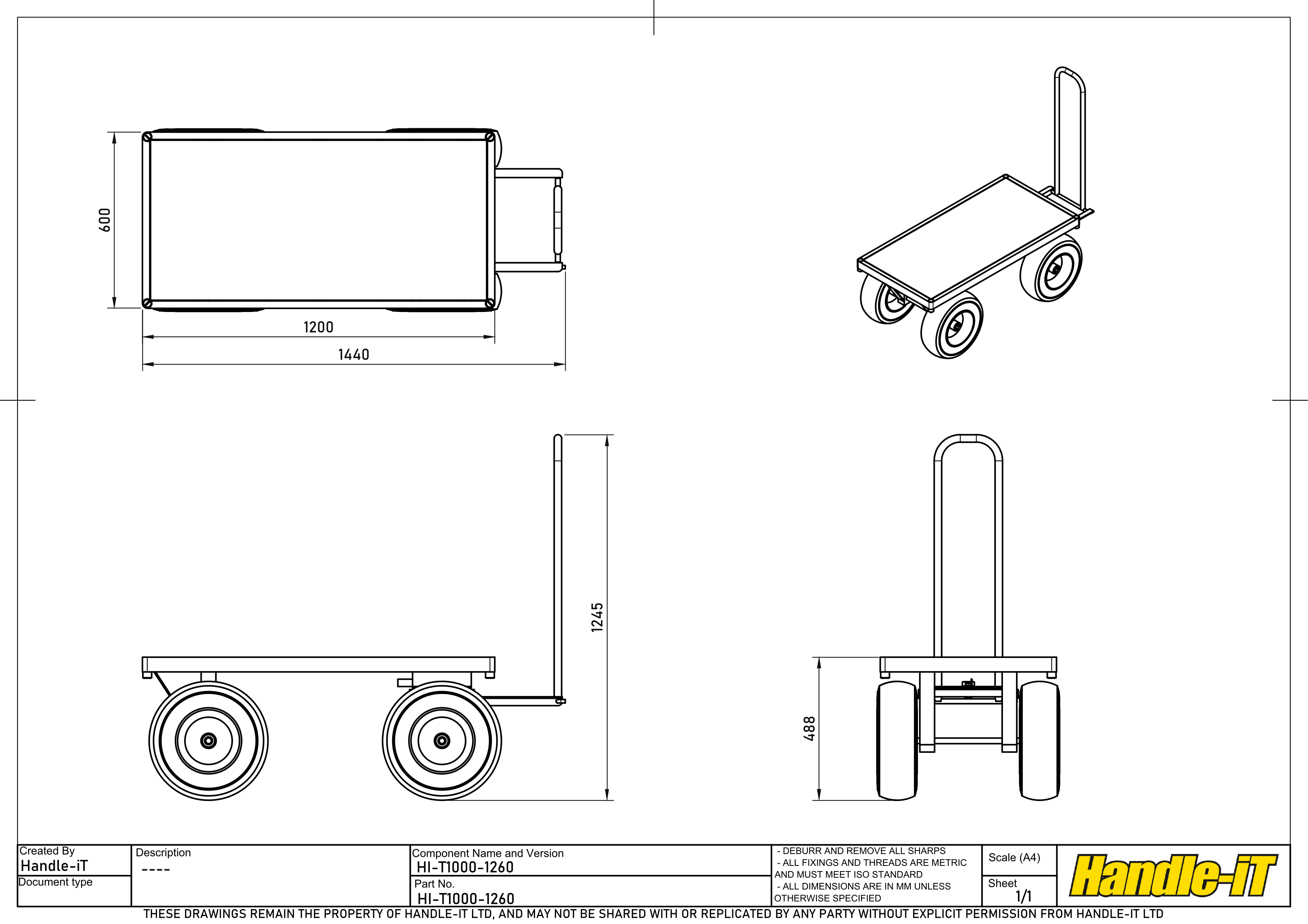

Available with base sizes of either 1200mm x 600mm, or 1500mm x 750mm, The corners are also reinforced with a spigot which allows fitting one of our removable side panel kits, designed for easy fitting or removing of sides for better securing loads. The spigots can also be used for other other optional extras and bespoke customisation

Base Size Options:
1200x600mm or 1500x750mm
Base Height:
Wheel Diameter:
Wheel Options:
Pneumatic Air-Filled / Polyurethane Blown Foam

Product Maintenance

Wheels and Castors PASS FAIL
Is the tyre tread condition good?
Are there any tears or cracks in the surface of the tyre?
Wheel Hub/Core
Are nuts & bolts on cores tight?
Are wheel cores in good condition without chips, dents, cracks or buckles?
If steel, is there any rust or corrosion?
Wheel Bearing
Is there any sign of rust on bearings?
Are the bearings straight into the hub?
Is there excess play in the bearing?
Do the wheels roll smoothly?
Are all foreign bodies removed from the bearings?
Pneumatic Tyres
Are the tyres fully all inflated equally and at the recommended tyre pressure?
Is there any wear on valves?
Are all valve caps in place?
Are there any bulges?
Axle Mounted
Are all end caps and split pins in place?
Is there lateral play on the wheels?
Are all foreign bodies removed from the axle?
Are there are any fractures on the axles?
Check there are any fractures on the axles supports?
Grips and Handles PASS FAIL
Is the handle rust fee?
Are there any cracks or visible damage to any welds?
Is there excessive play in the handle?
Is the handle free from any significant dents, or deep scratches?
Are there any bends in the handle not present at point of manufacture?
Are all the correct fixing all in place?
Are all the fixings rust free?
Is there any wear on the fixing holes?
Frame and Chassis PASS FAIL
Is the frame and chassis free from rust and excessive imperfections?
Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust?
Is the frame and chassis free from buckles?
Are there any dents, chips or tears in the frame?
Are all fixings, nuts, bolts, slit pins, washers, roll pins in place?
Base Platform
Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage?
Are the corner spigots present, and firmly secured?
Do the corner spigots still have the retaining tabs on the bottom?
Where fitted, are endcaps still present and undamaged?
Removable Parts PASS FAIL
Corner Posts
Where fitted, are the corner posts secure without excessive wear?
Are the corner posts free from rust, dents or deep scratches?
Are the corner post channels straight, free from rust and free from damage?
Side Panels
Are the side panels still straight?
Is there excessive play in the side panels when fitted?
Are there any dents, signs of rust or deep scratches present in the frame for the side panels?
If using mesh side panels, are there any signs or rust or corrosion?
If using mesh side panels, are there any breaks or damage to the welds?
If using plastic side panels, is the plastic still in good condition without cracks or breaks?
If using plastic side panels, are all rivets still present and free from rust or damage?
Corner Bumpers
Are corner bumpers mounted securely?
Are mounting rivets still intact and without sharps?
Are mounting rivets free of rust?
Product Code Size Wheel Type Stock Price (Ex. VAT)
HI-T1000-1260-PP-PN 1200mm x 600mm Air-Filled Pneumatic Wheel In Stock £344.00
HI-T1000-1260-PP-PU 1200mm x 600mm Polyurethane Puncture Proof Wheel In Stock £424.00
HI-T1000-1575-PP-PN 1500mm x 750mm Air-Filled Pneumatic Wheel In Stock £444.00
HI-T1000-1575-PP-PU 1500mm x 750mm Polyurethane Puncture Proof Wheel In Stock £524.00
