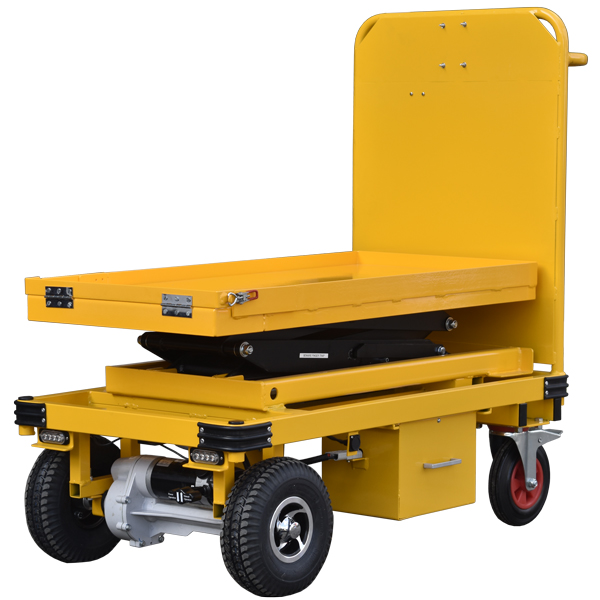

Powered Adjustable Lift Table Trolley, a new addition to our powered trolley range, this Powered Adjustable Lift Table Trolley is designed alongside our friends at Eaton Aerospace to enable swift and safe charging of machine tools. A great asset that not only reduces strains or stresses from lifting heavy tooling into CNC milling machines. The trolley doesn’t just help keep the operator safe, but the tooling also is protected for dropping or rough loading. With the adjustable height table lowering to the correct height for collection of the tooling with a stroke between 460mm -1490mm, this was the perfect solution and designed especially for their operation.
User Interface With an ergonomically positioned handle and robust user interface, the butterfly throttle is perfectly positioned to provide 400w of high torque power directly through the transaxle. Intelligent battery indicators give clear LED light instruction to tell you the exact state of your battery charge, with a 20km range between charges this lets you know exactly when you need to return to base for a charge or battery swap. The variable speed adjustment allows you to set the trolley speed directly on the operator controls, allowing the operator to restrict the speed in certain areas. For instance, where there is a high volume of pedestrians to increase safety, and for further control, this parameter can be controlled and set at factory so the speed can be set anywhere between 1 min - 6 max kmph. The heavy-duty industrial steel casing for the user interface is IP54 Rated and then covered with a further moulded Perspex cover. Finally, the anti-trap button perfectly positioned so that if it were to hit the operator, the trolley would automatically brake and go into safety mode so that it couldn’t be moved without reset, stopping any operator getting trapped.
With the boarded surround keeping your product safe and sound, it has 18mm WBP plywood surface, mounted in a picture frame constructed from 25mm x 5mm angle iron, giving a flush surface. The base unit is laser cut from a single piece of box section for additional strength and a curvaceous corner that is kinder to any ankles or walls that they may encounter compared to a mitred frame, and considerably stronger that a pressed sheet steel base. Underside, the battery is fully encased in a 2mm thick steel box, eliminating the risk of damage to any lead acid battery or even worse risking thermal runaway from a pierced lithium battery. The whole unit is controlled by our Curtis Microprocessors which is where the clever bit happens, controlling all the parameters within the trolley, acceleration, max speed, regenerative braking characteristics, amber warning beacons, even the audible warnings. Thyristor speed control system ensures the user is in total control. The more pressure you apply, the faster the trolley will move, reduce the pressure and the speed will reduce accordingly. There is no steeping through power steeps that you would get through a transistor control, smooth all the way.
As the HI-POW powered platform trucks and trolleys is designed and manufactured here in the UK, if you want something a little different, just call the team and we can get the design together for you.
For more information, take the link to our Powered Trolleys info page, or contact the team on 01803 875 222 or at sales@handle-it.com
Powered Trolley Training is now available on-site powered trolley operation training for anywhere in the UK, or take advantage of our training centre based here in the tranquillity of the Southwest. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
01803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com
Motorised Adjustable Lift Table Trolley
Availability:: Made to Order. Contact the team for lead time.
Specification
| Capacity | 300kg |
| Chassis Material | Steel |
| Overall Length | 1150mm |
| Overall Width | 600mm |
| Overall Height | 1165mm |
| Wheel Configuration | 2x Solid Swivel, 2x 254mm Pneumatic |
| Base Length | 900mm |
| Base Width | 500mm |
Product Details
Powered Adjustable Lift Table Trolley, a new addition to our powered trolley range, this Powered Adjustable Lift Table Trolley is designed alongside our friends at Eaton Aerospace to enable swift and safe charging of machine tools. A great asset that not only reduces strains or stresses from lifting heavy tooling into CNC milling machines. The trolley doesn’t just help keep the operator safe, but the tooling also is protected for dropping or rough loading. With the adjustable height table lowering to the correct height for collection of the tooling with a stroke between 460mm -1490mm, this was the perfect solution and designed especially for their operation.
User Interface With an ergonomically positioned handle and robust user interface, the butterfly throttle is perfectly positioned to provide 400w of high torque power directly through the transaxle. Intelligent battery indicators give clear LED light instruction to tell you the exact state of your battery charge, with a 20km range between charges this lets you know exactly when you need to return to base for a charge or battery swap. The variable speed adjustment allows you to set the trolley speed directly on the operator controls, allowing the operator to restrict the speed in certain areas. For instance, where there is a high volume of pedestrians to increase safety, and for further control, this parameter can be controlled and set at factory so the speed can be set anywhere between 1 min - 6 max kmph. The heavy-duty industrial steel casing for the user interface is IP54 Rated and then covered with a further moulded Perspex cover. Finally, the anti-trap button perfectly positioned so that if it were to hit the operator, the trolley would automatically brake and go into safety mode so that it couldn’t be moved without reset, stopping any operator getting trapped.
With the boarded surround keeping your product safe and sound, it has 18mm WBP plywood surface, mounted in a picture frame constructed from 25mm x 5mm angle iron, giving a flush surface. The base unit is laser cut from a single piece of box section for additional strength and a curvaceous corner that is kinder to any ankles or walls that they may encounter compared to a mitred frame, and considerably stronger that a pressed sheet steel base. Underside, the battery is fully encased in a 2mm thick steel box, eliminating the risk of damage to any lead acid battery or even worse risking thermal runaway from a pierced lithium battery. The whole unit is controlled by our Curtis Microprocessors which is where the clever bit happens, controlling all the parameters within the trolley, acceleration, max speed, regenerative braking characteristics, amber warning beacons, even the audible warnings. Thyristor speed control system ensures the user is in total control. The more pressure you apply, the faster the trolley will move, reduce the pressure and the speed will reduce accordingly. There is no steeping through power steeps that you would get through a transistor control, smooth all the way.
As the HI-POW powered platform trucks and trolleys is designed and manufactured here in the UK, if you want something a little different, just call the team and we can get the design together for you.
For more information, take the link to our Powered Trolleys info page, or contact the team on 01803 875 222 or at sales@handle-it.com
Powered Trolley Training is now available on-site powered trolley operation training for anywhere in the UK, or take advantage of our training centre based here in the tranquillity of the Southwest. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Stock | Price (Ex. VAT) |
|---|---|---|
| HI-POW-LWBT | In Stock |
- Capacity:
- 300kg
- Chassis Material:
- Steel
- Overall Length:
- 1150mm
- Overall Width:
- 600mm
- Overall Height:
- 1165mm
- Wheel Configuration:
- 2x Solid Swivel, 2x 254mm Pneumatic
- Base Length:
- 900mm
- Base Width:
- 500mm
