Electric Powered Flatbed Trolley, part of our HI-POW range of powered trolleys, manufactured here in the Southwest. As the pressures to meet and exceed safety requirements, keeping up with efficiency and productivity demands grows. The more Handle-iT’s Hi-POW high powered platform trucks and trolleys have revolutionised many of the UK and the world largest companies, the reviews and blog posts over the past 20 years speak volumes for our experience in this range. From Google to The King, from Coca Cola through to Astra Zeneca and over 80 NHS trusts and Universities, they all can’t be wrong. These Powered Trolleys with 3 Shelves have become an integral part of many NHS trusts up and down the country, with the shelves offering great storage and carrying capacity whilst the powered drive system reduces fatigue, strain and pain, and significantly increases productivity. With a single charge providing as much as 24km range the HI-POW range does what it says, provides high power all day every day.
User Interface With an ergonomically positioned handle and robust user interface, the butterfly throttle is perfectly positioned to provide 400w of high torque power directly through the transaxle. Intelligent battery indicators give clear LED light instruction to tell you the exact state of your battery charge, with a 20km range between charges this lets you know exactly when you need to return to base for a charge or battery swap. The variable speed adjustment allows you to set the trolley speed directly on the operator controls, allowing the operator to restrict the speed in certain areas. For instance, where there is a high volume of pedestrians to increase safety, and for further control, this parameter can be controlled and set at factory so the speed can be set anywhere between 1 min - 6 max kmph. The heavy-duty industrial steel casing for the user interface is IP54 Rated and then covered with a further moulded Perspex cover. Finally, the anti-trap button perfectly positioned so that if it were to hit the operator, the trolley would automatically brake and go into safety mode so that it couldn’t be moved without reset, stopping any operator getting trapped.
With the boarded surround keeping your product safe and sound, it has 18mm WBP plywood surface, mounted in a picture frame constructed from 25mm x 5mm angle iron, giving a flush surface. The base unit is laser cut from a single piece of box section for additional strength and a curvaceous corner that is kinder to any ankles or walls that they may encounter compared to a mitred frame, and considerably stronger that a pressed sheet steel base. Underside, the battery is fully encased in a 2mm thick steel box, eliminating the risk of damage to any lead acid battery or even worse risking thermal runaway from a pierced lithium battery. The whole unit is controlled by our Curtis Microprocessors which is where the clever bit happens, controlling all the parameters within the trolley, acceleration, max speed, regenerative braking characteristics, amber warning beacons, even the audible warnings. Thyristor speed control system ensures the user is in total control. The more pressure you apply, the faster the trolley will move, reduce the pressure and the speed will reduce accordingly. There is no steeping through power steeps that you would get through a transistor control, smooth all the way.
As the HI-POW powered platform trucks and trolleys is designed and manufactured here in the UK, if you want something a little different, just call the team and we can get the design together for you.
For more information, take the link to our Powered Trolleys info page, or contact the team on 01803 875 222 or at sales@handle-it.com
Powered Trolley Training is now available on-site powered trolley operation training for anywhere in the UK or take advantage of our training centre based here in the tranquillity of the Southwest. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com
Electric Powered Flatbed Trolley
Availability:: Contact the team for lead time
Specification
| Bed Length | 1200mm / 1500mm |
| Bed Width | 600mm / 700mm / 800mm |
| Motor Wheels | 2x 254mm Pneumatic Tyres |
| Rear Wheels | 2x 200mm Swivel Castors with Black Crumb Rubber Wheels |
| Chassis Warranty | 5 Years |
| Electronics Warranty | 12 Months |
| Capacity | 500kg |
| Overall height | 1150mm |
| Handle Height | 1030mm |
| Base Height | 346mm |
| Chassis Material | Steel |
| Base Material | 18mm Weather & Boil Proof Ply |
| Finish | Safety Yellow RAL 1003 |
Product Details
Electric Powered Flatbed Trolley, part of our HI-POW range of powered trolleys, manufactured here in the Southwest. As the pressures to meet and exceed safety requirements, keeping up with efficiency and productivity demands grows. The more Handle-iT’s Hi-POW high powered platform trucks and trolleys have revolutionised many of the UK and the world largest companies, the reviews and blog posts over the past 20 years speak volumes for our experience in this range. From Google to The King, from Coca Cola through to Astra Zeneca and over 80 NHS trusts and Universities, they all can’t be wrong. These Powered Trolleys with 3 Shelves have become an integral part of many NHS trusts up and down the country, with the shelves offering great storage and carrying capacity whilst the powered drive system reduces fatigue, strain and pain, and significantly increases productivity. With a single charge providing as much as 24km range the HI-POW range does what it says, provides high power all day every day.
User Interface With an ergonomically positioned handle and robust user interface, the butterfly throttle is perfectly positioned to provide 400w of high torque power directly through the transaxle. Intelligent battery indicators give clear LED light instruction to tell you the exact state of your battery charge, with a 20km range between charges this lets you know exactly when you need to return to base for a charge or battery swap. The variable speed adjustment allows you to set the trolley speed directly on the operator controls, allowing the operator to restrict the speed in certain areas. For instance, where there is a high volume of pedestrians to increase safety, and for further control, this parameter can be controlled and set at factory so the speed can be set anywhere between 1 min - 6 max kmph. The heavy-duty industrial steel casing for the user interface is IP54 Rated and then covered with a further moulded Perspex cover. Finally, the anti-trap button perfectly positioned so that if it were to hit the operator, the trolley would automatically brake and go into safety mode so that it couldn’t be moved without reset, stopping any operator getting trapped.
With the boarded surround keeping your product safe and sound, it has 18mm WBP plywood surface, mounted in a picture frame constructed from 25mm x 5mm angle iron, giving a flush surface. The base unit is laser cut from a single piece of box section for additional strength and a curvaceous corner that is kinder to any ankles or walls that they may encounter compared to a mitred frame, and considerably stronger that a pressed sheet steel base. Underside, the battery is fully encased in a 2mm thick steel box, eliminating the risk of damage to any lead acid battery or even worse risking thermal runaway from a pierced lithium battery. The whole unit is controlled by our Curtis Microprocessors which is where the clever bit happens, controlling all the parameters within the trolley, acceleration, max speed, regenerative braking characteristics, amber warning beacons, even the audible warnings. Thyristor speed control system ensures the user is in total control. The more pressure you apply, the faster the trolley will move, reduce the pressure and the speed will reduce accordingly. There is no steeping through power steeps that you would get through a transistor control, smooth all the way.
As the HI-POW powered platform trucks and trolleys is designed and manufactured here in the UK, if you want something a little different, just call the team and we can get the design together for you.
For more information, take the link to our Powered Trolleys info page, or contact the team on 01803 875 222 or at sales@handle-it.com
Powered Trolley Training is now available on-site powered trolley operation training for anywhere in the UK or take advantage of our training centre based here in the tranquillity of the Southwest. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Size | Stock | Price (Ex. VAT) |
|---|---|---|---|

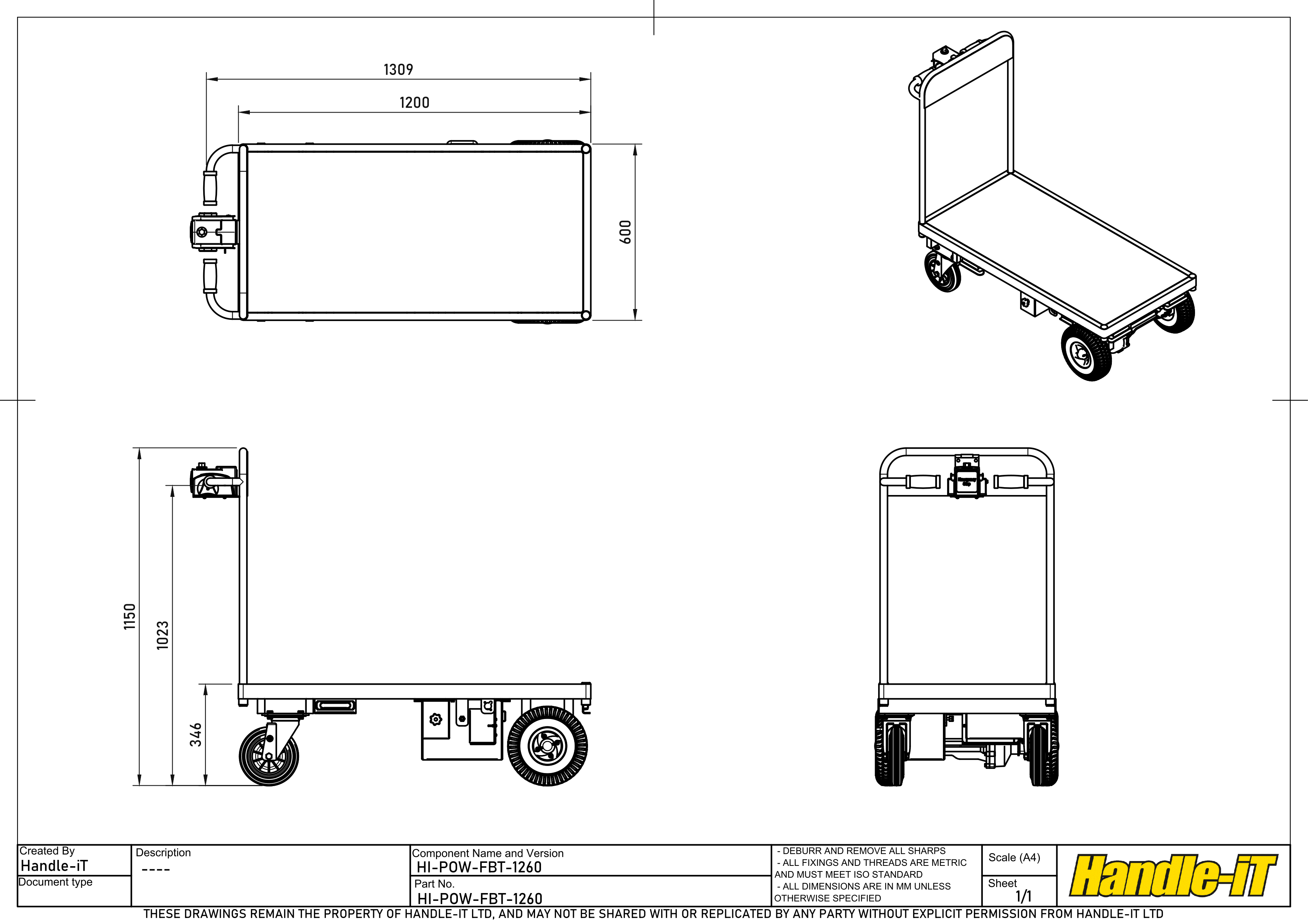

| HI-POW-FBT-1260 | 1200mm x 600mm | In Stock | |

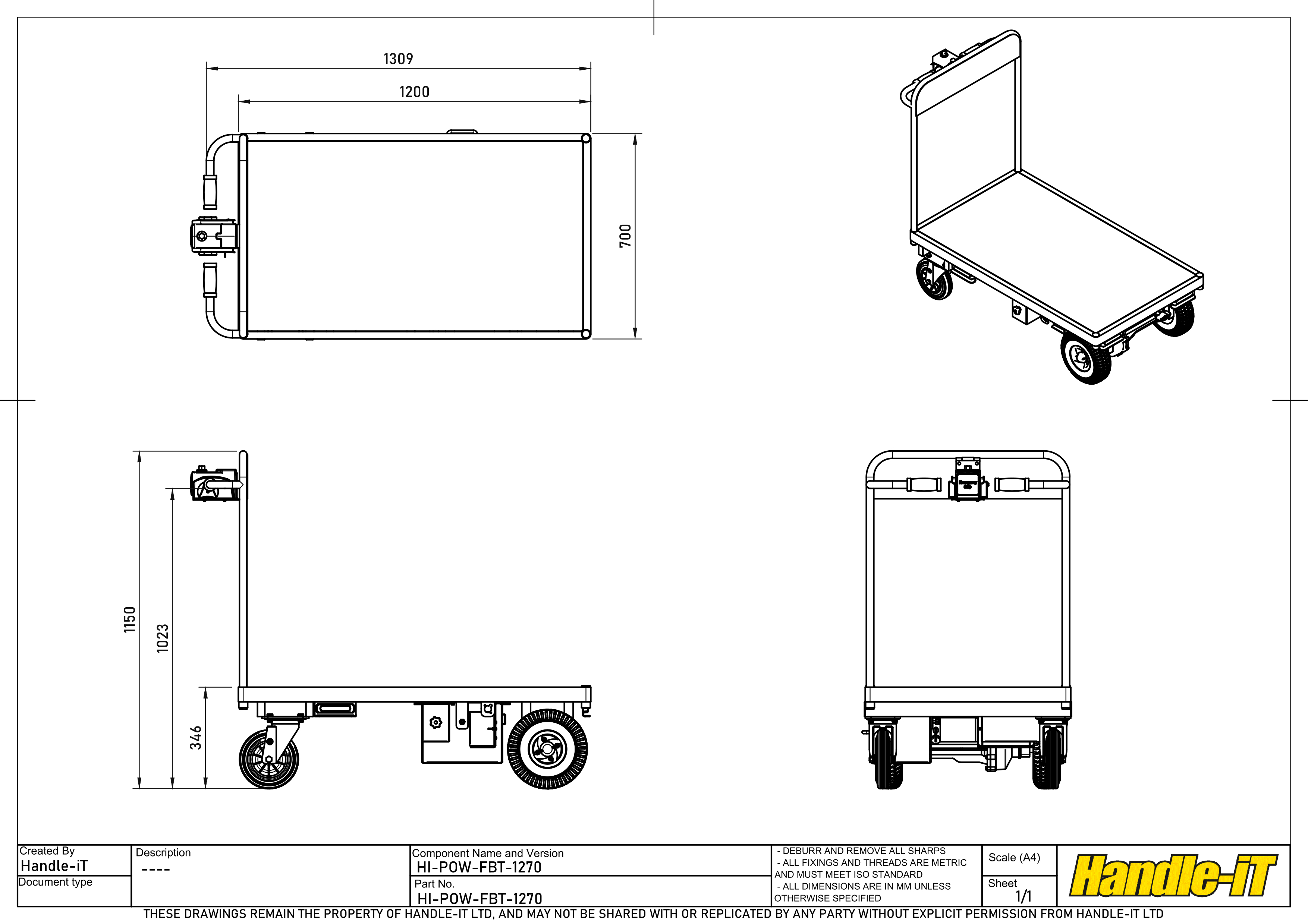

| HI-POW-FBT-1270 | 1200mm x 700mm | In Stock | |

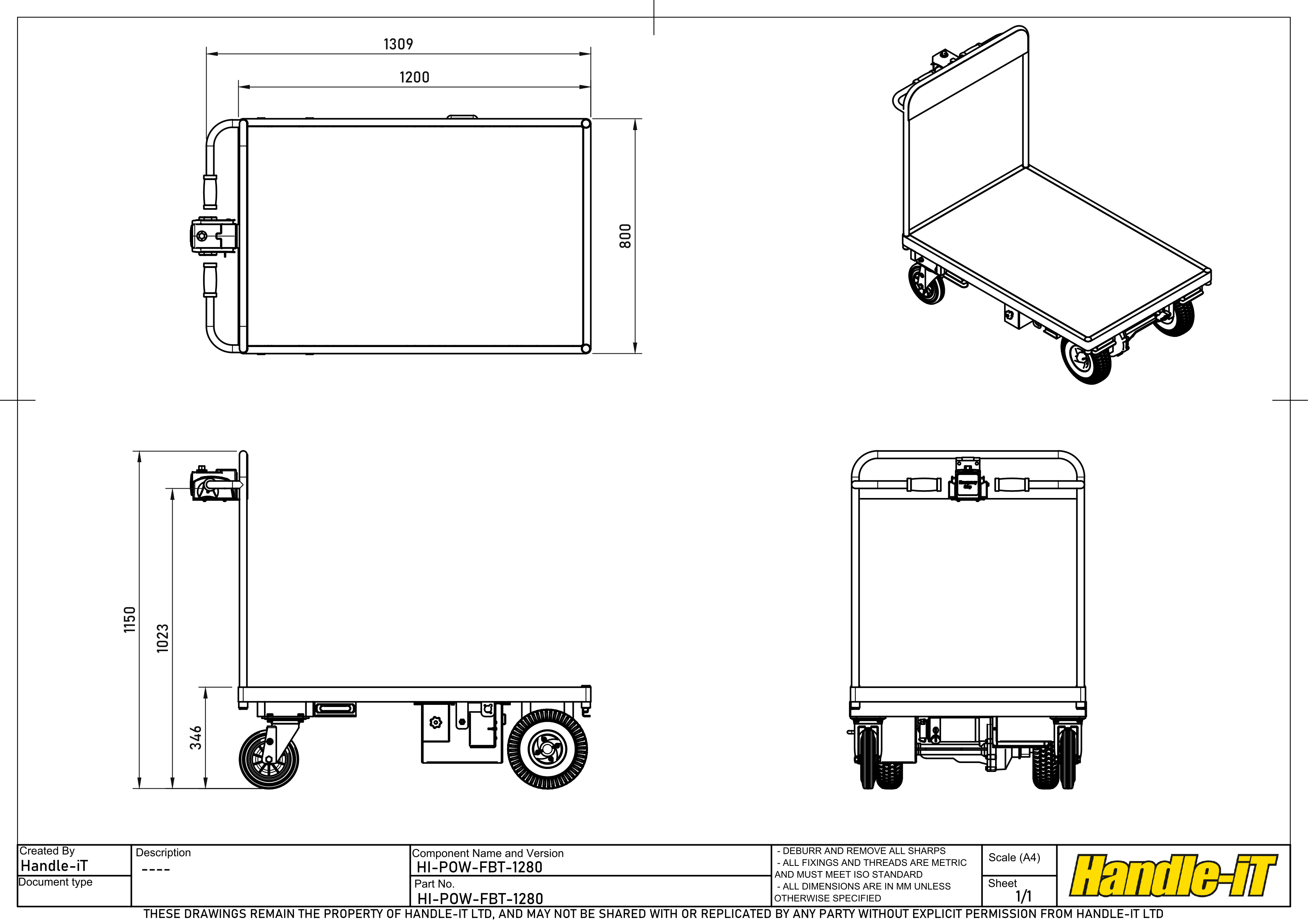

| HI-POW-FBT-1280 | 1200mm x 800mm | In Stock | |

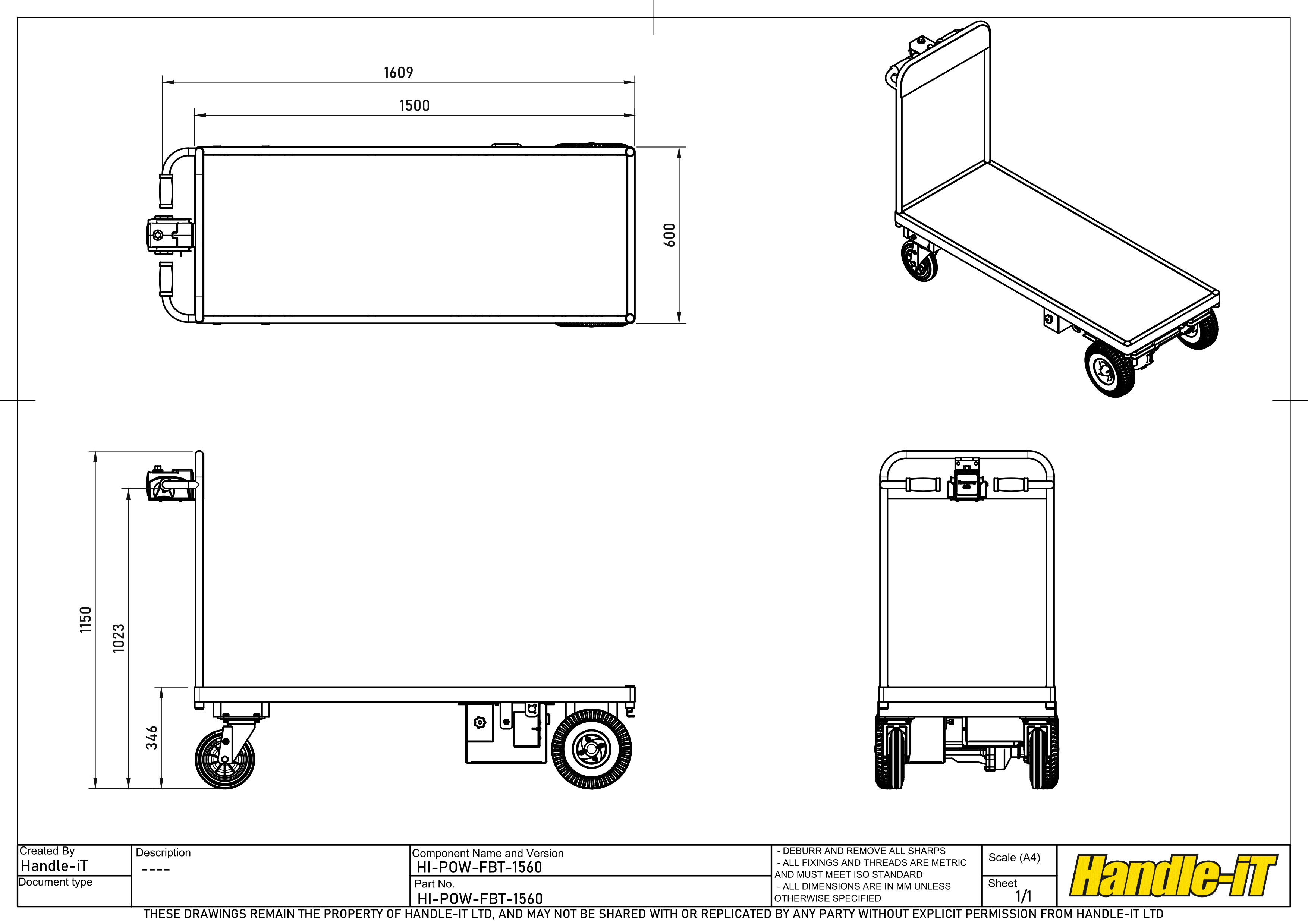

| HI-POW-FBT-1560 | 1500mm x 600mm | In Stock | |
| HI-POW-FBT-1570 | 1500mm x 700mm | In Stock | |

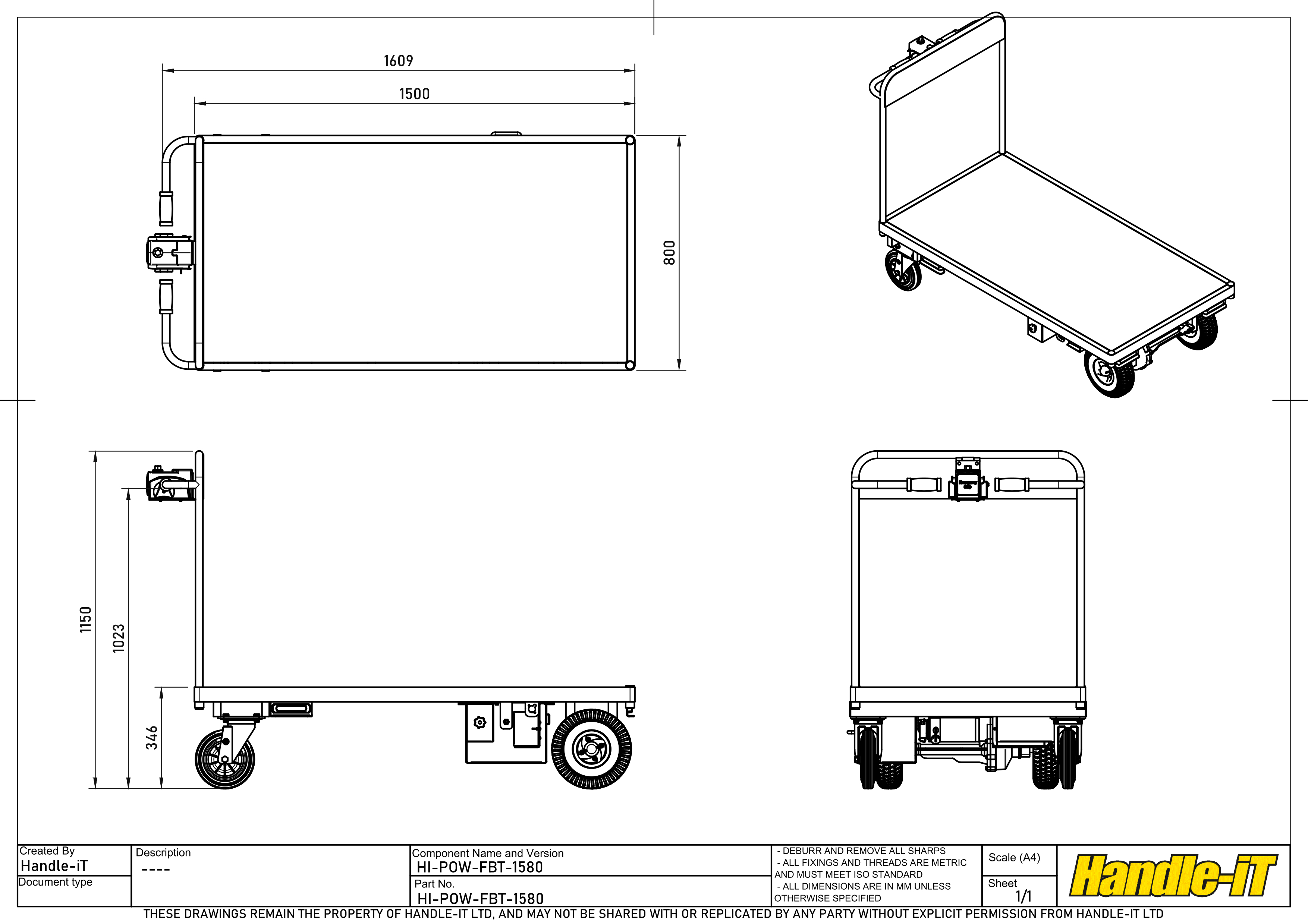

| HI-POW-FBT-1580 | 1500mm x 800mm | In Stock |
- Bed Length:
- 1200mm / 1500mm
- Bed Width:
- 600mm / 700mm / 800mm
- Motor Wheels:
- 2x 254mm Pneumatic Tyres
- Rear Wheels:
- 2x 200mm Swivel Castors with Black Crumb Rubber Wheels
- Chassis Warranty:
- 5 Years
- Electronics Warranty:
- 12 Months
- Capacity:
- 500kg
- Overall height:
- 1150mm
- Handle Height:
- 1030mm
- Base Height:
- 346mm
- Chassis Material:
- Steel
- Base Material:
- 18mm Weather & Boil Proof Ply
- Finish:
- Safety Yellow RAL 1003
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-POW-FBT-1260
Electric Powered Flatbed Trolley
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Pneumatic Tyres | ||
| Are the tyres fully all inflated equally and at the recommended tyre pressure? | ||
| Is there any wear on valves? | ||
| Are all valve caps in place? | ||
| Are there any bulges? | ||
| Castor Mounted | ||
| Are the castor forks straight? | ||
| Are there any scratches or dents in the metal? | ||
| Is there any rust or corrosion? | ||
| Is the main axle bolt secure and free of rust? | ||
| Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
| Are the nuts on any bolts secure and free of rust? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? | ||
| Grips | ||
| Are the grips fixed or tightly on the truck? | ||
| Is the any damage to the grips, splits or crack that may worsen over time? | ||
| If the grips have knuckle guards are they intact? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Removable Parts | PASS | FAIL |
| Corner Posts | ||
| Where fitted, are the corner posts secure without excessive wear? | ||
| Are the corner posts free from rust, dents or deep scratches? | ||
| Are the corner post channels straight, free from rust and free from damage? | ||
| Side Panels | ||
| Are the side panels still straight? | ||
| Is there excessive play in the side panels when fitted? | ||
| Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
| If using mesh side panels, are there any signs or rust or corrosion? | ||
| If using mesh side panels, are there any breaks or damage to the welds? | ||
| If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
| If using plastic side panels, are all rivets still present and free from rust or damage? |
| Powered Components | PASS | FAIL |
| General Operation | ||
| Is the warning beep correctly sounding while in reverse? | ||
| Is the emergancy stop functioning correctly? | ||
| Is the speed control functioning correctly? | ||
| Is the trolley moving smoothly, both forward and in reverse? | ||
| Electrical Fault Indicator | ||
| Is the LED on the control unit steady? If not, this may indicate an electrical fault. Check the HI-POW operation manual for more information. | ||
| Powered Trolley Battery | ||
| Is the unit charging correctly? | ||
| Is the battery correctly secured? | ||
| Is there any sign of battery leaks? | ||
| Powered Trolley Optional Extras | ||
| Are the beacons functioning correctly? | ||
| Does the warning bell/buzzer function correctly? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
-
