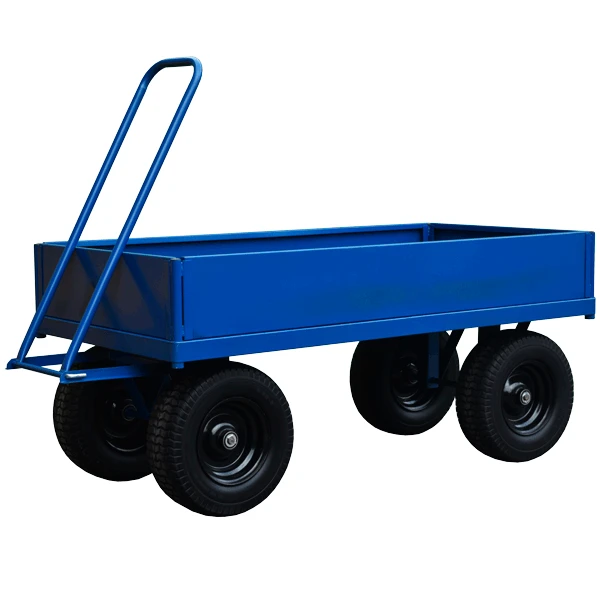

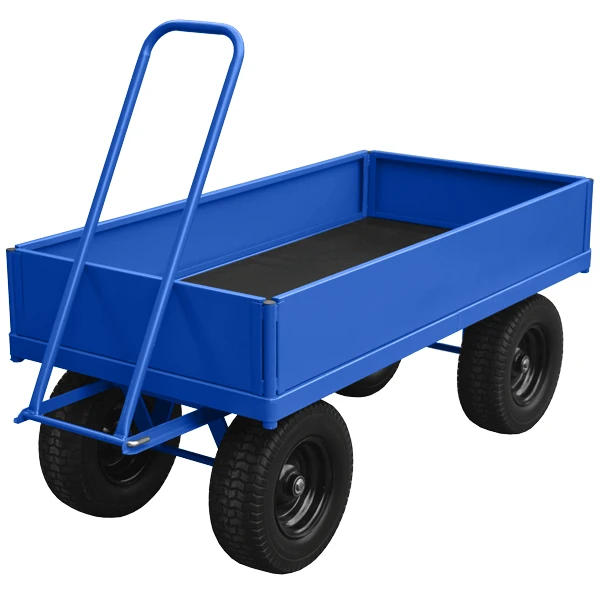

Turntable trolley with steel sides and a 1000kg UDL capacity. Mounted on large 400mm wheels, turntable trailers are designed for use on rougher terrains than their platform truck counterparts. The non-slip phenolic board used on the base provides better grip than simple board, as well as being weather resistant and highly durable.
Industrial Chassis
Building on the traditional turntable truck chassis used in the HIT1000 Turntable Trolley, this steel frame uses heavy duty 25mm x 50mm box section as a base, far stronger than the simple angle iron equivalents. The single piece of box section is laser cut and bent into shape, giving a very clean finish with rounded corners and sturdy and ridged frame that is highly resistant to damage. Thick steel supports are used to brace the axles and distribute weight. Finished off with high quality powder coat paint, the trolley not only looks the part, but does the job too. That's why we provide a 5 Year warranty.
Heavy Duty Tyres
Wheels are important on turntable trolleys, being responsible for the ride quality and often being responsible for the limit to load capacity. This turntable truck uses wheels that have been specially developed for turntable trolleys, reinforcing the hub, the bearing, and the tyres on both pneumatic or puncture proof versions.
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com
Turntable Truck with 200mm Steel Sides | 1000kg Capacity
Availability:: Next Day Delivery Available
Specification
Capacity | 1000kg |
Finish | Industrial Blue (RAL 5010) |
Chassis Material | Steel |
Base Material | Phenolic Board |
Base Height | 485mm |
Base Size Options | 1200mm X 600mm, 1500mm X 750mm |
Wheel Diameter | 405mm |
Item Weight | 71KG |
Product Details
Turntable trolley with steel sides and a 1000kg UDL capacity. Mounted on large 400mm wheels, turntable trailers are designed for use on rougher terrains than their platform truck counterparts. The non-slip phenolic board used on the base provides better grip than simple board, as well as being weather resistant and highly durable.
Industrial Chassis
Building on the traditional turntable truck chassis used in the HIT1000 Turntable Trolley, this steel frame uses heavy duty 25mm x 50mm box section as a base, far stronger than the simple angle iron equivalents. The single piece of box section is laser cut and bent into shape, giving a very clean finish with rounded corners and sturdy and ridged frame that is highly resistant to damage. Thick steel supports are used to brace the axles and distribute weight. Finished off with high quality powder coat paint, the trolley not only looks the part, but does the job too. That's why we provide a 5 Year warranty.
Heavy Duty Tyres
Wheels are important on turntable trolleys, being responsible for the ride quality and often being responsible for the limit to load capacity. This turntable truck uses wheels that have been specially developed for turntable trolleys, reinforcing the hub, the bearing, and the tyres on both pneumatic or puncture proof versions.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
Product Code | Size | Wheel Type | Stock | Price (Ex. VAT) |
---|---|---|---|---|
HI-T1000-1260-PP-PN-SPK | 1200mm x 600mm | Air-Filled Pneumatic Wheel | In Stock | |
HI-T1000-1200-PP-PU-SPK | 1200mm x 600mm | Polyurethane Puncture Proof Wheel | In Stock | |
HI-T1000-1575-PP-PN-SPK | 1500mm x 750mm | Air-Filled Pneumatic Wheel | In Stock | |
HI-T1000-1575-PP-PU-SPK | 1500mm x 750mm | Polyurethane Puncture Proof Wheel | In Stock |
- Capacity:
- 1000kg
- Finish:
- Industrial Blue (RAL 5010)
- Chassis Material:
- Steel
- Base Material:
- Phenolic Board
- Base Height:
- 485mm
- Wheel Diameter:
- 405mm
- Item Weight:
- 71KG
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-T1000-1260-PP-PN-SPK
Turntable Truck with 200mm Steel Sides | 1000kg Capacity
Wheels and Castors | PASS | FAIL |
Tyres | ||
Is the tyre tread condition good? | ||
Are there any tears or cracks in the surface of the tyre? | ||
Wheel Hub/Core | ||
Are nuts & bolts on cores tight? | ||
Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
If steel, is there any rust or corrosion? | ||
Wheel Bearing | ||
Is there any sign of rust on bearings? | ||
Are the bearings straight into the hub? | ||
Is there excess play in the bearing? | ||
Do the wheels roll smoothly? | ||
Are all foreign bodies removed from the bearings? | ||
Pneumatic Tyres | ||
Are the tyres fully all inflated equally and at the recommended tyre pressure? | ||
Is there any wear on valves? | ||
Are all valve caps in place? | ||
Are there any bulges? | ||
Axle Mounted | ||
Are all end caps and split pins in place? | ||
Is there lateral play on the wheels? | ||
Are all foreign bodies removed from the axle? | ||
Are there are any fractures on the axles? | ||
Check there are any fractures on the axles supports? |
Grips and Handles | PASS | FAIL |
General | ||
Is the handle rust fee? | ||
Are there any cracks or visible damage to any welds? | ||
Is there excessive play in the handle? | ||
Is the handle free from any significant dents, or deep scratches? | ||
Are there any bends in the handle not present at point of manufacture? | ||
Fixings | ||
Are all the correct fixing all in place? | ||
Are all the fixings rust free? | ||
Is there any wear on the fixing holes? |
Frame and Chassis | PASS | FAIL |
General | ||
Is the frame and chassis free from rust and excessive imperfections? | ||
Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
Is the frame and chassis free from buckles? | ||
Are there any dents, chips or tears in the frame? | ||
Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
Base Platform | ||
Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
Are the corner spigots present, and firmly secured? | ||
Do the corner spigots still have the retaining tabs on the bottom? | ||
Where fitted, are endcaps still present and undamaged? |
Removable Parts | PASS | FAIL |
Corner Posts | ||
Where fitted, are the corner posts secure without excessive wear? | ||
Are the corner posts free from rust, dents or deep scratches? | ||
Are the corner post channels straight, free from rust and free from damage? | ||
Side Panels | ||
Are the side panels still straight? | ||
Is there excessive play in the side panels when fitted? | ||
Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
If using mesh side panels, are there any signs or rust or corrosion? | ||
If using mesh side panels, are there any breaks or damage to the welds? | ||
If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
If using plastic side panels, are all rivets still present and free from rust or damage? |
Misc | PASS | FAIL |
Corner Bumpers | ||
Are corner bumpers mounted securely? | ||
Are mounting rivets still intact and without sharps? | ||
Are mounting rivets free of rust? |
If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
Please make note of any other issues in the space below: |
Date of Inspection | Operator Signature |
