The Platform Truck with 3 Removable Mesh Sides is part of the Premium Platform Truck Range of mesh sided platform truck and trolleys and they are a modular design trolley that allow multiple configurations. Each trolley can carry one, two or three panels at any one time depending on the load you are carrying. The range can be made to whatever size you require. With handles set at the perfect working height and angled away from the base to eliminate trip hazard. With side panels that are removable in seconds without the need for any tools, nuts or bolts, just great engineering. The laser cut base manufactured from a single piece of 50mm x 25mm box sections formed around the corner post location spigots, creates a beautifully rounded corner rather than a sharp and aggressive mitred corner that will make holes in walls and ankles in the unfortunate event of a collision. Mounted on high quality 200mm diameter wheels as standard, with 2 fixed castors for direction and 2 swivel with brake for manoeuvrability and safety, which will cope with any firm ground. Finished with a hardwearing, scratch resistant, industrial epoxy powder coated finish.
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com

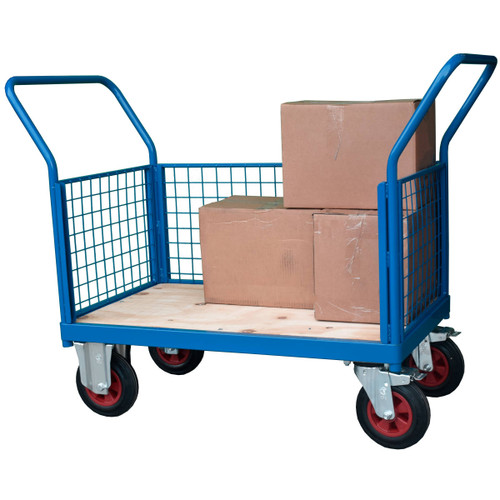

Platform Truck with 3 Removable Mesh Sides
Availability:: Next Day Delivery Available.
Specification
| Capacity | 500kg |
| Base Size Options | 1200mm X 600mm, 1500mm X 750mm, 2000mm X 1000mm |
| Chassis Material | Steel |
| Overall Height | 999mm |
| Finish | Industrial Blue (RAL 5010) |
| Base Height | 296mm |
| Panel Height | 400mm |
| Wheel Diameter | 200mm |
Product Details
The Platform Truck with 3 Removable Mesh Sides is part of the Premium Platform Truck Range of mesh sided platform truck and trolleys and they are a modular design trolley that allow multiple configurations. Each trolley can carry one, two or three panels at any one time depending on the load you are carrying. The range can be made to whatever size you require. With handles set at the perfect working height and angled away from the base to eliminate trip hazard. With side panels that are removable in seconds without the need for any tools, nuts or bolts, just great engineering. The laser cut base manufactured from a single piece of 50mm x 25mm box sections formed around the corner post location spigots, creates a beautifully rounded corner rather than a sharp and aggressive mitred corner that will make holes in walls and ankles in the unfortunate event of a collision. Mounted on high quality 200mm diameter wheels as standard, with 2 fixed castors for direction and 2 swivel with brake for manoeuvrability and safety, which will cope with any firm ground. Finished with a hardwearing, scratch resistant, industrial epoxy powder coated finish.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Size | Stock | Price (Ex. VAT) |
|---|---|---|---|

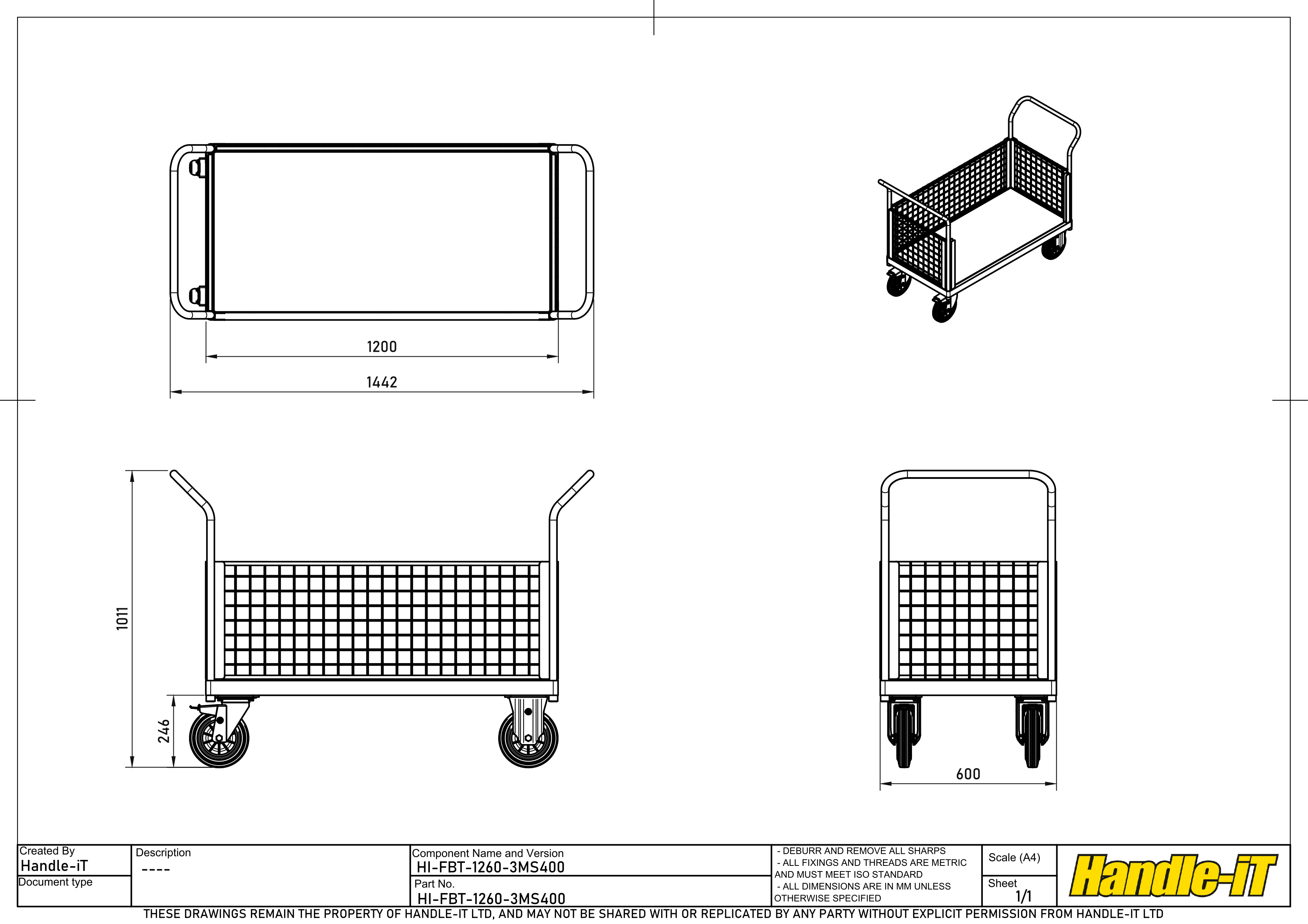

| HI-FBT-1260-3MS400 | 1200mm x 600mm | In Stock | |
| HI-FBT-1575-3MS400 | 1500mm x 750mm | In Stock | |

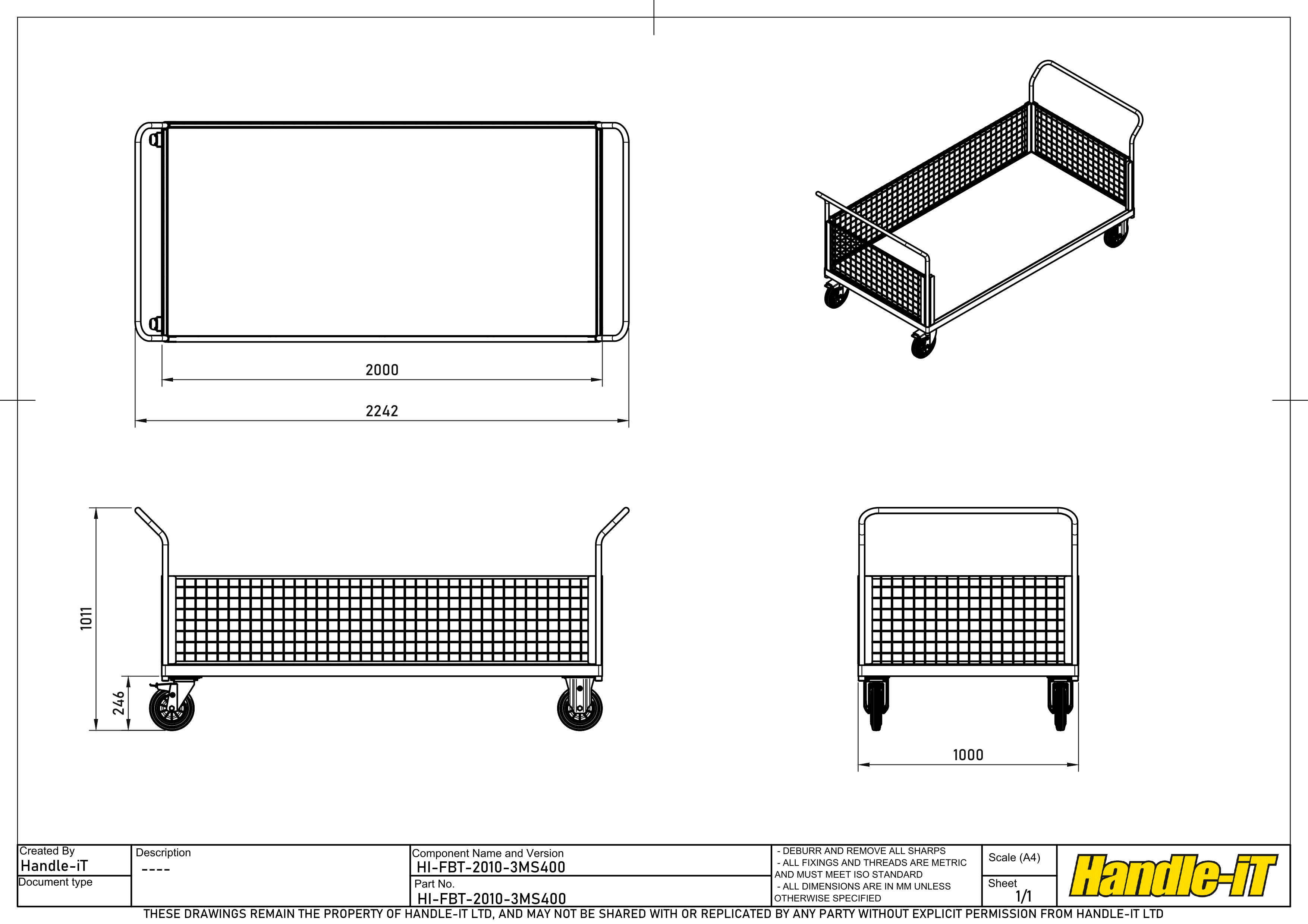

| HI-FBT-2010-3MS400 | 2000mm x 1000mm | In Stock |
- Capacity:
- 500kg
- Chassis Material:
- Steel
- Overall Height:
- 999mm
- Finish:
- Industrial Blue (RAL 5010)
- Base Height:
- 296mm
- Panel Height:
- 400mm
- Wheel Diameter:
- 200mm
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-FBT-1260-3MS400
Platform Truck with 3 Removable Mesh Sides
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Castor Mounted | ||
| Are the castor forks straight? | ||
| Are there any scratches or dents in the metal? | ||
| Is there any rust or corrosion? | ||
| Is the main axle bolt secure and free of rust? | ||
| Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
| Are the nuts on any bolts secure and free of rust? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Removable Parts | PASS | FAIL |
| Corner Posts | ||
| Where fitted, are the corner posts secure without excessive wear? | ||
| Are the corner posts free from rust, dents or deep scratches? | ||
| Are the corner post channels straight, free from rust and free from damage? | ||
| Side Panels | ||
| Are the side panels still straight? | ||
| Is there excessive play in the side panels when fitted? | ||
| Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
| If using mesh side panels, are there any signs or rust or corrosion? | ||
| If using mesh side panels, are there any breaks or damage to the welds? | ||
| If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
| If using plastic side panels, are all rivets still present and free from rust or damage? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
