This Powered Platform Truck is designed to make the users life easier, safer, and more efficient with the use of a powered motor. As with all trolleys from our Powered Trolley Range, this trolley an advanced power system, featuring an easy-to-use control system, and a deadman brake system that locks the trolley in place when not in use.
Electric Powered Operation
With a UDL capacity of 500kg, and a range of up to 24km per charge in good conditions, this trolley can take the pressure off of you and your staff while increasing productivity and efficiency. Thanks to its Thyristor speed control and an advanced Curtis unit, the speed of the trolley is fully adjustable to suit the user and enable maximum control of the trolley at all times with a max speed set to 6km/hr as standard.
Safe and Reliable
Because this trolley has been designed with a focus on safety, the trolley meets both BS/EN1751-3 and EU2006/42 directives. Because this product is made to a high quality, we also offer a 5 Year Warranty on the trolley chassis, as well as a 12 Month Warranty on the electronics.
Custom Modifications
This item is made to your order, and as such is available with a wide range of customisation options, including many from this list of powered trolley extras, as well as anything you can imagine. For more information, take the link to our Powered Trolleys info page.
Powered Trolley Training
We are now offering on-site powered trolley operation training for anywhere in the UK. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com

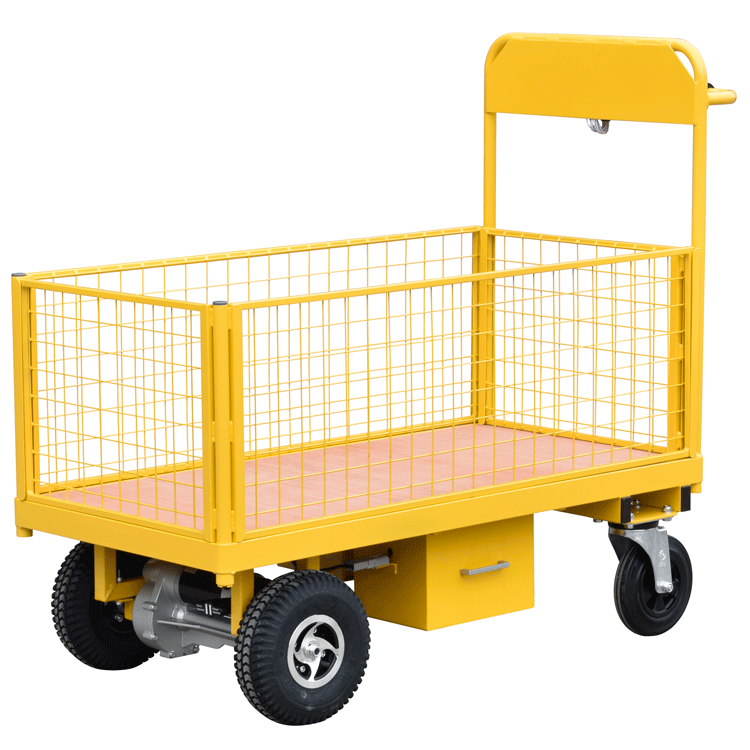

Powered Platform Truck with Removable Mesh Side Panels
Availability:: Made to Order. Contact the team for lead time.
Specification
| Capacity | 500kg |
| Overall Height | 1150mm |
| Handle Height | 1035mm |
| Base Height | 346mm |
| Base Length Options | 1200mm / 1500mm |
| Base Width Options | 600mm / 700mm / 800mm |
| Side Panel Height | 400mm |
| Side Panel Material | Steel Mesh |
| Chassis Material | Steel |
| Chassis Warranty | 5 Years |
| Electronics Warranty | 12 Months |
| Finish | Safety Yellow RAL 1003 |
Product Details
This Powered Platform Truck is designed to make the users life easier, safer, and more efficient with the use of a powered motor. As with all trolleys from our Powered Trolley Range, this trolley an advanced power system, featuring an easy-to-use control system, and a deadman brake system that locks the trolley in place when not in use.
Electric Powered Operation
With a UDL capacity of 500kg, and a range of up to 24km per charge in good conditions, this trolley can take the pressure off of you and your staff while increasing productivity and efficiency. Thanks to its Thyristor speed control and an advanced Curtis unit, the speed of the trolley is fully adjustable to suit the user and enable maximum control of the trolley at all times with a max speed set to 6km/hr as standard.
Safe and Reliable
Because this trolley has been designed with a focus on safety, the trolley meets both BS/EN1751-3 and EU2006/42 directives. Because this product is made to a high quality, we also offer a 5 Year Warranty on the trolley chassis, as well as a 12 Month Warranty on the electronics.
Custom Modifications
This item is made to your order, and as such is available with a wide range of customisation options, including many from this list of powered trolley extras, as well as anything you can imagine. For more information, take the link to our Powered Trolleys info page.
Powered Trolley Training
We are now offering on-site powered trolley operation training for anywhere in the UK. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Size | Stock | Price (Ex. VAT) |
|---|---|---|---|
| HI-POW-1260-4MS400 | 1200mm x 600mm | In Stock | |
| HI-POW-1270-4MS400 | 1200mm x 700mm | In Stock | |
| HI-POW-1280-4MS400 | 1200mm x 800mm | In Stock | |
| HI-POW-1560-4MS400 | 1500mm x 600mm | In Stock | |
| HI-POW-1570-4MS400 | 1500mm x 700mm | In Stock | |
| HI-POW-1580-4MS400 | 1500mm x 800mm | In Stock |
- Capacity:
- 500kg
- Overall Height:
- 1150mm
- Handle Height:
- 1035mm
- Base Height:
- 346mm
- Side Panel Height:
- 400mm
- Side Panel Material:
- Steel Mesh
- Chassis Material:
- Steel
- Chassis Warranty:
- 5 Years
- Electronics Warranty:
- 12 Months
- Finish:
- Safety Yellow RAL 1003
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-POW-1260-4MS400
Powered Platform Truck with Removable Mesh Side Panels
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Pneumatic Tyres | ||
| Are the tyres fully all inflated equally and at the recommended tyre pressure? | ||
| Is there any wear on valves? | ||
| Are all valve caps in place? | ||
| Are there any bulges? | ||
| Castor Mounted | ||
| Are the castor forks straight? | ||
| Are there any scratches or dents in the metal? | ||
| Is there any rust or corrosion? | ||
| Is the main axle bolt secure and free of rust? | ||
| Are the four bolts that affix the castor to the frame firmly secured and free of rust? | ||
| Are the nuts on any bolts secure and free of rust? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? | ||
| Grips | ||
| Are the grips fixed or tightly on the truck? | ||
| Is the any damage to the grips, splits or crack that may worsen over time? | ||
| If the grips have knuckle guards are they intact? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Removable Parts | PASS | FAIL |
| Corner Posts | ||
| Where fitted, are the corner posts secure without excessive wear? | ||
| Are the corner posts free from rust, dents or deep scratches? | ||
| Are the corner post channels straight, free from rust and free from damage? | ||
| Side Panels | ||
| Are the side panels still straight? | ||
| Is there excessive play in the side panels when fitted? | ||
| Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
| If using mesh side panels, are there any signs or rust or corrosion? | ||
| If using mesh side panels, are there any breaks or damage to the welds? | ||
| If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
| If using plastic side panels, are all rivets still present and free from rust or damage? |
| Powered Components | PASS | FAIL |
| General Operation | ||
| Is the warning beep correctly sounding while in reverse? | ||
| Is the emergancy stop functioning correctly? | ||
| Is the speed control functioning correctly? | ||
| Is the trolley moving smoothly, both forward and in reverse? | ||
| Electrical Fault Indicator | ||
| Is the LED on the control unit steady? If not, this may indicate an electrical fault. Check the HI-POW operation manual for more information. | ||
| Powered Trolley Battery | ||
| Is the unit charging correctly? | ||
| Is the battery correctly secured? | ||
| Is there any sign of battery leaks? | ||
| Powered Trolley Optional Extras | ||
| Are the beacons functioning correctly? | ||
| Does the warning bell/buzzer function correctly? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
-
