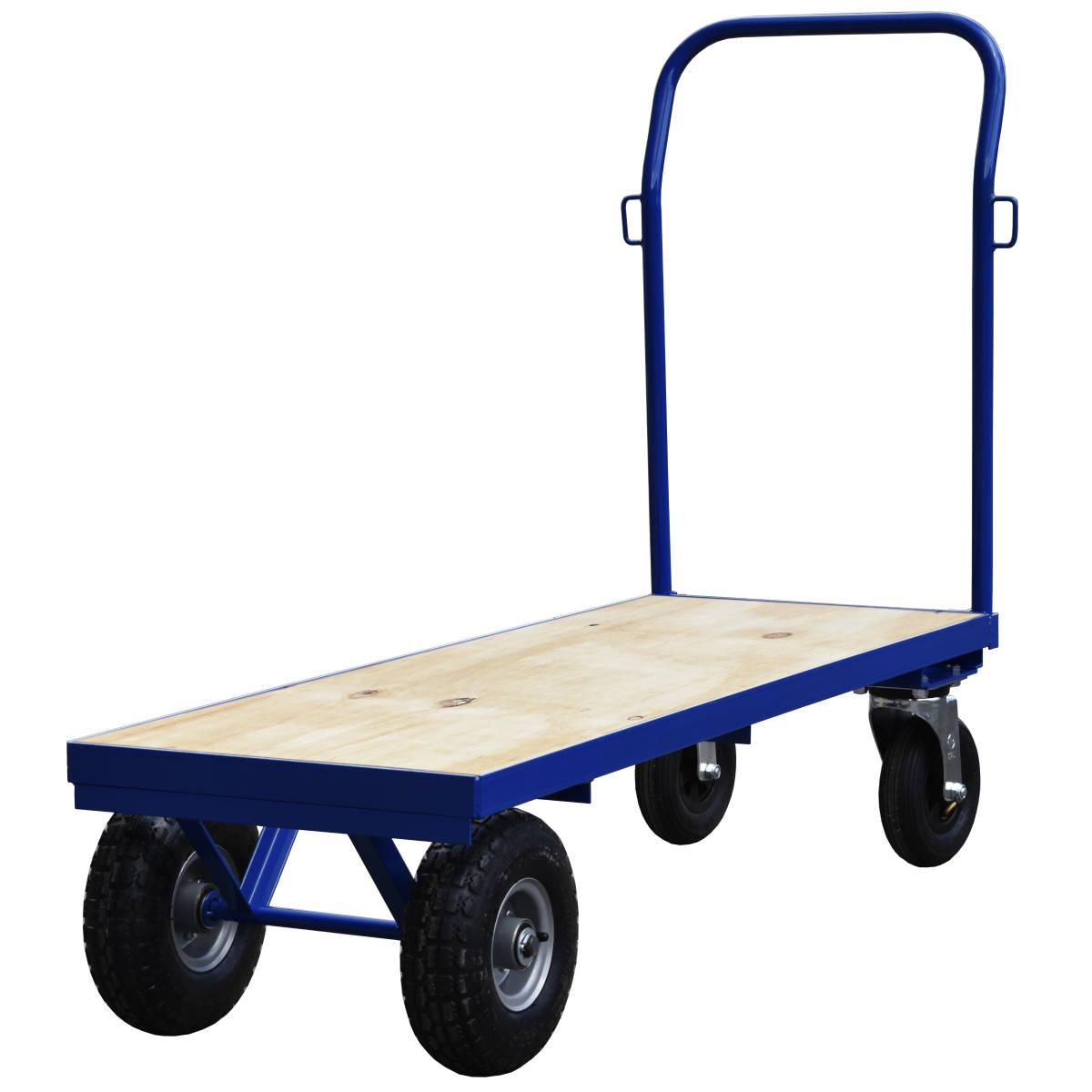

The Rough Terrain Flatbed Trolley platform truck is similar to our standard flatbed range, but is mounted on pneumatic swivel castors at the rear and has a fixed axle with 10 inch (254mm) wheels at the front. the larger wheels give the trolley far more versatility when traversing uneven ground, and also raises the level of the base off the ground. 25mm angle steel cross braces are welded on the underside for increased strength, and then laid with 18mm weather proofed ply. The truck is then epoxy powder coated in Blue RAL5010 and stove baked for a clean, long lasting finish. You can even choose an alternative colour if you wish. We have shown some of the our standard sizes below; however if the sizes don't suit please speak to your account manager for more details. (please note that this will mean that the frames will not be laser cut.)
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com
Rough Terrain Flatbed Trolley
Availability:: Made to Order. Contact the team for lead time.
Specification
| Capacity | 500kg |
| Finish | Industrial Blue (RAL 5010) |
| Overall Height | 1042mm |
| Wheel Configuration | 2x Swivel, 2x Axle Mounted |
| Base Height | 338mm |
| Base Size Options | 1200mm X 600mm, 1500mm X 750mm |
| Base Material | 18mm Weather & Boil Proof Ply / Polypropylene Plastic |
Product Details
The Rough Terrain Flatbed Trolley platform truck is similar to our standard flatbed range, but is mounted on pneumatic swivel castors at the rear and has a fixed axle with 10 inch (254mm) wheels at the front. the larger wheels give the trolley far more versatility when traversing uneven ground, and also raises the level of the base off the ground. 25mm angle steel cross braces are welded on the underside for increased strength, and then laid with 18mm weather proofed ply. The truck is then epoxy powder coated in Blue RAL5010 and stove baked for a clean, long lasting finish. You can even choose an alternative colour if you wish. We have shown some of the our standard sizes below; however if the sizes don't suit please speak to your account manager for more details. (please note that this will mean that the frames will not be laser cut.)
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Bed Size | Stock | Price (Ex. VAT) |
|---|---|---|---|
| HI-FBT-RT-1260 | 1200mm x 600mm | In Stock | |
| HI-FBT-RT-1575 | 1500mm x 750mm | In Stock |
- Capacity:
- 500kg
- Finish:
- Industrial Blue (RAL 5010)
- Overall Height:
- 1042mm
- Wheel Configuration:
- 2x Swivel, 2x Axle Mounted
- Base Height:
- 338mm
- Base Material:
- 18mm Weather & Boil Proof Ply / Polypropylene Plastic
There is no maintenance checklist for this product.
If you have any questions regarding care, please contact us.
