• Overnight or Worldwide Delivery Available on Request
  • Fully Assembled and Ready To Use at No Extra Cost!
  • 5 Year Warranty
  • This Product Can Be Modified To Meet Your Requirements
  • Free Delivery on Orders Over £100 to the UK Mainland.
  • For Multi-Buy Discount or Custom Modifications, Call the Team Today!

Premium Plus

From £466.80 (Inc. VAT)
From £389.00 (Ex. VAT)
(No reviews yet)
Write a Review
Product Code:
Next Day Delivery Available
In Stock
Adding to cart… The item has been added

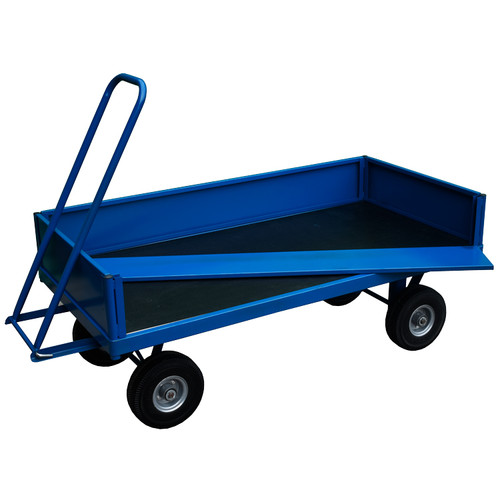

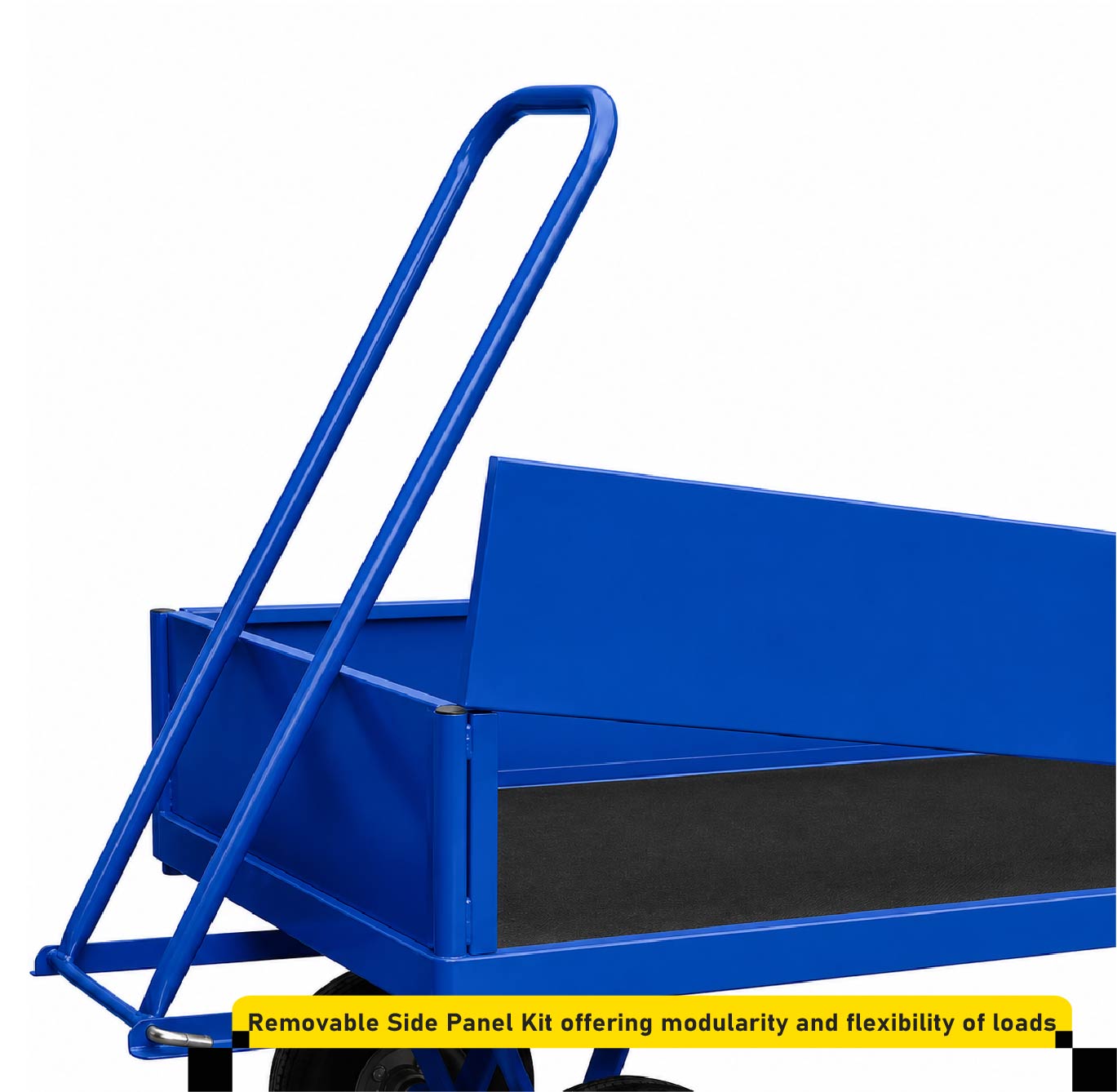

Turntable Trailer with removable sides and a 500kg UDL capacity. Easy to use pull-along trailer for rough terrain, featuring an upgraded non-slip phenolic base and removable sides that enables easier securing of loads.

Heavy Duty Design

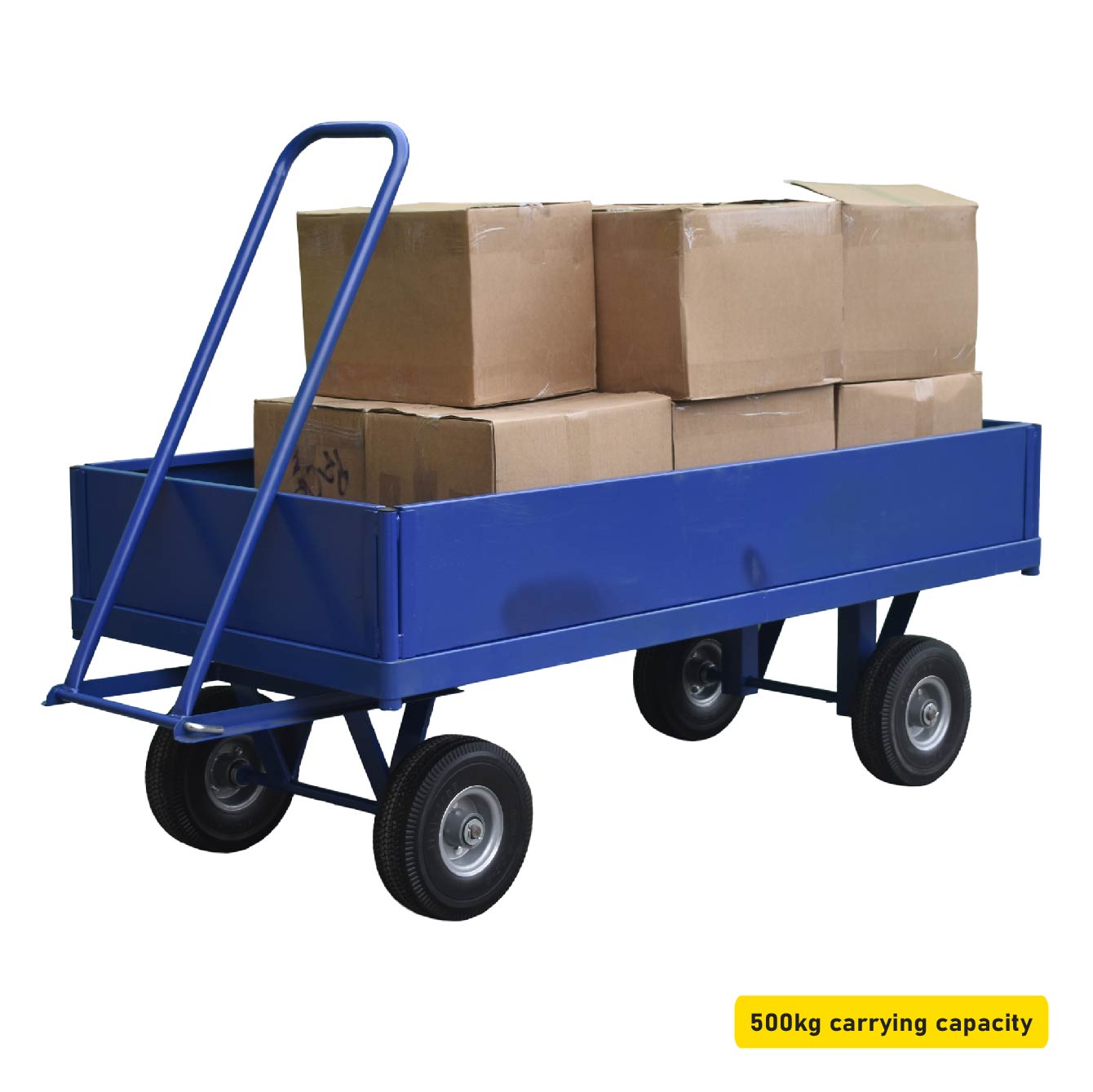

This turntable Trailer has been designed for durability, using an industrial quality chassis fabricated using heavy duty steel box section. Mounted on our own specially designed 10 inch wheels, the trolley can take up to a 500kg load. The wheels themselves have reinforced hubs and bearings as well as uprated tyres, available in either pneumatic or puncture proof polyurethane foam.

Loading Bed Sizes

This trolley is available in either 1200mm x 600, for smaller loads, offering greater manoeuvrability and a lighter frame, or in a 1500mm x 750mm size, allowing bulkier loads. As we manufacture these trolleys, bespoke sizes are available when required.

What is a Turntable Trailer?

A turntable trailer, more commonly known as a turntable trolley, is a trolley with a large "turntable" steering mechanism. The mechanism usually consists of two elements, one fixed to the main chassis, and another fixed to the front wheels that can be rotated using a handle. This turns the front wheels of the trolley allowing the trolley to steer, following the user when pulled like a trailer. Some turntable trailers also have towing hitches, allowing them to be pulled by forklifts in areas such as warehouses, quadbikes on farms across rougher grounds, and on heavier duty models other vehicles. The trolleys often have a large platform bed, bringing them into the category of platform trucks and flatbed trolleys.


Parking Brake:
Part Number:
Wheel Diameter:
Base Height:
Base Size Options:
1200mm X 600mm, 1500mm X 750mm
Side Panel Height:
Side Panel Material:
Sheet Steel
Industrial Blue RAL 5010
The Premium Plus warranty lasts for a period of 5 years, covering all non-wearing parts. Damage caused by vandalism, lost items, water ingress, contamination or improper use is not covered by this warranty. Please see our Warranties Page for more information.

Product Maintenance

Wheels and Castors PASS FAIL
Is the tyre tread condition good?
Are there any tears or cracks in the surface of the tyre?
Wheel Hub/Core
Are nuts & bolts on cores tight?
Are wheel cores in good condition without chips, dents, cracks or buckles?
If steel, is there any rust or corrosion?
Wheel Bearing
Is there any sign of rust on bearings?
Are the bearings straight into the hub?
Is there excess play in the bearing?
Do the wheels roll smoothly?
Are all foreign bodies removed from the bearings?
Pneumatic Tyres
Are the tyres fully all inflated equally and at the recommended tyre pressure?
Is there any wear on valves?
Are all valve caps in place?
Are there any bulges?
Axle Mounted
Are all end caps and split pins in place?
Is there lateral play on the wheels?
Are all foreign bodies removed from the axle?
Are there are any fractures on the axles?
Check there are any fractures on the axles supports?
Grips and Handles PASS FAIL
Is the handle rust fee?
Are there any cracks or visible damage to any welds?
Is there excessive play in the handle?
Is the handle free from any significant dents, or deep scratches?
Are there any bends in the handle not present at point of manufacture?
Are all the correct fixing all in place?
Are all the fixings rust free?
Is there any wear on the fixing holes?
Frame and Chassis PASS FAIL
Is the frame and chassis free from rust and excessive imperfections?
Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust?
Is the frame and chassis free from buckles?
Are there any dents, chips or tears in the frame?
Are all fixings, nuts, bolts, slit pins, washers, roll pins in place?
Base Platform
Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage?
Are the corner spigots present, and firmly secured?
Do the corner spigots still have the retaining tabs on the bottom?
Where fitted, are endcaps still present and undamaged?
Removable Parts PASS FAIL
Corner Posts
Where fitted, are the corner posts secure without excessive wear?
Are the corner posts free from rust, dents or deep scratches?
Are the corner post channels straight, free from rust and free from damage?
Side Panels
Are the side panels still straight?
Is there excessive play in the side panels when fitted?
Are there any dents, signs of rust or deep scratches present in the frame for the side panels?
If using mesh side panels, are there any signs or rust or corrosion?
If using mesh side panels, are there any breaks or damage to the welds?
If using plastic side panels, is the plastic still in good condition without cracks or breaks?
If using plastic side panels, are all rivets still present and free from rust or damage?
Corner Bumpers
Are corner bumpers mounted securely?
Are mounting rivets still intact and without sharps?
Are mounting rivets free of rust?
Product Code Size Current Stock: Price (Ex. VAT)
HI-T500-1260-PP-PN-SPK 1200mm x 600mm In Stock £389.00
HI-T500-1575-PP-PN-SPK 1500mm x 750mm In Stock £489.00
