This Heavy Duty Turntable Trolley with 500kg capacity uses the traditional HIT1000 design and upgrades the standard 18mm weatherproof ply base to a Non-Slip phenolic board base, as well as some small improvements to the turntable head and the handle.
Built To Last
Like everything manufactured by Handle-iT, we try to make our equipment as durable as possible. The chassis as an example uses thick industrial quality steel box section, massively improving resistance to damage when compared with simple angle iron equivalents. The single-piece box section is also rounded at the corners, creating a blunter surface that more evenly spreads the force of an impact when knocks and bumps inevitably happen. This version includes our custom 254mm wheels, with reinforced hubs and upgraded bearings, and available with either pneumatic or puncture proof tyres.
Bespoke Manufacturing
While the standard trolley is available in both 1200mm x 600mm and 1500mm x 750mm sizes, we manufacture these trolleys ourselves and so can make them to any spec you may require, whether that's raising the bed, uprating the capacity, or increasing the size. Need any of those or more? Contact the team today!
+44 (0)1803 875 222
Unit 19, Bulleigh Barton Farm & Commercial Units, Ipplepen, Newton Abbot, Devon, England, TQ12 5UA
sales@handle-it.com
handle-it.com
Turntable Trolley | 500KG Capacity
Availability:: Next Day Delivery Available
Specification
| Capacity | 500kg |
| Base Height | 415mm |
| Wheel Diameter | 254mm |
| Wheel Type | Pneumatic or Polyurethane |
| Bed Length | 1200mm / 1500mm |
| Bed Width | 600mm / 750mm |
| Finish | Industrial Blue RAL 5010 |
| Weight | 43KG - 47KG |
Product Details
This Heavy Duty Turntable Trolley with 500kg capacity uses the traditional HIT1000 design and upgrades the standard 18mm weatherproof ply base to a Non-Slip phenolic board base, as well as some small improvements to the turntable head and the handle.
Built To Last
Like everything manufactured by Handle-iT, we try to make our equipment as durable as possible. The chassis as an example uses thick industrial quality steel box section, massively improving resistance to damage when compared with simple angle iron equivalents. The single-piece box section is also rounded at the corners, creating a blunter surface that more evenly spreads the force of an impact when knocks and bumps inevitably happen. This version includes our custom 254mm wheels, with reinforced hubs and upgraded bearings, and available with either pneumatic or puncture proof tyres.
Bespoke Manufacturing
While the standard trolley is available in both 1200mm x 600mm and 1500mm x 750mm sizes, we manufacture these trolleys ourselves and so can make them to any spec you may require, whether that's raising the bed, uprating the capacity, or increasing the size. Need any of those or more? Contact the team today!
Product Options
Please note: specification and price subject to change. Please check with your sales representative for up-to-date information.
| Product Code | Size | Wheel Type | Stock | Price (Ex. VAT) |
|---|---|---|---|---|

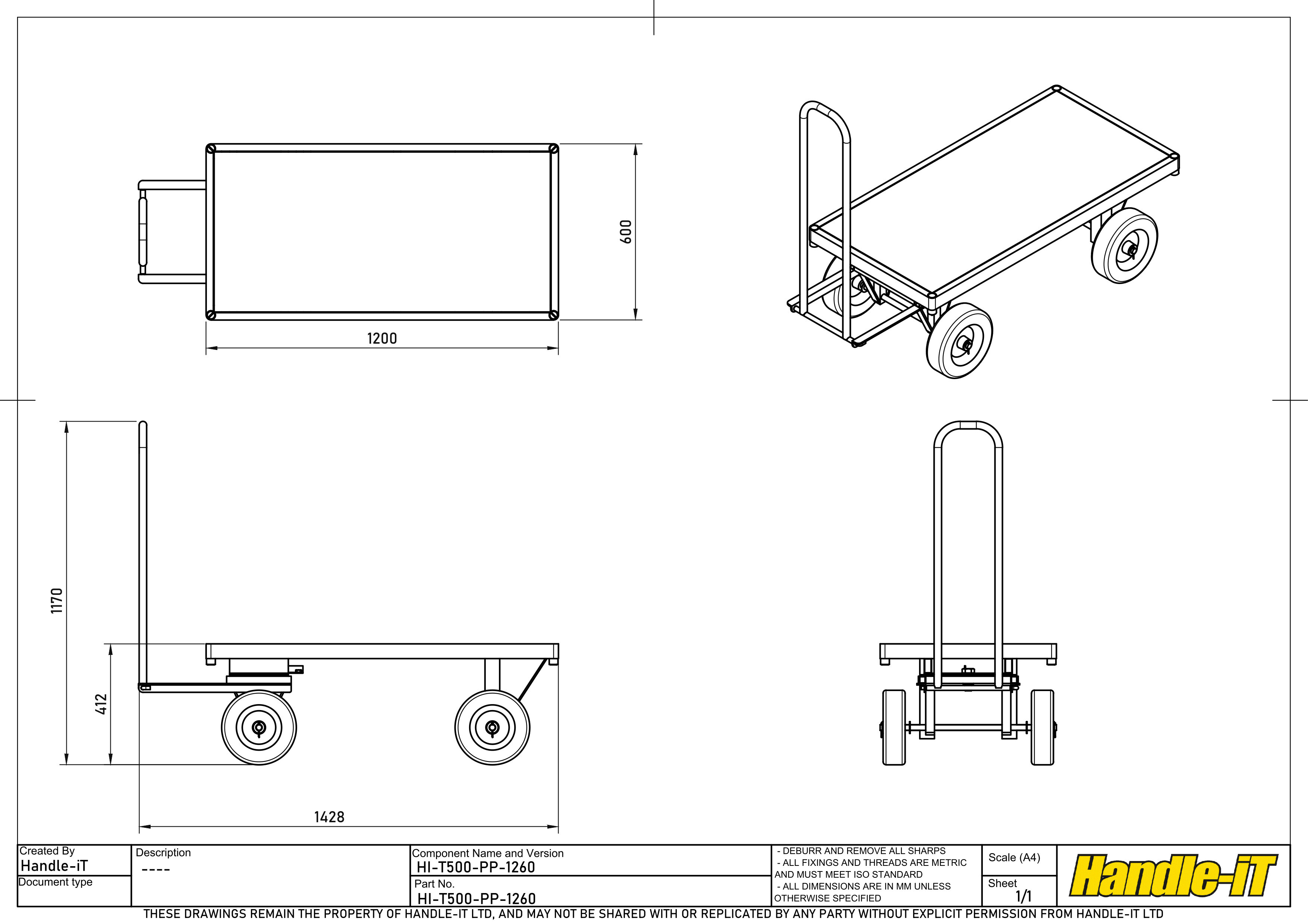

| HI-T500-PP-1260-PN | 1200mm x 600mm | Air-Filled Pneumatic Wheel | In Stock | |
| HI-T500-PP-1260-PU | 1200mm x 600mm | Polyurethane Puncture Proof Wheel | In Stock | |

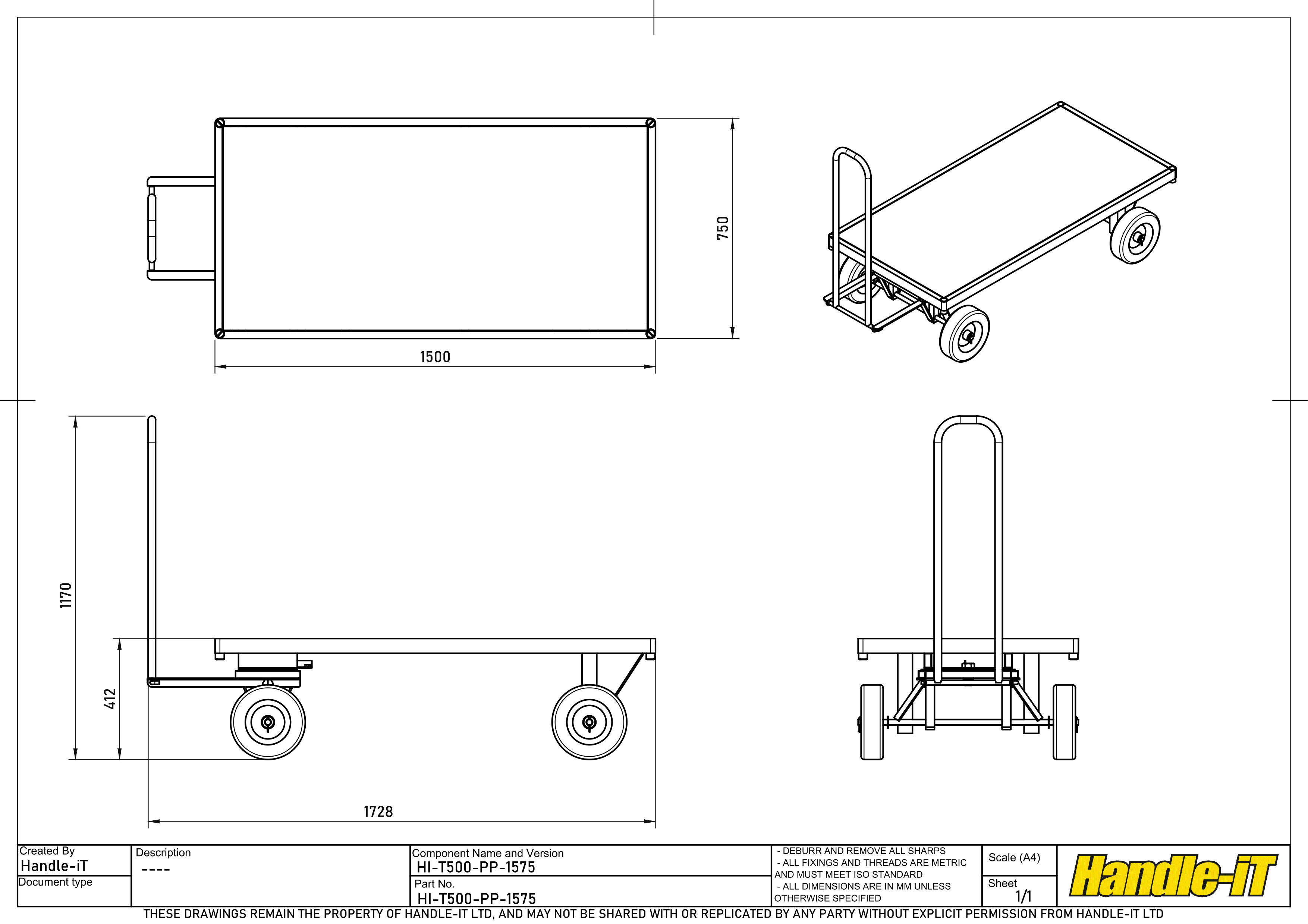

| HI-T500-PP-1575-PN | 1500mm x 750mm | Air-Filled Pneumatic Wheel | In Stock | |
| HI-T500-PP-1575-PU | 1500mm x 750mm | Polyurethane Puncture Proof Wheel | In Stock |
- Capacity:
- 500kg
- Base Height:
- 415mm
- Wheel Diameter:
- 254mm
- Wheel Type:
- Pneumatic or Polyurethane
- Bed Length:
- 1200mm / 1500mm
- Bed Width:
- 600mm / 750mm
- Finish:
- Industrial Blue RAL 5010
- Weight:
- 43KG - 47KG
Product Maintenance
+44 (01803) 424 135
Unit 19, Bulleigh Barton Commercial Units,
Ipplepen, Newton Abbot, Devon, TQ12 5UA
sales@handle-it.com
www.handle-it.com
Product Maintenance Checklist | HI-T500-PP-1260-PN
Turntable Trolley | 500KG Capacity
| Wheels and Castors | PASS | FAIL |
| Tyres | ||
| Is the tyre tread condition good? | ||
| Are there any tears or cracks in the surface of the tyre? | ||
| Wheel Hub/Core | ||
| Are nuts & bolts on cores tight? | ||
| Are wheel cores in good condition without chips, dents, cracks or buckles? | ||
| If steel, is there any rust or corrosion? | ||
| Wheel Bearing | ||
| Is there any sign of rust on bearings? | ||
| Are the bearings straight into the hub? | ||
| Is there excess play in the bearing? | ||
| Do the wheels roll smoothly? | ||
| Are all foreign bodies removed from the bearings? | ||
| Pneumatic Tyres | ||
| Are the tyres fully all inflated equally and at the recommended tyre pressure? | ||
| Is there any wear on valves? | ||
| Are all valve caps in place? | ||
| Are there any bulges? | ||
| Axle Mounted | ||
| Are all end caps and split pins in place? | ||
| Is there lateral play on the wheels? | ||
| Are all foreign bodies removed from the axle? | ||
| Are there are any fractures on the axles? | ||
| Check there are any fractures on the axles supports? |
| Grips and Handles | PASS | FAIL |
| General | ||
| Is the handle rust fee? | ||
| Are there any cracks or visible damage to any welds? | ||
| Is there excessive play in the handle? | ||
| Is the handle free from any significant dents, or deep scratches? | ||
| Are there any bends in the handle not present at point of manufacture? | ||
| Fixings | ||
| Are all the correct fixing all in place? | ||
| Are all the fixings rust free? | ||
| Is there any wear on the fixing holes? |
| Frame and Chassis | PASS | FAIL |
| General | ||
| Is the frame and chassis free from rust and excessive imperfections? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins free from rust? | ||
| Is the frame and chassis free from buckles? | ||
| Are there any dents, chips or tears in the frame? | ||
| Are all fixings, nuts, bolts, slit pins, washers, roll pins in place? | ||
| Base Platform | ||
| Is the fill material (board, plastic, steel) still present and in good condition; free from rust, rot or damage? | ||
| Are the corner spigots present, and firmly secured? | ||
| Do the corner spigots still have the retaining tabs on the bottom? | ||
| Where fitted, are endcaps still present and undamaged? |
| Removable Parts | PASS | FAIL |
| Corner Posts | ||
| Where fitted, are the corner posts secure without excessive wear? | ||
| Are the corner posts free from rust, dents or deep scratches? | ||
| Are the corner post channels straight, free from rust and free from damage? | ||
| Side Panels | ||
| Are the side panels still straight? | ||
| Is there excessive play in the side panels when fitted? | ||
| Are there any dents, signs of rust or deep scratches present in the frame for the side panels? | ||
| If using mesh side panels, are there any signs or rust or corrosion? | ||
| If using mesh side panels, are there any breaks or damage to the welds? | ||
| If using plastic side panels, is the plastic still in good condition without cracks or breaks? | ||
| If using plastic side panels, are all rivets still present and free from rust or damage? |
| Misc | PASS | FAIL |
| Corner Bumpers | ||
| Are corner bumpers mounted securely? | ||
| Are mounting rivets still intact and without sharps? | ||
| Are mounting rivets free of rust? |
| If you have noted any of the above problems or have any other concerns about your equipment, take immediate action and contact your engineer or supervisor. Any of the above problems can be dangerous to the operator and could damage any goods being carried. |
| Please make note of any other issues in the space below: |
| Date of Inspection | Operator Signature |
-
