HI-POW

Was: £4,528.80
Now: £3,772.80 (Inc. VAT)
Was: £3,774.00
Now: £3,144.00 (Ex. VAT)
(No reviews yet)
Write a Review
Product Code:
HI-POW-1260-4BS400
Availability:
Made to Order. Contact the team for lead time.
Selected Finish is
In Stock
Adding to cart… The item has been added

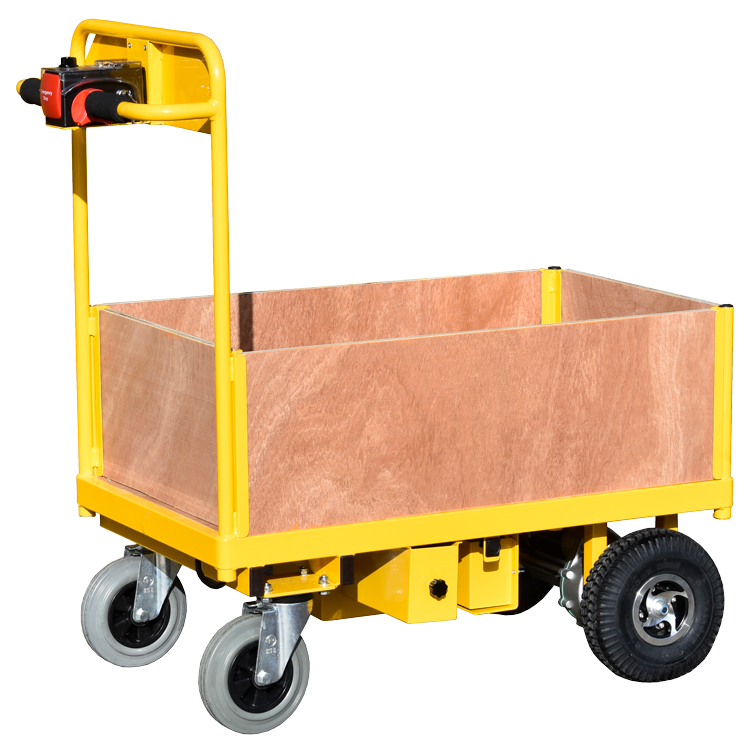

Motorised Platform Truck with Boarded Sides is both kinder to your products and your staff. The 400mm boarded side panel are all totally removable turning this flexible friend into a standard Electric Powered Flatbed Trolley. No need for tools, simply slot in or out the sides and stanchion at will. Design alongside our Frind at SECA GMBH Precision for Health who have now found this an indispensable part of their arsenal, keeping them ahead of their competitors in both efficiency and safety, allowing them to concentrate on what they do best.

User Interface With an ergonomically positioned handle and robust user interface, the butterfly throttle is perfectly positioned to provide 400w of high torque power directly through the transaxle. Intelligent battery indicators give clear LED light instruction to tell you the exact state of your battery charge, with a 20km range between charges this lets you know exactly when you need to return to base for a charge or battery swap. The variable speed adjustment allows you to set the trolley speed directly on the operator controls, allowing the operator to restrict the speed in certain areas. For instance, where there is a high volume of pedestrians to increase safety, and for further control, this parameter can be controlled and set at factory so the speed can be set anywhere between 1 min - 6 max kmph. The heavy-duty industrial steel casing for the user interface is IP54 Rated and then covered with a further moulded Perspex cover. Finally, the anti-trap button perfectly positioned so that if it were to hit the operator, the trolley would automatically brake and go into safety mode so that it couldn’t be moved without reset, stopping any operator getting trapped.

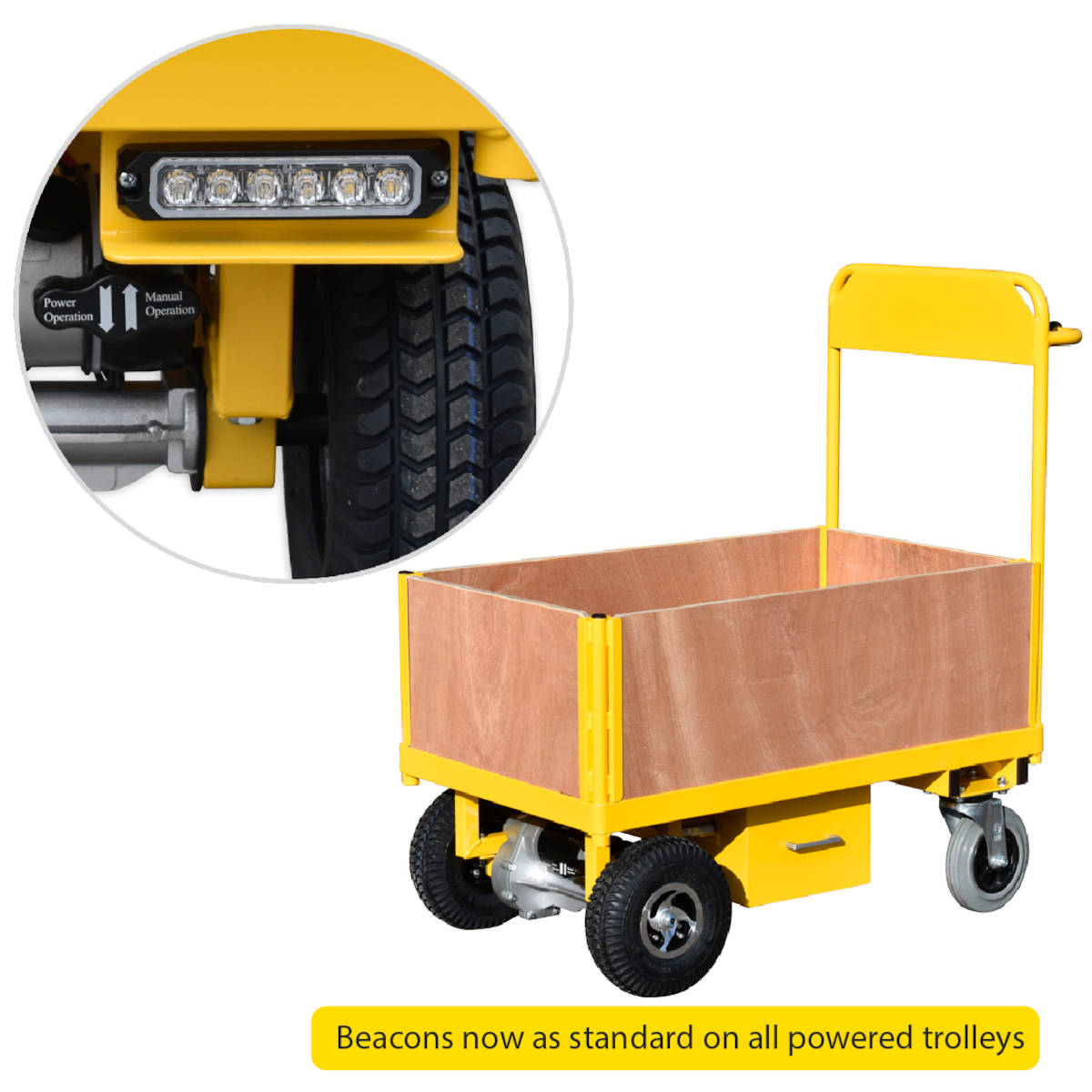

With the boarded surround keeping your product safe and sound, it has 18mm WBP plywood surface, mounted in a picture frame constructed from 25mm x 5mm angle iron, giving a flush surface. The base unit is laser cut from a single piece of box section for additional strength and a curvaceous corner that is kinder to any ankles or walls that they may encounter compared to a mitred frame, and considerably stronger that a pressed sheet steel base. Underside, the battery is fully encased in a 2mm thick steel box, eliminating the risk of damage to any lead acid battery or even worse risking thermal runaway from a pierced lithium battery. The whole unit is controlled by our Curtis Microprocessors which is where the clever bit happens, controlling all the parameters within the trolley; acceleration, max speed, regenerative braking characteristics, amber warning beacons, even the audible warnings. Thyristor speed control system ensures the user is in total control. The more pressure you apply, the faster the trolley will move, reduce the pressure and the speed will reduce accordingly. There is no steeping through power steeps that you would get through a transistor control, smooth all the way.



As the HI-POW powered platform trucks and trolleys is designed and manufactured here in the UK, if you want something a little different, just call the team and we can get the design together for you.



For more information, take the link to our Powered Trolleys info page, or contact the team on 01803 875 222 or at sales@handle-it.com



Powered Trolley Training is now available on-site powered trolley operation training for anywhere in the UK, or take advantage of our training centre based here in the tranquillity of the Southwest. Training for groups of up to 6 people starts at £360 per day, plus travel/accommodation expenses. To arrange training, please contact sales@handle-it.com, or call +44 (0)1803 875 222.

Capacity:
500kg
Overall Height:
1150mm
Handle Height:
1030mm
Base Height:
346mm
Side Panel Height:
400mm
Side Panel Material:
18mm Weather & Boil Proof Ply
Chassis Material:
Steel
Base Length:
1200mm / 1500mm
Base Width:
600mm / 700mm / 800mm
Motor Wheels:
2x 254mm Pneumatic Tyres
Rear Wheels:
2x 200mm Swivel Castors
Chassis Warranty:
5 Years
Electronics Warranty:
12 Months
Finish:
Safety Yellow RAL 1003
The standard Power trolley covers all ‘non-wearing’ parts on the chassis for up-to 5 years, and electronic parts for up to 12 months. Damage caused by vandalism, lost items, water ingress, contamination or improper use is not covered by this warranty. See our Warranties page for more information.

There is no maintenance checklist for this product.
If you have any questions regarding care, please contact us.

/modify-this-product/
Product Code Size: Weight: Current Stock: Price (Ex. VAT)
HI-POW-1260-4BS400 1200mm x 600mm 45kg In Stock £3,144.00
HI-POW-1270-4BS400 1200mm x 700mm 45kg In Stock £3,294.00
HI-POW-1280-4BS400 1200mm x 800mm 45kg In Stock £3,444.00
HI-POW-1560-4BS400 1500mm x 600mm 45kg In Stock £3,494.00
HI-POW-1570-4BS400 1500mm x 700mm 45kg In Stock £3,694.00
HI-POW-1580-4BS400 1500mm x 800mm 45kg In Stock £3,894.00
